AUDAC EPA104 4-kanalno pojačalo snage klase D, 4 x 100W
- Cijena
- 1 €
Šifra oglasa: 26466916
Osnovne informacije
- Lokacija
- Krapinsko-zagorska, Zlatar-Bistrica, Zlatar-Bistrica
- Stanje
- novo
Opis oglasa

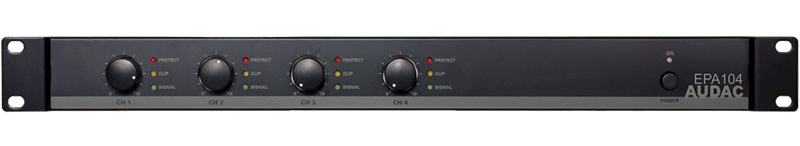

AUDAC EPA104 4-kanalno pojačalo snage klase D 4 x 100W
EPA104 QUAD-CHANNEL CLASS-D AMPLIFIER 4 X 100W - CROSSOVER
This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability.
The quad channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload.

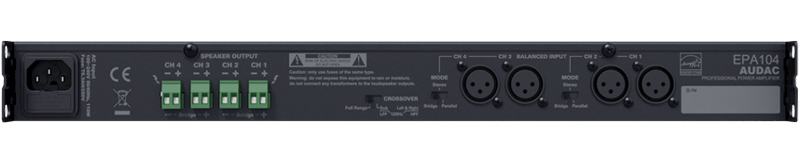

Signal input connections are integrated with balanced XLR connectors. Outputs are connected using terminal block connectors.
SYSTEM SPECIFICATIONS:
Signal / Noise: > 90 dB
THD+N (@ 1 kHz): less than 0.1% (1/2 Rated Power)
Crosstalk (@ 1 kHz): > 70 dB
Technology: Class-D
Protection: DC Short circuit, Over heating, Over load, Signal limiting
Cooling: Convection cooled
Operating temperature: 0° ~ 40° @ 95% Humidity
RMS Power:
@ 4 Ω Stereo: 4 x 100 W
@ 8 Ω Stereo: 4 x 50 W
@ 8 Ω Bridge: 2 x 200 W
Frequency Response (± 3 dB): 20 Hz - 20 kHz
Power Supply: Switching mode 100 ~ 240 V AC / 50 ~ 60 Hz
Consumption: 188 W
Inputs:
Sensitivity (1W/1m): 0 dB (1V RMS)
Impedance: 12 kΩ balanced
Connector: 3-pin XLR female
Outputs:
Connector: 2-pin Euro Terminal Block (Pitch - 5.08 mm)
Power Consumption Standby: 0.8 Watt (~30 sec standby time)
PRODUCT FEATURES:
Dimensions: 482 x 44 x 330 mm (W x H x D)
Weight: 4.5 kg
Mounting: 19”
Unit height: 1 HE
Construction: Steel
Colour: Black
CIJENA NA UPIT
www.promin.hr
POSJETITE NAS U NOVOOTVORENOJ PRODAVAONICI U ULICI KRALJA TOMISLAVA 11, ZAGREB
Radno vrijeme: od ponedjeljka do petka 09-17 sati
EPA104 QUAD-CHANNEL CLASS-D AMPLIFIER 4 X 100W - CROSSOVER
This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability.
The quad channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload.
Signal input connections are integrated with balanced XLR connectors. Outputs are connected using terminal block connectors.
SYSTEM SPECIFICATIONS:
Signal / Noise: > 90 dB
THD+N (@ 1 kHz): less than 0.1% (1/2 Rated Power)
Crosstalk (@ 1 kHz): > 70 dB
Technology: Class-D
Protection: DC Short circuit, Over heating, Over load, Signal limiting
Cooling: Convection cooled
Operating temperature: 0° ~ 40° @ 95% Humidity
RMS Power:
@ 4 Ω Stereo: 4 x 100 W
@ 8 Ω Stereo: 4 x 50 W
@ 8 Ω Bridge: 2 x 200 W
Frequency Response (± 3 dB): 20 Hz - 20 kHz
Power Supply: Switching mode 100 ~ 240 V AC / 50 ~ 60 Hz
Consumption: 188 W
Inputs:
Sensitivity (1W/1m): 0 dB (1V RMS)
Impedance: 12 kΩ balanced
Connector: 3-pin XLR female
Outputs:
Connector: 2-pin Euro Terminal Block (Pitch - 5.08 mm)
Power Consumption Standby: 0.8 Watt (~30 sec standby time)
PRODUCT FEATURES:
Dimensions: 482 x 44 x 330 mm (W x H x D)
Weight: 4.5 kg
Mounting: 19”
Unit height: 1 HE
Construction: Steel
Colour: Black
CIJENA NA UPIT
www.promin.hr
POSJETITE NAS U NOVOOTVORENOJ PRODAVAONICI U ULICI KRALJA TOMISLAVA 11, ZAGREB
Radno vrijeme: od ponedjeljka do petka 09-17 sati
