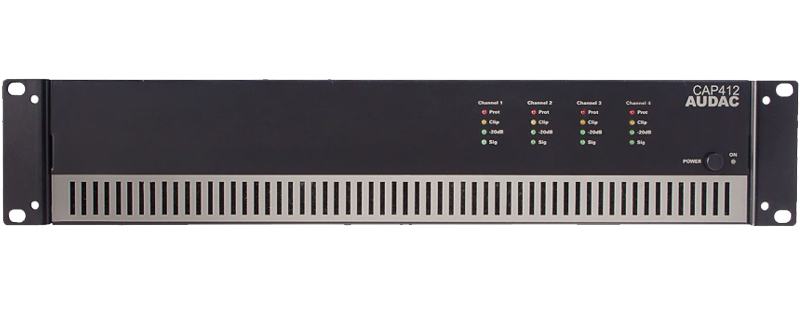

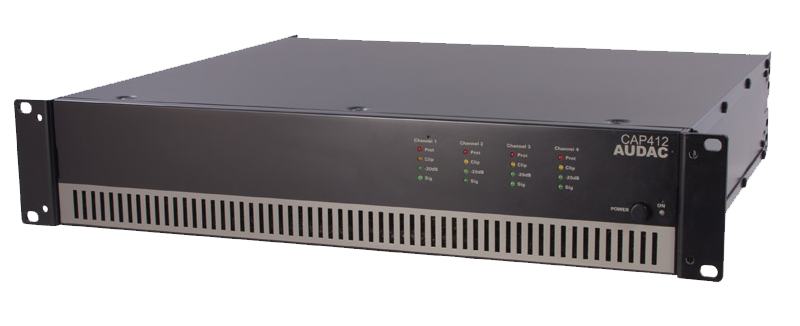

AUDAC CAP412 pojačalo snage

AUDAC CAP412 pojačalo snage

CAP412 is a professional four channel 100V power amplifier which is capable of providing 120 Watt to each of the four separate output channels. This creates a great flexibility and new possibilities for installed Multi-Zone audio distribution systems.

It is designed as a no-nonsense amplifier with only the necessary controls and connections, which creates great simplicity in use and installation. Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications, and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers.

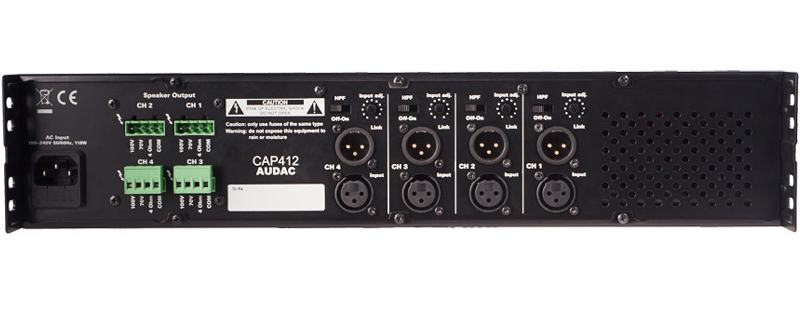

Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.

SYSTEM SPECIFICATIONS:
RMS Power: 4 x 120 Watt
Frequency response: 50 Hz - 22 kHz
Signal to noise ratio: > 100 dB
THD+N by 1 kHz (1/2 Rated Power): < 0.3%
Crosstalk: < 80 dB
Technology: Class-D
Power supply: Switching mode
Power supply range: 100 ~ 240 V AC / 50 ~ 60 Hz
Input Sensitivity: -0.5 dB ~ 10.5 dB
Input Impedance: 10 k Ohm balanced
Output Voltage / Impedance: 100 V (83 Ohm); 70 V (42 Ohm); 4 Ohm
Common mode rejection ratio: 70 dB
Protection: DC Short-circuit, Over heating, Over load, Signal limiting
Cooling system: Temperature controlled FAN
Operating temperature: 0° ~ 40° at 95% Humidity
Connectors: Input - Female XLR with Male Linkthrough; Output - 4-Pin Terminal block (5.08 mm pitch)

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 482 x 88 x 420 mm
Weight net: 14.8 kg
Mounting: 19”
Unit height: 2 HU
Construction: Steel
Colour: Black

SHIPPING & ORDERING:
Packaging: Carton box
Shipping weight and volume: 16.6 kg - 0.046 m3
Accessories included: 4 x 4-Pin Terminal block Output con.
Optional accessories: CPE100 Rack mount handles
