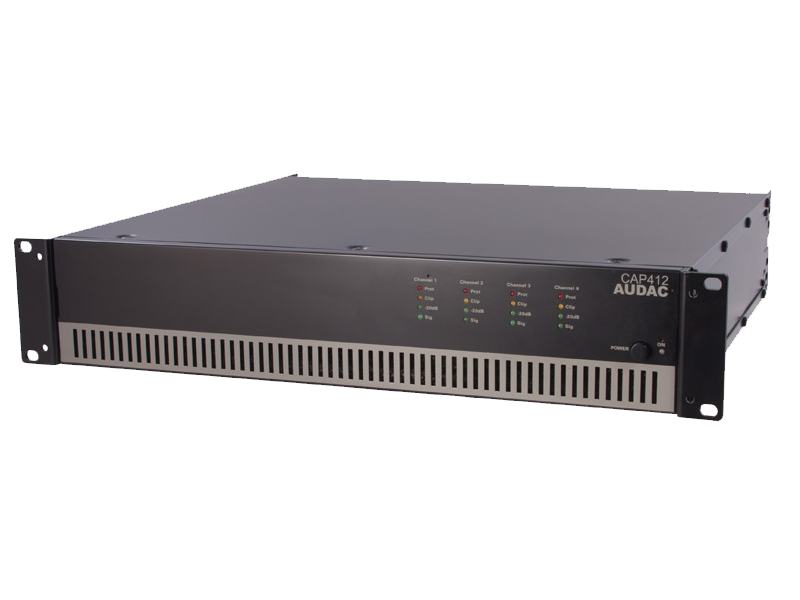

Audac CAP412 - 4-kanalno 100V pojačalo

Four Channel 100V Power Amplifier. 120 Watt output power. 100V, 70V and 4 Ohm outputs. Class-D Amplifier Technology. XLR Signal Linkthrough. Advanced Protection circuit. Temperature controlled fan. High pass filter switch & signal limiter. 19” Mounting device (2 HU)

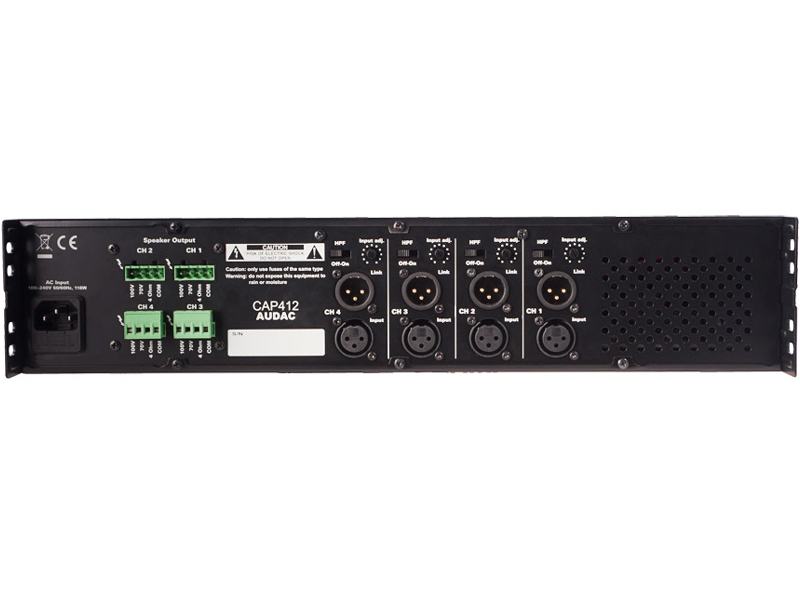

Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications, and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers. Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.

SYSTEM SPECIFICATIONS:
RMS Power: 4 x 120 Watt
Frequency response: 50 Hz - 22 kHz
Signal to noise ratio: > 100 dB
THD+N by 1 kHz (1/2 Rated Power): < 0.3%
Crosstalk: < 80 dB
Technology: Class-D
Power supply: Switching mode
Power supply range: 100 ~ 240 V AC / 50 ~ 60 Hz
Input Sensitivity: -0.5 dB ~ 10.5 dB
Input Impedance: 10 k Ohm balanced
Output Voltage / Impedance: 100 V (83 Ohm); 70 V (42 Ohm); 4 Ohm
Common mode rejection ratio: 70 dB
Protection: DC Short-circuit, Over heating, Over load, Signal limiting
Cooling system: Temperature controlled FAN
Operating temperature: 0° ~ 40° at 95% Humidity
Connectors: Input - Female XLR with Male Linkthrough; Output - 4-Pin Terminal block (5.08 mm pitch)


CIJENA NA UPIT
