PATRIOT Extreme Performance 2GB, GIGABYTE GA-EP31-DS3L

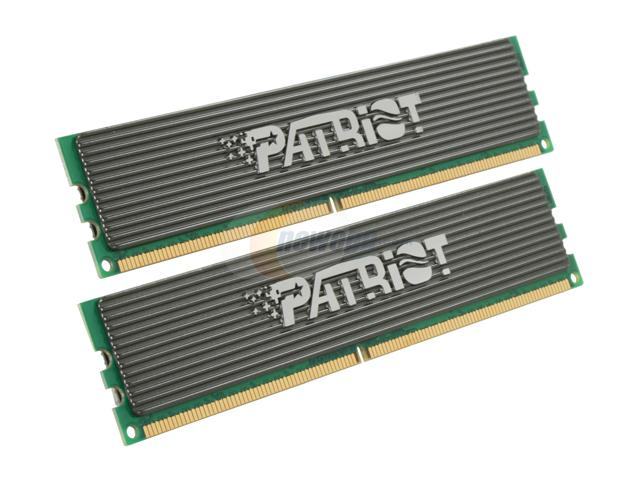

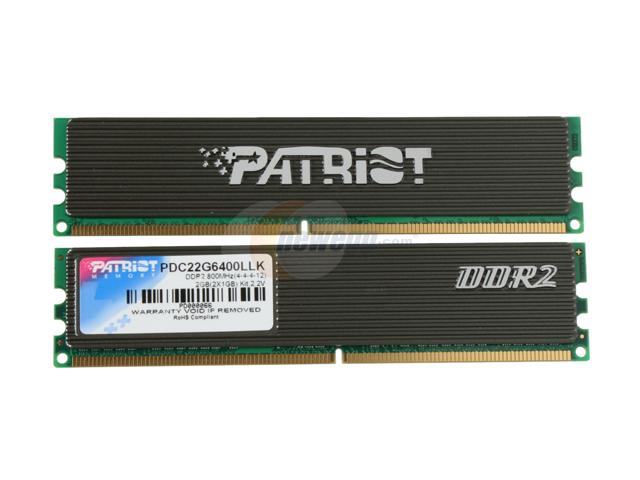

Patriot Extreme Performance 2GB (2 x 1GB) 240-Pin DDR2 SDRAM DDR2 800 (PC2 6400) Dual Channel Kit Desktop Memory Model PDC22G6400LLK

Brand: Patriot Dual Channel Kit
Series: Extreme Performance
Model: PDC22G6400LLK
Type: 240-Pin DDR2 SDRAM
Capacity: 2GB (2 x 1GB)
Speed: DDR2 800 (PC2 6400)
Cas Latency: 4
Timing: 4-4-4-12
Voltage: 2.2V
Multi-channel Kit
Heat Spreader: Yes
Features:
EPP (Enhanced Performance Profiles) Ready
Patriot Aluminum Bladed Heat Shield Technology to improve module stability
100% Tested and Verified
RoHS Compliant
SLI-Ready for 2GB Kit Modules
Tested and compatible with Intel? P35, P45, X38, X48 and NVIDIA 680i, and 780i chipsets
Recommend Use
High Performance or Gaming Memory

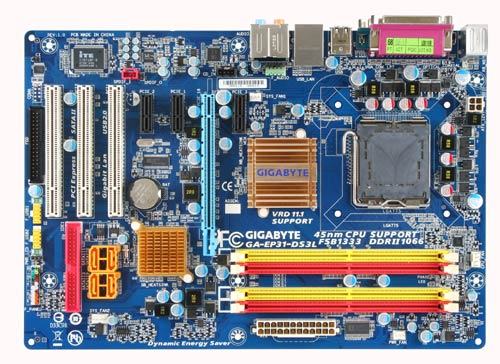

GIGABYTE GA-EP31-DS3L
CPU
Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/ Intel® Core™ 2 Duo processor/ Intel Pentium processor Extreme Edition/ Intel® Pentium D processor/ Intel® Pentium 4 processor Extreme Edition/ Intel® Pentium 4 processor/ Intel® Celeron processor in the LGA 775 package, Support for Intel Hyper-Threading Technology, L2 cache varies with CPU

Front Side Bus : 1600(O.C.)/1333/1066/800 MHz FSB
Chipset North Bridge: Intel® P31 Express Chipset, South Bridge: Intel® ICH7
Memory: 4 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory,
Dual channel memory architecture,
Support for DDR2 1066/800/667 MHz memory modules

Audio
Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In

LAN
RTL 8111B chip (10/100/1000 Mbit

Expansion Slots
1 x PCI Express x16 slot
3 x PCI Express x1 slots
3 x PCI slots

Storage Interface
1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Form Factor
ATX Form Factor; 30.5cm x 21.0cm
