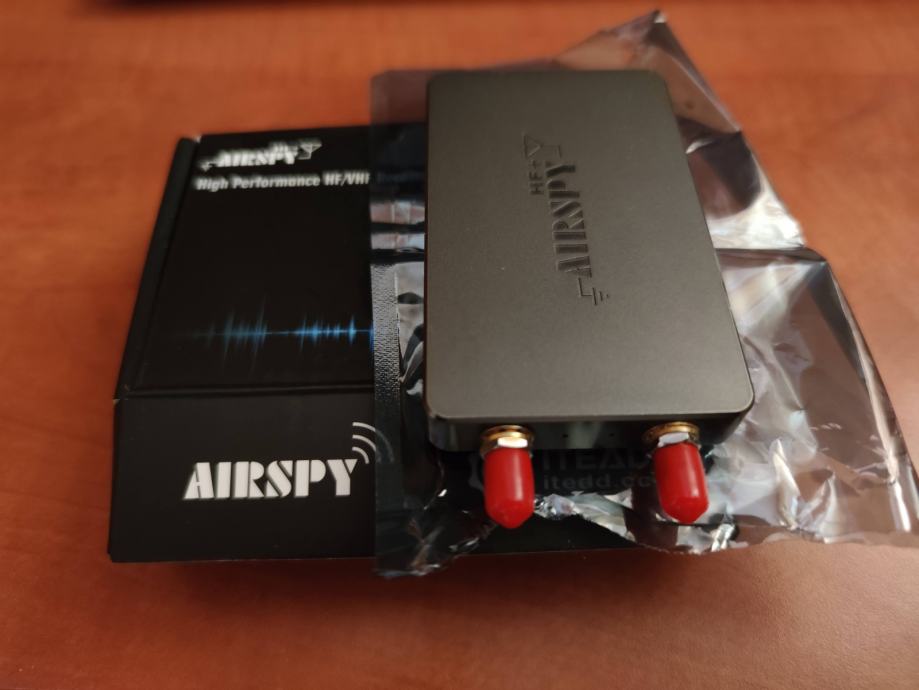

SDR prijemnik Airspy HF+ Dual port

SDR prijemnik izvrsnih karakteristika, HF + VHF, 18 bitna rezolucija, najnoviji firmware R3.0.7, prikaz spektra 912 kHz, odvojeni antenski ulazi za HF i VHF, vrlo malih dimenzija, kupljen direktno od proizvođača ITEAD, original kutija.
Link proizvođača: https://airspy.com/airspy-hf-plus/

Technical specifications:
HF coverage between 9 kHz .. 31 MHz
VHF coverage between 60 .. 260 MHz
-140.0 dBm (0.02 µV / 50 ohms at 15MHz) MDS Typ. at 500Hz bandwidth in HF
-141.5 dBm MDS Typ. at 500 Hz bandwidth in FM Broadcast Band (60 – 108 MHz)
-142.5 dBm MDS Typ. at 500 Hz bandwidth in VHF Aviation Band (118 – 136 MHz)
-140.5 dBm MDS Typ. at 500 Hz bandwidth in VHF Commercial Band (136 – 174 MHz)
-140.0 dBm MDS Typ. at 500 Hz bandwidth in the upper VHF Band (> 174 MHz)
+15 dBm IIP3 on HF at maximum gain
+13 dBm IIP3 on VHF at maximum gain
110 dB blocking dynamic range (BDR) in HF
95 dB blocking dynamic range (BDR) in VHF
150+ dB combined selectivity (hardware + software)
120 dB Image Rejection (software)
Up to 660 kHz alias and image free output for 768 ksps IQ
18 bit Embedded Digital Down Converter (DDC)
22 bit Resolution at 3 kHz channel using State of the Art DDC (SDR# and SDR-Console)
+10 dBm Maximum RF input
0.5 ppm high precision, low phase noise clock
1 PPB frequency adjustment capability
Very low phase noise PLL (-110 dBc/Hz @ 1kHz separation @ 100 MHz)
Best Noise reduction of the market using state of the art algorithms
2 x High Dynamic Range Sigma Delta ADCs @ up to 36 MSPS
No Silicon RF switch to introduce IMD in the HF path
Routable RF inputs with simple modification
Wide Band RF filter bank
Tracking RF filters
Sharp IF filters with 0.1 dB ripple
Smart AGC with real time optimization of the gain distribution
All RF inputs are matched to 50 ohms
4 x Programmable GPIO’s
No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10
Industrial Operating Temperature: -45°C to 85°C
Small Form Factor: 55 x 90 x 12 mm
