BOSS BR-800 8 kanalni digitalni snimač

Prodajem BOSS BR-800 8 kanalni digitalni snimač, 4 kanala simultano snimanje, Phantom power, stereo ritam track playback, Drum machine, gitarski, bas i vokalni efekti, Song Sketch recording, USB interface, DAW controler, stereo kondenzatorski mikrofon, u potpuno ispravnom stanju, malo korišten, kao novo.

Uz snimač dolazi originalno napajanje i dva footswitcha...

Cijena je fiksna, bez zamjena. Osobno preuzimanje, eventualno dostava njuškalom...

Ostali upiti na SMS




karakteristike:

BOSS continues its top-selling tradition of portable, affordable multi-trackers with the new BR-800 — a battery-powered
studio to go. The sleek new design is made possible by touch-sensor switches and SD-card recording media. Up to four tracks
can be recorded simultaneously with eight tracks of simultaneous playback plus an additional stereo track dedicated to the
built-in rhythm generator. The BR-800’s powerful onboard effects processor includes GT-10/10B effects, VE-20 vocal effects
and harmonies, and COSM-based acoustic-guitar body modeling. EZ Recording feature interactively guides through the
recording process. A stereo microphone is also built into the BR-800 for instant “Song Sketch” recording. No matter where
you roam, you’ll never miss a moment of musical inspiration with the BR-800.


Number of Tracks
Track: 8
Simultaneously recording track: 4
V-Track: 64 (8 V-Tracks per each Track)
Sample Rate 44.1 kHz
Frequency Response 20 Hz to 20 kHz (+1/-3 dB)
AD Conversion 24-bit, 24-bit + AF method (GUITAR/BASS input)
*AF (Adaptive Focus) method is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio
of the A/D and D/A converters. DA Conversion 24-bit
Compatible Card Capacity SD Card: 1 GB to 2 GB, SDHC Card: 4 GB to 32 GB
Data tzpe: HiFi (MT2) Roland/BOSS original format 16 bit linear stereo WAV format(*) *SONG SKETCH only
Recording Time (for multi-track recording) *Conversion in one track
1 GB: 8 hours 40 minutes
2 GB: 17 hours
4 GB: 34 hours
8 GB: 68 hours
16 GB: 136 hours
32 GB: 272 hours
* The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs
that were created.
* The above number is the total for all the tracks that are used. If each of the eight tracks contain an equal amount of
data, the length of the resulting song will be approximately 1/8 of the above.
Recording Time
(for SONG SKETCH)
*Stereo recording
1 GB: 90 minutes
2 GB: 3 hours
4 GB: 6 hours
8 GB: 12 hours
16 GB: 24 hours
32 GB: 48 hours
Nominal Input Level
GUITAR/BASS jack: -10 dBu
INPUT 1 to 4 jacks: -50 to -20 dBu (XLR type), -26 to +4 dBu (1/4" TRS phone type)
LINE IN jack: -10 dBu
Input Impedance
GUITAR/BASS jack: 1 M ohm
INPUT 1 to 4 jacks: 3k ohms (XLR type), 47 k ohms (1/4" TRS phone type)
LINE IN jack: 10 k ohms
Nominal Output Level
LINE OUT jacks: -10 dBu
Output Impedance
LINE OUT jacks: 1 k ohm
Recommended Load Impedance
LINE OUT jacks: 20 k ohms or greater
PHONES jack: 32 to 100 ohms
Residual Noise Level
LINE OUT jacks:-85 dBu or less (IHF-A Typ.)
Display
128 x 64 dots (Backlit LCD)
Connectors

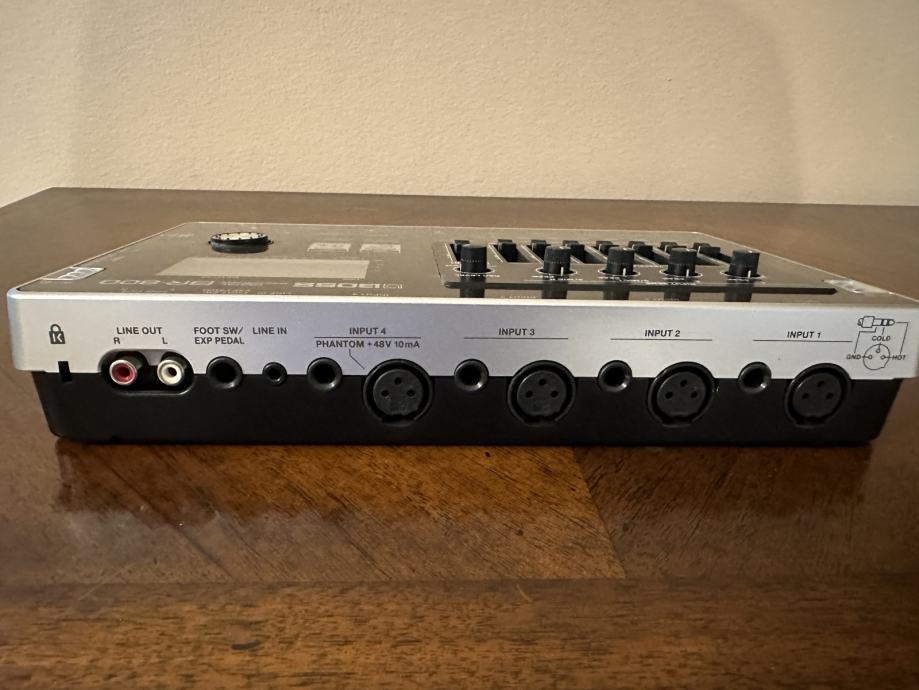

GUITAR/BASS jack (1/4" phone type), INPUT 1 to 4 jacks (XLR type / 1/4" TRS phone type), LINE IN jack (Stereo
miniature phone type), FOOT SW/EXP PEDAL (1/4" TRS phone type), LINE OUT jacks (RCA phono type),
PHONES jack (Stereo 1/4" phone type), USB connector, DC IN jack
USB Function
Audio Input/Output, MIDI Input/Output, File Transfer, BUS Power operation
Power Supply
DC 9V: AC Adaptor
Size AA Dry battery x 6 (alkaline batteries recommended)
USB Bus Power
Current Draw
280 mA (DC IN)
480 mA (USB Bus Power)
Battery Life for Continuous Use
Approximately 5.5 hours
(Alkaline dry batteries, with continuous playback of 8 tracks, phantom power off)
* May vary according to usage conditions, phantom power used, batteries used, and type of SD card used.

Options
Footswitch: FS-5U, Pedal Switch: DP-2 (Roland), Expression Pedal: EV-5 (Roland), FV-500L/FV-500H
Size and Weight
Width 289 mm
Depth 184 mm
Height 58 mm
Weight 890 g
