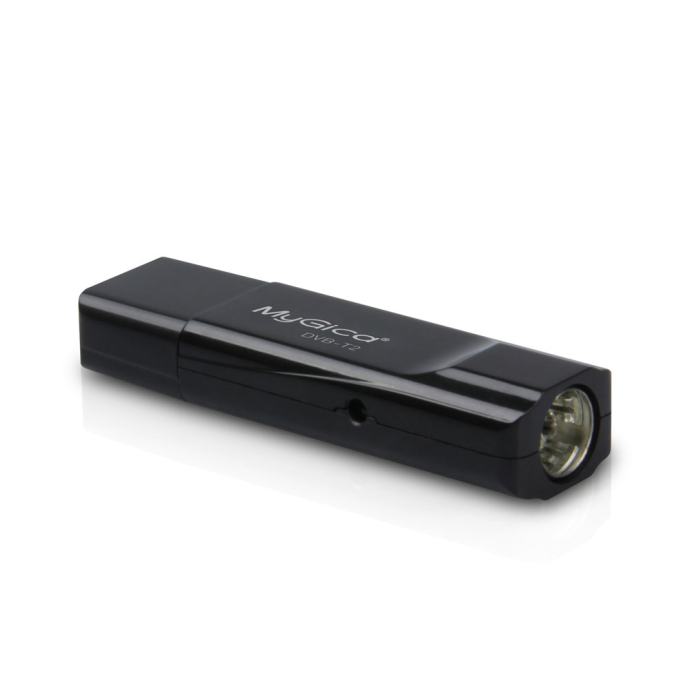

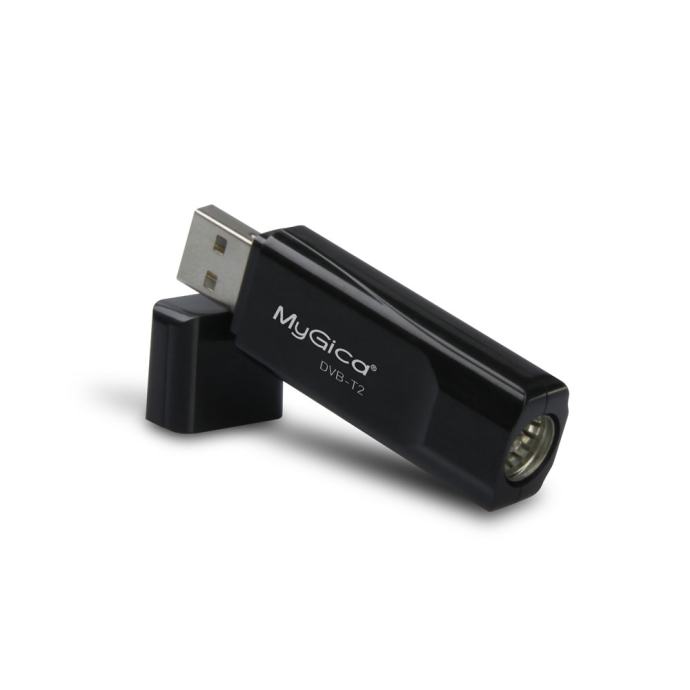

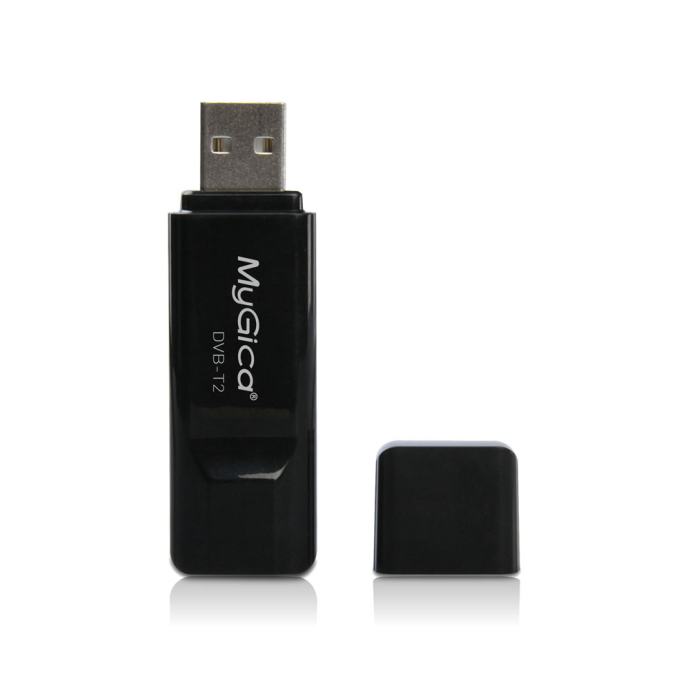

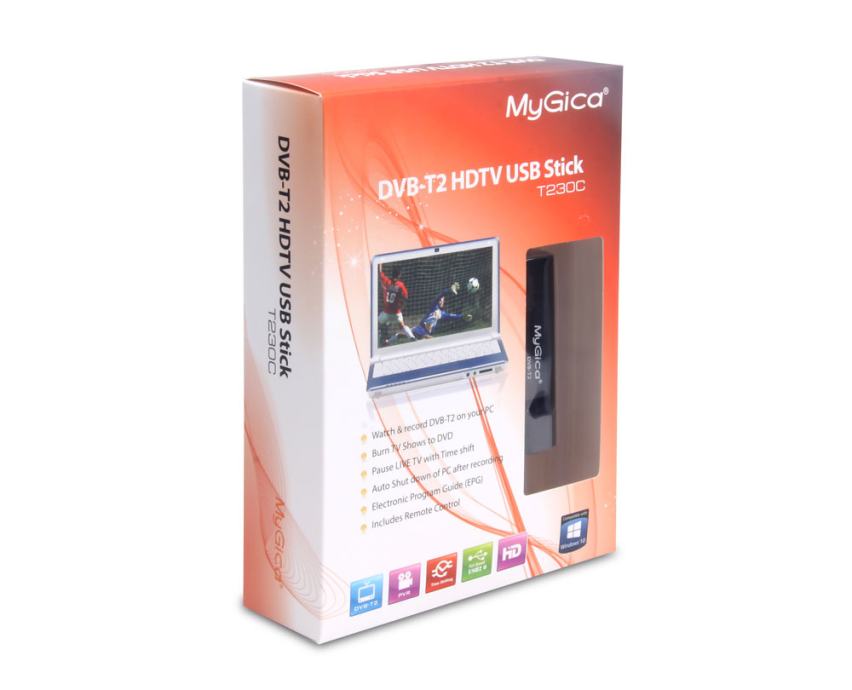

GENIATECH MyGica USB TV tuner T230C

USB TV tuner DVB-T, DVB-T2, DVB-C, HEVC.

Tech specs

Specification
Input Terminal:75 Ohm Digital TV Antenna Input
Receive FrequencyTV 48.25 ~ 863.25MHz
Punctured Codes1/2, 2/3, 3/4 4/5, 5/6 and 7/8
Bandwidth:1.7/5/6/7/8/10MHz
Max No. Section filtering:32PIDS
Engine:Software
Stream capture:PES & TS A/V Format
Video Format:mpg-II Main Profile & Main Level/H.264/H.265 HEVC
Audio Format:mpg-II Audio Layer I & II/AAC

Full compliance with
DVB-T:– EN 300 744 2K to 32K FFT Size
– Punctured Codes: 1/2, 2/3, 3/4 4/5, 5/6 and 7/8
DVB-T2:– EN 302 755(V1.1.1, V1.2.1, V1.3.1)
– Bandwidth: 1.7/5/6/7/8/10MHz
– FFT mode:1K 2K 4K 8K 16K 32K
– Guard interval:1/128 1/32 1/16 1/8 1/4 19/128 19/256
– Modulation:BPSK OPSK 16-QAM 64-QAM 256-QAM
– Pilot pattern:PP1-PP8
– APPR:L1＆P2 L1＆ACE L1＆TR L1,ACE＆P2
– Code Rate:1/2 2/3 3/4 4/5 5/6
– FEC:LDPC 16K/64K

System Requirements:– Support Windows xp/vista/7/8/10 OS
– P4 2.0 GHz CPU or above for HDTV
– 512MB RAM or above for HDTV
– VGA card with at least 32MB Memory for HDTV
– Sound Card or On Board Sound Chip
– One Free USB 2.0 Port(not compatible with USB1.1)
– Microsoft Direct X9.0 or above
– Microsoft media Player 9.0 or above
– UHF/VHF Antenna for DVB-T2 Terrestrial TV

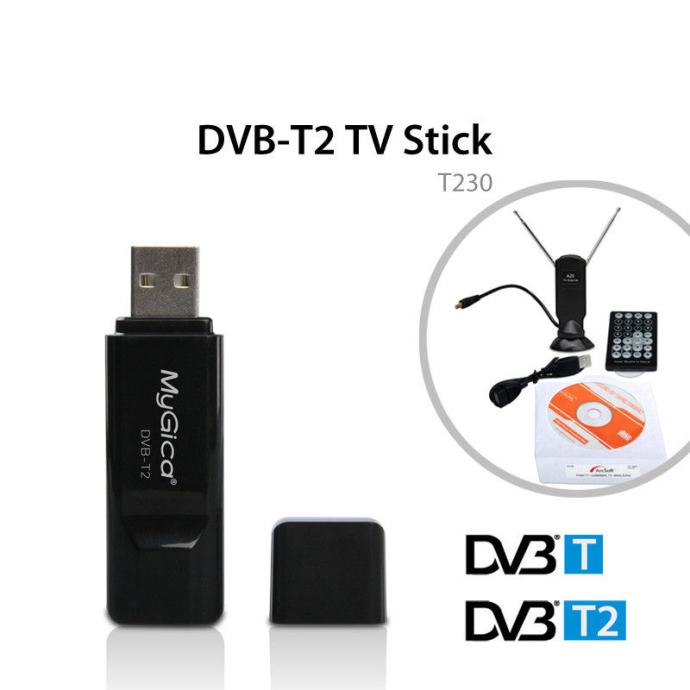

Package Contents:– HDTV USB TV Stick
– Remote Control
– Quick Installation Guide
– DVB-T2 Antenna
– Software CD (Driver,application software and PDF manual)
– One Free USB 2.0 Port(not compatible with USB1.1)
– USB Extension Cable
