NAVICOM Marine RT750 V2 GPS VHF stanica - Pixma centar Trogir

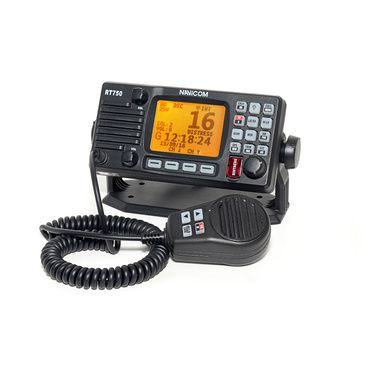

NAVICOM RT 750 V2 AIS with ASN/DSC, Compatible NMEA 0183, waterproof IPx7, GPS Reciver with MMSI (distress)

DETAILED FEATURES
NAVICOM RT 750 AIS. Install a quality ASN & AIS fixed VHF radio on your deep-sea or flagship sailboat, the AIS feature will allow you to observe cargo ships & other nearby vessels for major crossings. Integrated GPS antenna.

As a guarantee of safety at sea, the installation of a fixed VHF is essential & mandatory for all navigation beyond 6 miles of a shelter. Record your MMSI number on the marine VHF, then you can use the ASN - DSC function in English - to send distress messages. An electronic instrument on board, this VHF will be installed in the square of the boat, near the helm station or chart table. It is possible to consider an outdoor mounting on open shell thanks to the IPx7 waterproof screen. This nautical equipment has the AIS function with built-in receiver, so you can locate other vessels with the same device (cargo, ferry etc. ..) for a secure navigation in reduced visibility. ASN electronic equipment for boat & speedboat.

TECHNOLOGY & HIGH POINTS OF FIXED VHF NAVICOM RT 750 AIS WITH ASN / DSC:
DSC - ASN function: Send a distress message by pressing the "DISTRESS" button for 5 seconds, you can select the type of damage (waterway, fire etc ..) & rescue at sea then receive your GPS position & vessel information (MMSI number) for even faster intervention.


AIS technology: The AIS detects nearby ships transmitting on the AIS network. This one uses the VHF frequencies and allows to know the position, speed & heading of the other boats to avoid the collision. This marine VHF has a built-in receiver, so you do not need to install an extra antenna! Return AIS information to view on your multifunction display.

Tehnical Specifications:
DSC Class: Class D
ATIS mode: Yes
Transmiter Power: 25W(Hi)/1W(Lo)
Current drain: 6A (Hi) / 1A (Lo)
External speaker: Yes, 5W - 4 Ohms
Dimensions: 180 x 91 x 55mm (ultra slim line)
Weight: 970g
Normal working voltage: 13,8V

MOB: "Man Over Board" or Man overboard, press the MOB button to record the GPS position immediately if a crewman falls overboard.

Large LCD Display: Large, 8-level backlit display for easy reading of data.

NMEA 0183 compatible & GPS: Connect your GPS to the marine VHF for sending position during digital selective calling.

Waterproof IPX7: Dust resistant & 30 minutes immersion at 1 meter depth.

Triple standby: Stay in standby on 3 channels simultaneously.

TECHNICAL CHARACTERISTICS OF VHF NAV NAVICOM RT 750 ASN & AIS:
Speaker and / or Megaphone output
NMEA 0183 compatible
Programmable ATIS for river navigation
Power 1 to 25 W for an emission up to 25 miles
