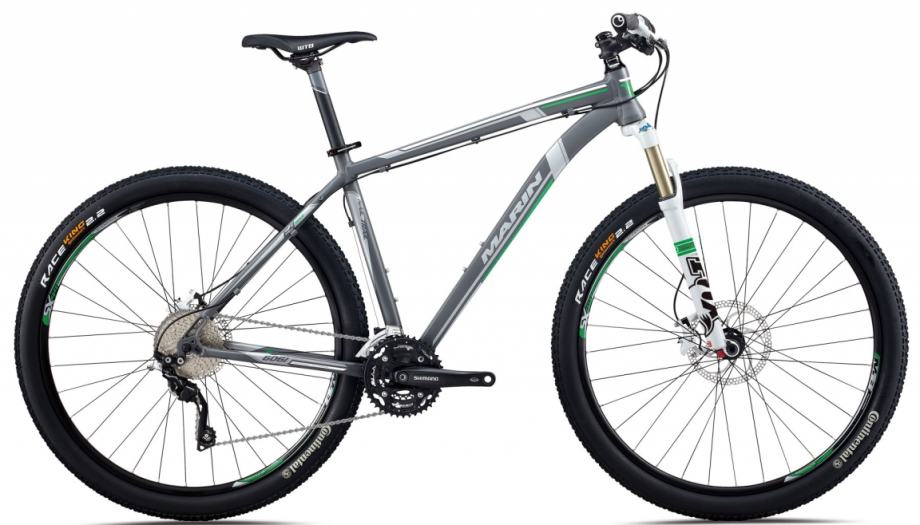

Bicikl Marin Nail Trail 29er

Model Name Nail Trail 29er
Model Category Mountain HT
Model Series 29er
Model Number A13-269-1F
Sizes 15-17-19-20.5-22
Frame 6061 Aluminum 29er, Triple Butted Hydro-Edge II Top and Down Tubes, Double Butted E4 Anti-Flex Seat and Chain Stays
Front Suspension Fox 32 Float Evolution CTD 29er, 100mm Travel, Tapered Steer Tube and 15QR Through Axle Dropouts with 3 Position Compression Damper Adjustment and Rebound Damping Adjustment
Rear Suspension 0
Shift Lever Shimano SLX, 2 Way Release, 10-Speed
Derailleur Front Shimano SLX, 3x10
Derailleur Rear Shimano XT Shadow Plus
Brakes Front Formula RX Hydraulic Disc, 7” Rotor
Brakes Rear Formula RX Hydraulic Disc, 6” Rotor
Brake Levers Formula RX Hydraulic with Reach Adjust
Pedals None
Crankset Shimano M522, 42/32/24T
Chain Cover #N/A
Bottom Bracket Shimano Octalink Splined
Chain Shimano HG74, 10-Speed
Cassette Shimano DEORE, 11-36, 10 Speed
Hub Rear Marin Cartridge Bearing, 32 Hole
Hub Front Marin Sealed Bearings, 32 hole
Rim Alex SX44
Spokes Nipples 14 Gauge Black Stainless
Tires Continental Race King, 29” x 2.2\" with wire bead
Saddle WTB Silverado Sport
Seatpost Comp Alloy Micro Adjust, 2014 Alloy, 15mm Offset, 400mm
Stem Marin OS Alloy Threadless, 31.8mm Bar Clamp
Handlebar Double Butted 2014 Alloy, OS-31.8mm, 15mm Rise, 710mm wide (680mm for Size 15”)
Grips Ergon GA1 EVO
Headset FSA Orbit 1.5B ZS, 1 1/8” Top, 1.5” Bottom
Rack #N/A
Fender #N/A
Kickstand #N/A
