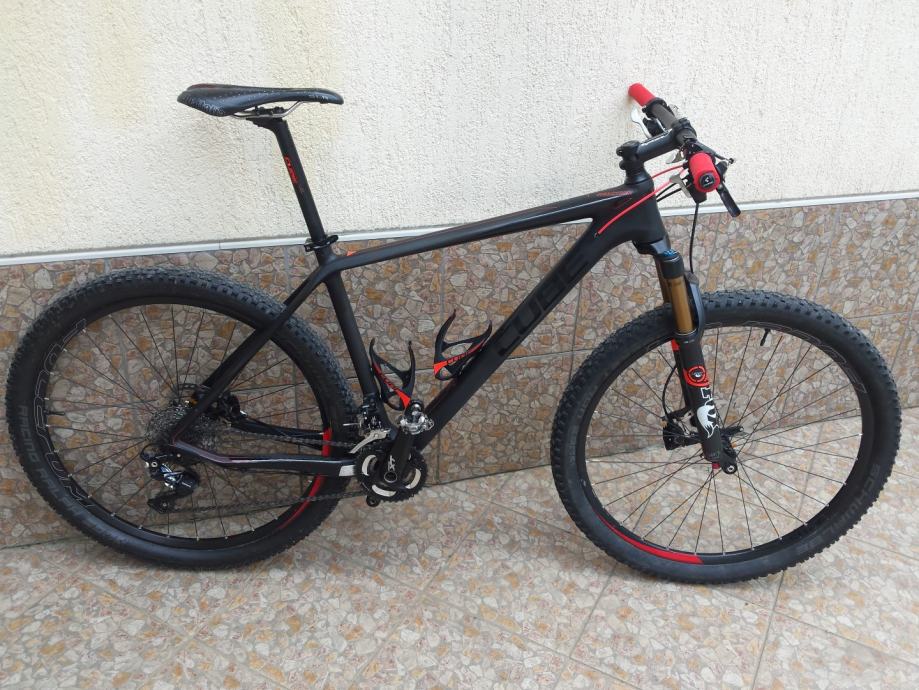

Bicikl Cube Reaction GTC SL 27,5 20" 2015.

Cijena fiksna
Bicikl Vožen 1000 km, kao nov.

Okvir - GTC Twin Mold Monocoque Technology, ARG2, Tapered Headtube, Pressfit BB, X12, Integrated cable routing 20"

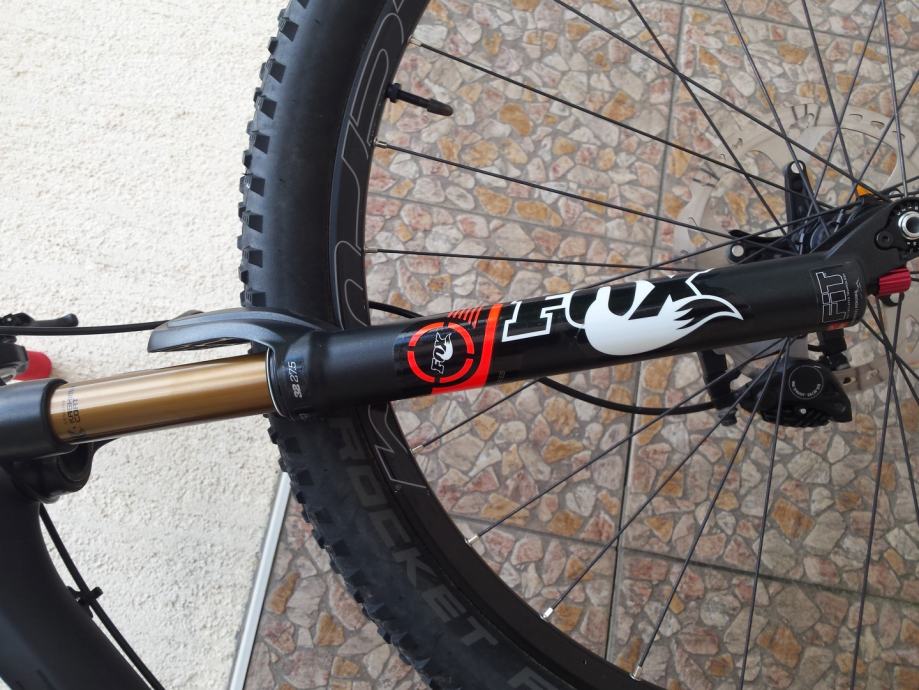

Vilica - Fox 32 Float 27,5 CTD FIT, remote handlebar lever, tapered, 15QR, 100mm, KASHIMA
Pogon - Shimano XT, FC-M785, 24/38T, 175mm
Ručice Mjenjača - Shimano XT SL-M780-I, Direct Attach
Prednji mjenjač - Shimano XT, FD-M786-D, direct mount, Down Swing, 2x10-speed

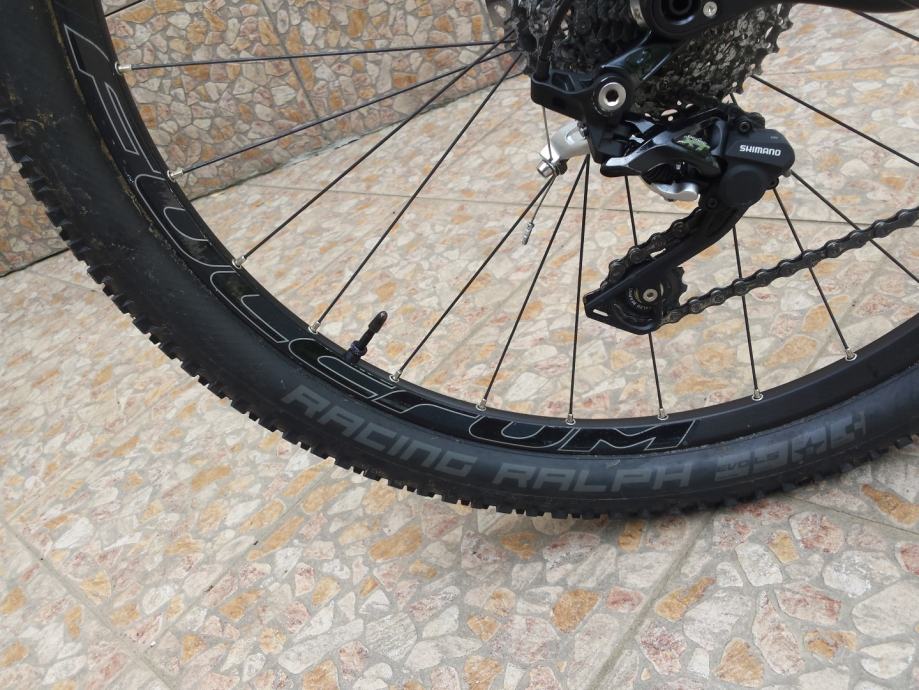

Stražnji mjenjač - Shimano XT, RD-M786-DGSL, ShadowPlus, Direct Mount, 10-Speed
Kazeta - Shimano CS-M771, 11-36
Lanac - Shimano CN-HG95

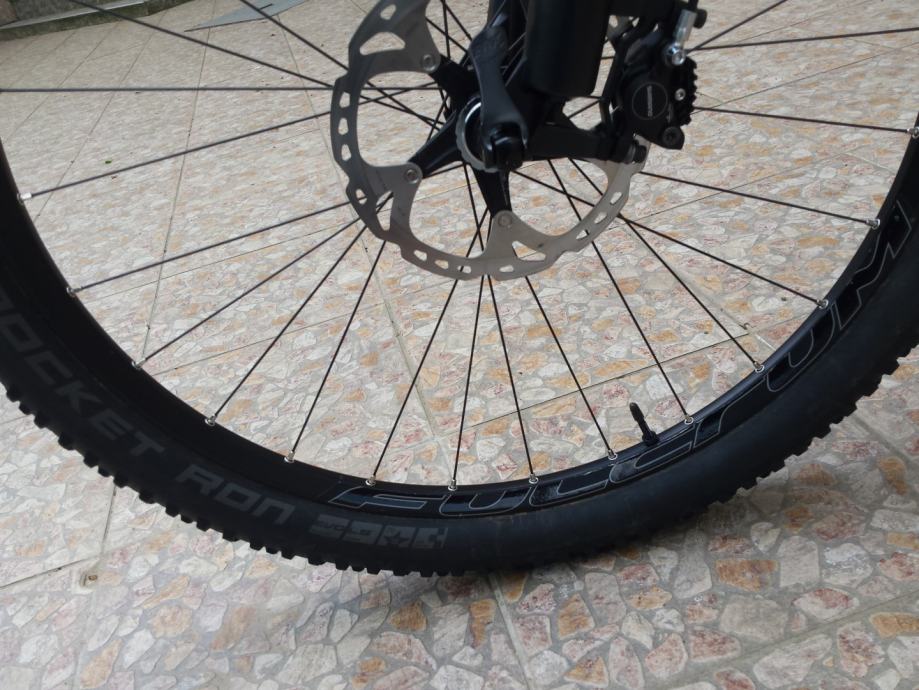

Kotači - Fulcrum Red44 Tubeless
Prednja naba - 15QR
Stražnja naba - X12
Prednja guma - Schwalbe Rocket Ron Kevlar LightSkin 2.25 Tubeless
Stražnja guma - Schwalbe Racing Ralph Kevlar LightSkin 2.25 Tubeless
Tubeless ventili - Schwalbe black-anodized
Tubeless tekućina - Effetto Mariposa Caffelatex
Kočnice - Shimano XT M785 Hydr.
Rotori - Shimano XT RT81 Icetech Centerlock Rotor 180/160

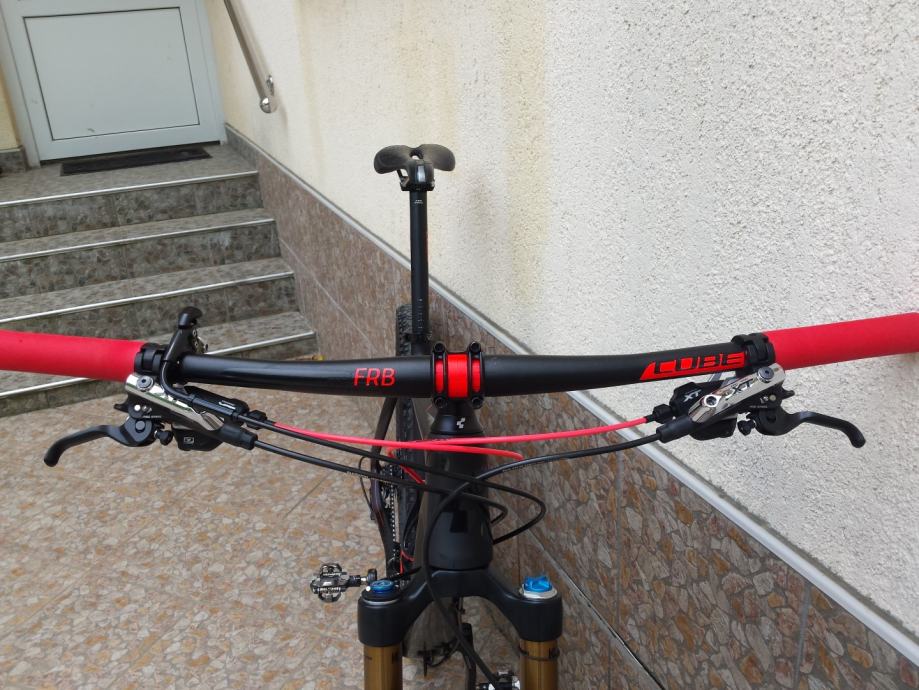

Volan - CUBE Flat Race Bar Pro, 720mm
Gripovi - Cube SCR Red
Ležaj volana - CUBE I-t integrated, top 1 1/8", bottom 1 1/2"
Lulica - Syntace F149
Sjedalo - Selle Italia SLR
Cijev sjedala - CUBE Prolight 27,2*400mm
Pedale - Shimano XTR PD-M980 XC Race Pedals
Nosač bidona - Nosač bidona Cube HPP - 2 kom

Technologies:
Wet Paint Surface:On polished, brushed aluminium and all HPC frames, the logos and graphics are applied in multi-layer wet paint. Cube use this surface treatment technology mainly to save weight.
Gran Turismo Composite: In designing the GTC carbon fibre frames, safety and comfort are the main factors. Cube use high modulus fibres for the parts which are stressed the most the head tube, the seat tube top and the bottom bracket area. That is why the frame still offers flex and comfort resulting from the flexible tubes. The special production process with inner and outer molding forms ensure that the minimum of required material is used, reducing overall weight even with complex frame designs. All GTC frames have of course passed DIN -Plus testing.

Agile Ride Geometry: Cube ran innumerable tests to develop the Agile Ride Geometry in their series of big wheel bikes. Three important details resulted. Increased fork offsets allows for the same trail as Cube's 26in bikes without having to steepen the head angle, thus maintaining generous toe clearance to the front wheel. Secondly they shortened the chain stays without compromising the seat angle. A patented construction to mount the front derailleur gives more tyre clearance while keeping a conventional seat angle, leading to a perfect riding position for every rider size. Last but not least the BB height remains the same as on their 26in bikes. These measures lead to a natural riding position. Every mountain biker will feel immediately at home on a Cube 29er or 27.5.

Adaptable X12 Hanger: Cube optimized their new dropout design based on the Syntace X12 through-axle system, enlarging the area of the frame where the hanger is mounted, facilitating the use of longer Direct Mount hangers. Shifting precision and stiffness are therefore improved. With the new design it's also possible to swap the whole contact area of the axle with the hanger should the system be worn out.
Integrated Cable Routing: Internally routed cables offer many advantages. Cables are protected from dirt for longer life, weight is saved thanks to the absence of external housing and the bike has a clean, sleek appearance.

Integrated Post Mount: The post mount rear brake system is found on all carbon fibre frames and top aluminium full suspension models. Two bolts and the IS adapter aren’t needed anymore, and fewer parts means less weight, in this case saving 30 grams. This may not sound a lot. But there's potential to save weight in every detail.

Press Fit BB: With Press Fit bearings, the bottom bracket bearings are pressed directly into the frame and not screwed in as usual. This gives a wider bottom bracket shell and allows the use of a wider down tube and more broadly-spaced chainstays. Every millimetre of additional width gives a significant improvement in lateral stiffness.

Twin Mould Technology: All GTC models are built using this complex manufacturing process. In this process Cube can eliminate possibly dangerous folding by constant control of carbon fibres during the curing process. By using fixed internal forms at junction points the quantity of resin is considerably reduced and the fibres bonded more tightly together. The result is increased product safety and improved stiffness-to-weight values.

X12 Through Axle: In this system, a cone is used to form a play-free connection. It is only necessary to tighten the axle from one side. The wheel is positioned by an insert in the right-hand dropout which is secured by a bolt. The main advantages of the Syntace system are quick and simple changing of the wheel, reliable position of the brake disc and higher stiffness of the rear of the bike. This allows the assembly to be made lighter than a conventional through-axle.
