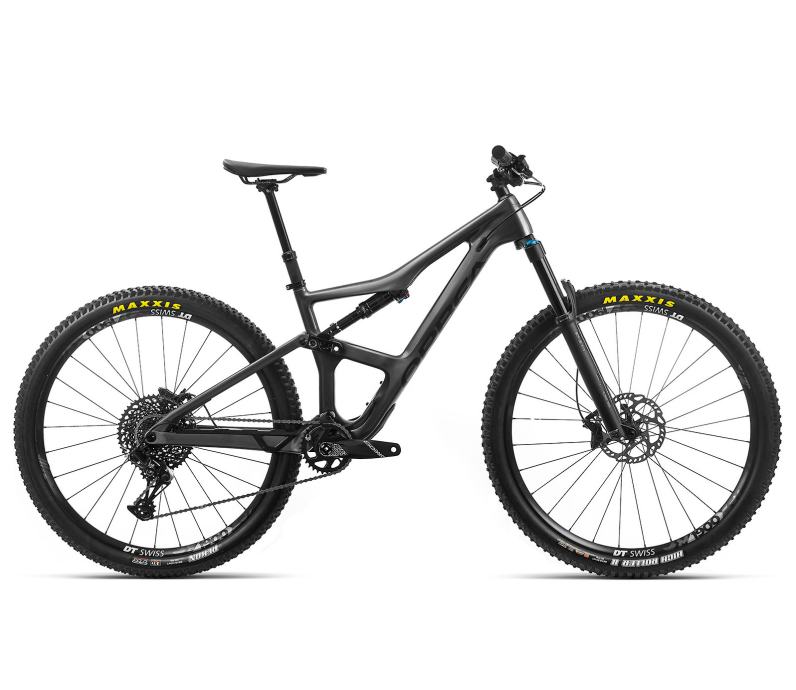

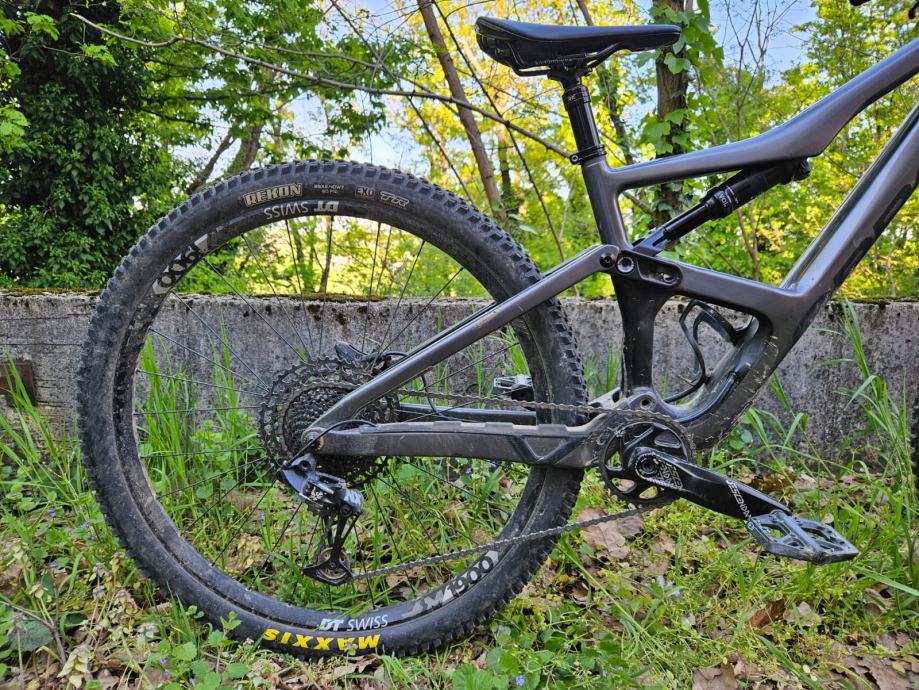

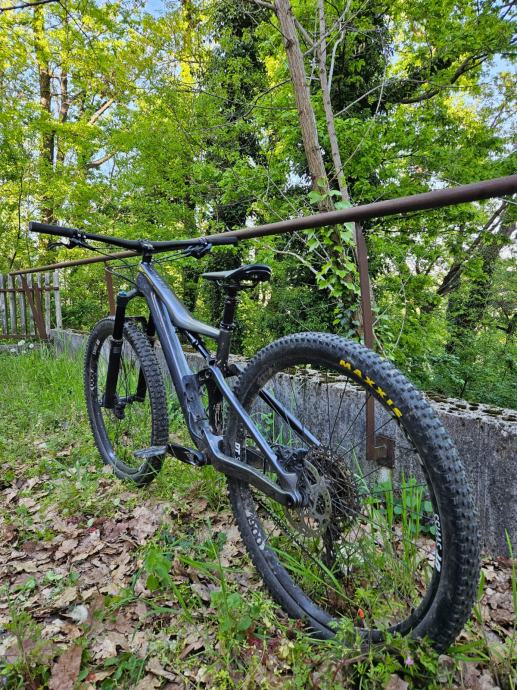

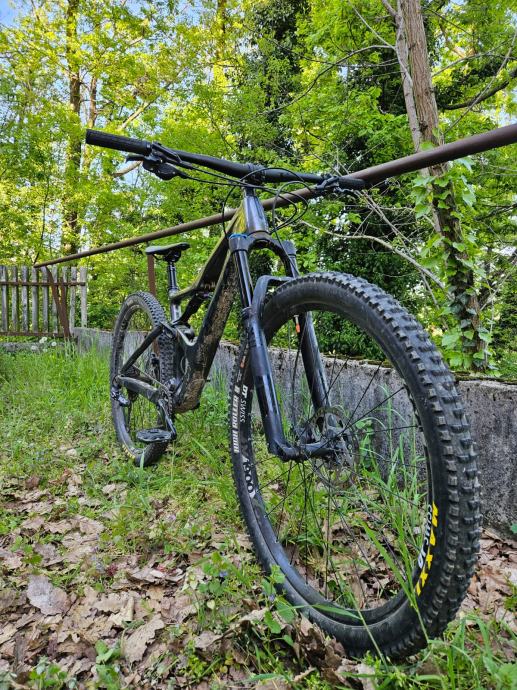

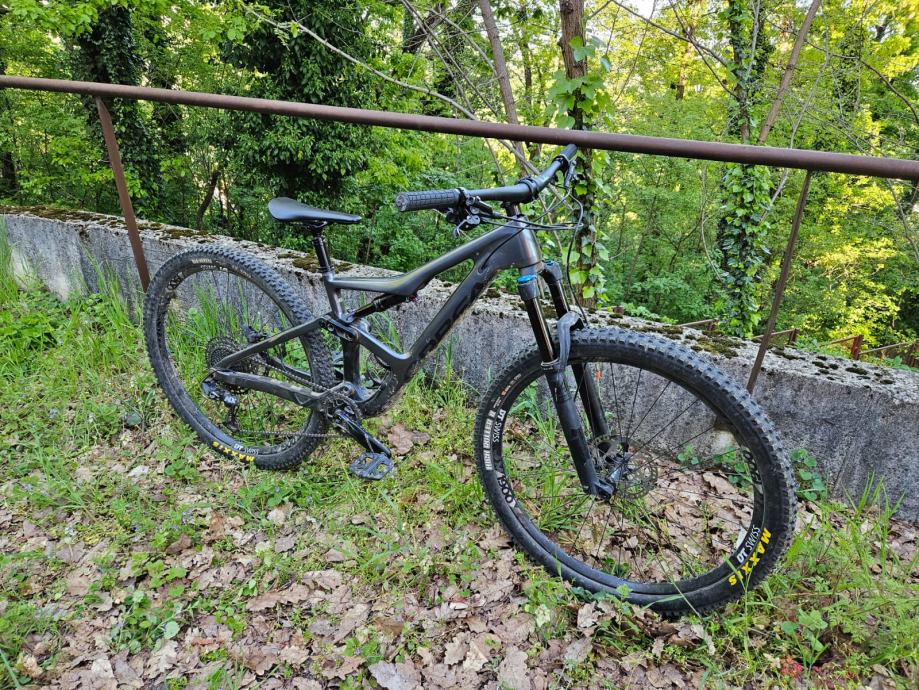

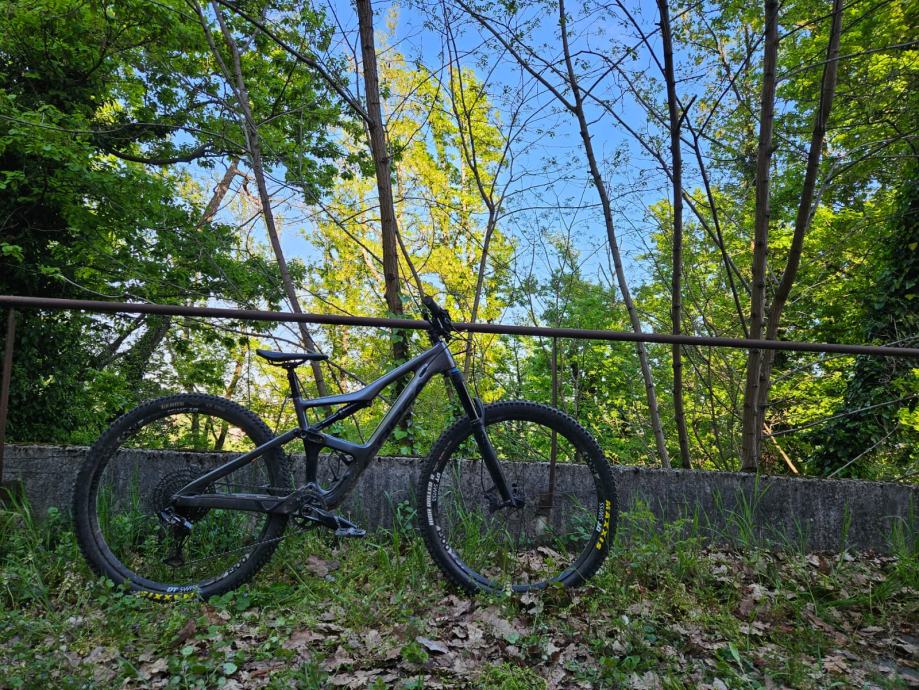

2020 Orbea Occam M30-Eagle Bike

Product Orbea Occam M30-Eagle Bike
Model Year 2020
Riding Type
Enduro / All-Mountain
Trail
Rider
Unisex
Sizes and Geometry
S

M

L

XL

Wheel Size
29"
Frame Material
Carbon Fiber

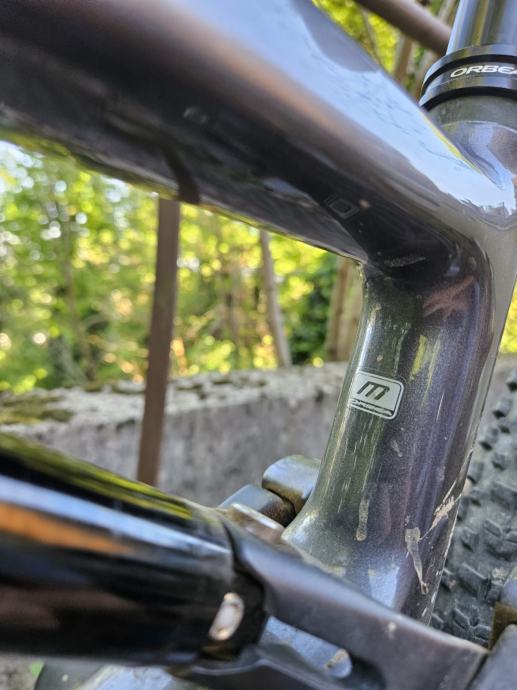

Frame Material Details Orbea Monocoque Race carbon with high modulus and high strength fibers, internal cable routing, asymmetrical front triangle, integrated frame protection
Rear Travel
140mm

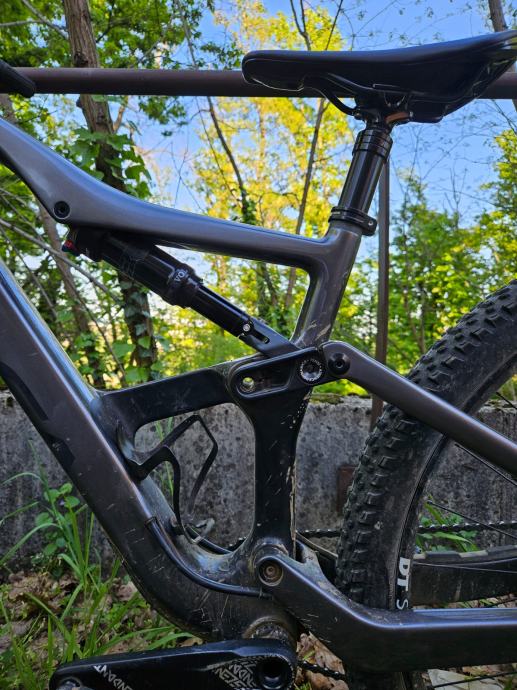

Rear Shock FOX FLOAT DPS Performance 3-Position EVOL custom tune, 210x50mm

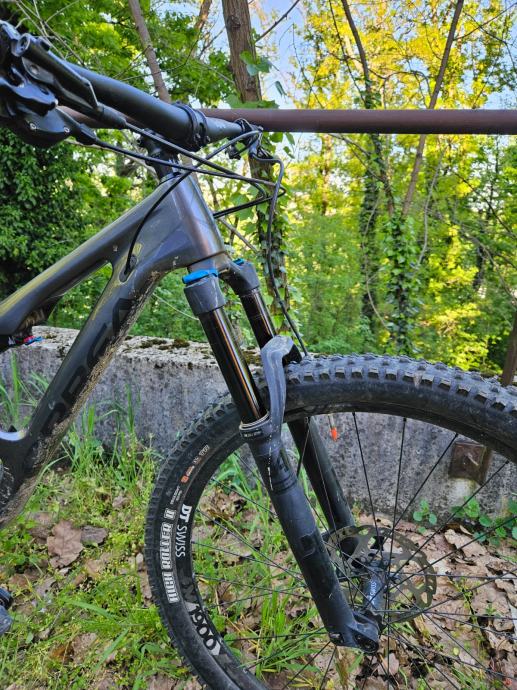

Fork FOX 34 FLOAT Performance 3-Position QR15x110
Option: FOX 36 FLOAT Factory GRIP2 RC2 with QR axle (+$499)
Kabolt bolt-on front axle available for either fork (+$60)
Fork Travel 140mm
Option: 150mm (with 36 upgrade)
Head Tube Diameter Tapered 1.125-1.5" integrated
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated

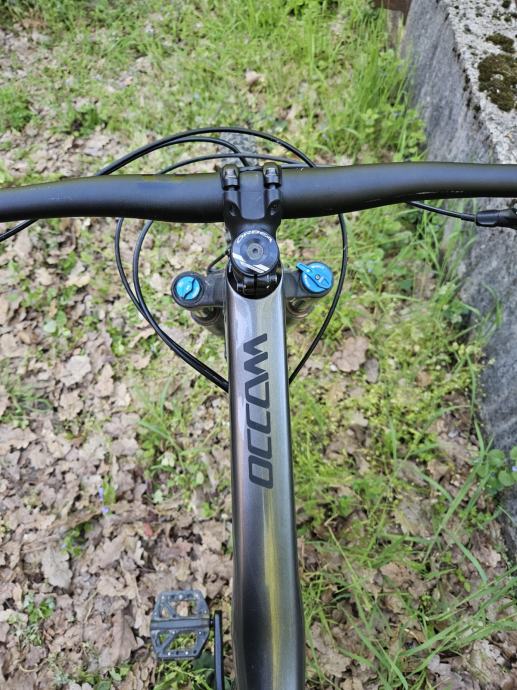

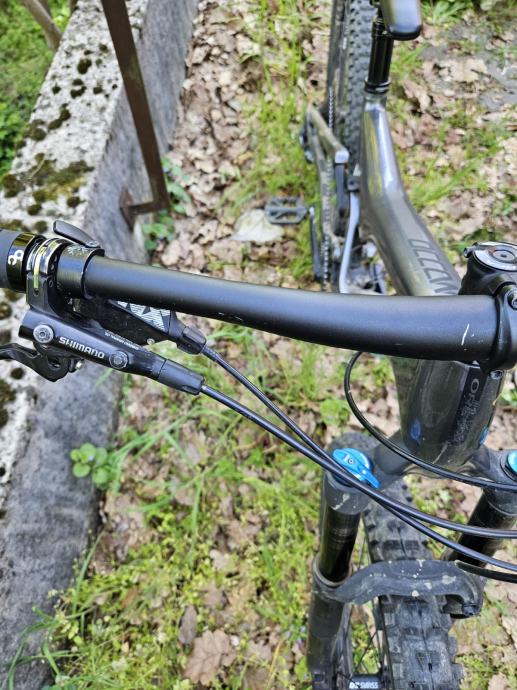

Handlebar OC1 35mm clamp, 12mm rise 780mm wide
Option: Race Face Aeffect R 35mm clamp 785mm wide (+$60 with stem)
Stem OC1 3D forged 35mm clamp 7º rise, 45mm reach on S-M and 55mm reach on L/XL
Option: Race Face Aeffect R 35mm clamp (+$60 with handlebar)
Grips

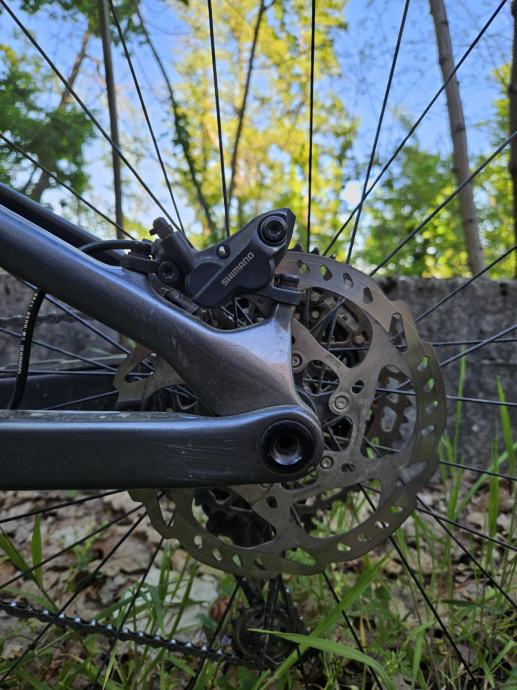

Brakes Shimano MT501 BR520
Option: Shimano XT M8120 (+$185)
Brake Levers Shimano MT501
Drivetrain
1x
Shifters SRAM NX Eagle 12-speed
Front Derailleur None

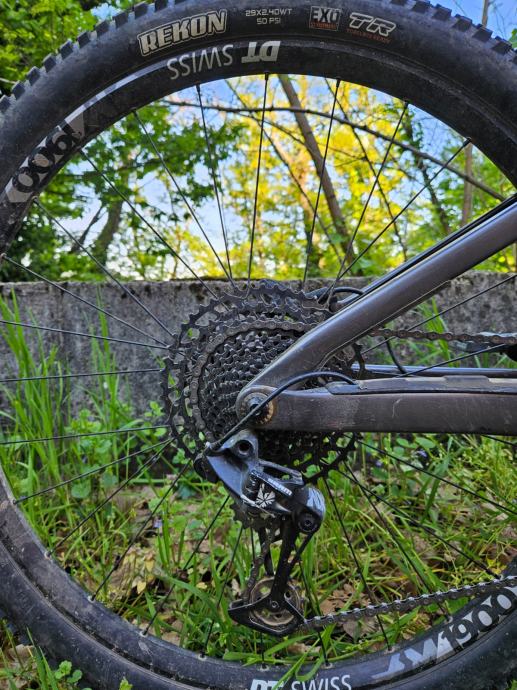

Rear Derailleur SRAM NX Eagle 12-speed
ISCG Tabs ISCG-05
Chainguide Integrated upper chainguide
Cranks SRAM Descendant DUB, 170mm on S/M, 175mm on L/XL
Chainrings SRAM Eagle 32 tooth Boost, aluminum
Bottom Bracket SRAM DUB BSA
Pedals
Chain SRAM NX Eagle 12-speed
Cassette SRAM NX PG-1230 Eagle 10-50 tooth 12-speed

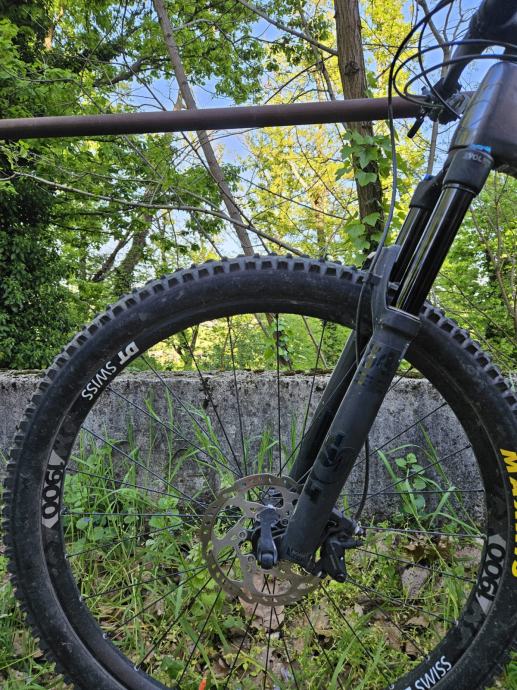

Rims DT Swiss M 1900 Spline 30mm
Hubs DT Swiss 370 Boost
Spokes DT Swiss Champion
Tires Maxxis Rekon 2.4" FB 60TPI Dual EXO TR
Option: Maxxis Minion DHF 2.5" front and Minion DHR 2.4" rear (+$49)
Saddle fi'zi:k Taiga, Kium rails
Option: Selle Italia X-LR Ti Flow (+$60)
Seatpost OC2 dropper (125, 150, or 170mm travel)
Option: Crankbrothers Highline 125/150/170mm dropper (+$199)
Seatpost Diameter 31.6mm
Seatpost Clamp Bolt-on
Rear Dropout / Hub Dimensions Boost 148x12mm
Max. Tire Size
Bottle Cage Mounts Yes
Colors Anthracite glitter/black, blue/orange
Custom paint and graphics available via MyO program
