Tektronix 834 - serial protocol analyzer for RS-232
- Cijena
- 90 €
Šifra oglasa: 49453473
Osnovne informacije
- Lokacija
- Slovenija
- Stanje
- rabljeno
Opis oglasa

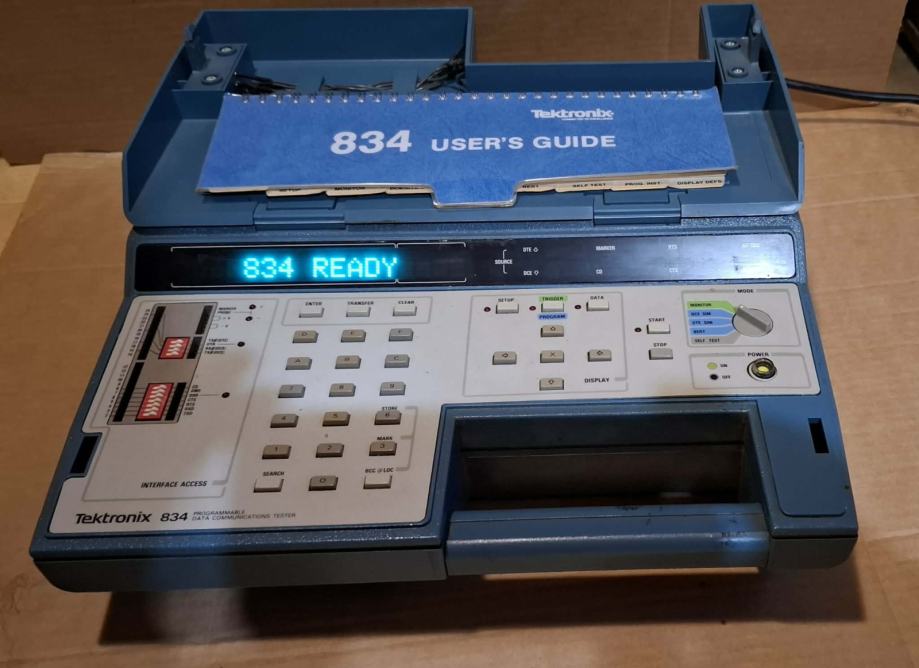

The Tektronix 834 is a portable "programmable data communications tester" (serial protocol analyzer) for RS-232 (V.24) circuits, introduced in 1980.
The 835 and 836 are sister models with extra features, introduced in 1986.
It can be used as a serial transmission monitor, modem or terminal simulator, or as a bit and block error rate tester (BERT). It supports ASCII, EBCDIC and hexadecimal displays on its 12-character alphanumeric display, for data formats with 5 to 9 bits/ character (including parity), asynchronous or synchronous (including HDLC), from 50 to 19200 bits/s.

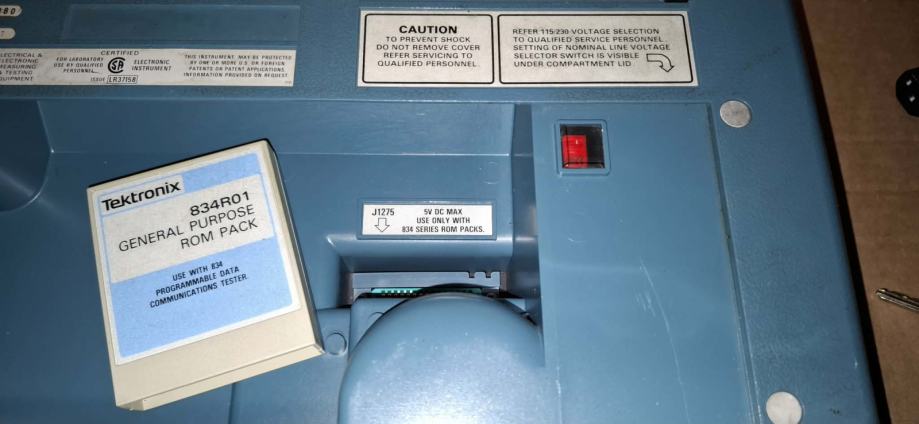

ROM packs were available to extend the 834's functions for specific protocols.
In simulation mode, operation is user-programmable with up to 99 program steps that can reference up to 50 "parameter buffers" (registers). Some standard tests like all-character tests or "quick brown fox" tests are predefined.
John Light was the software lead on the 834 and wrote some of the key parts of the software. Other software team members included Jeff McMeekin, Randy Deitrich and Bill Randle. On the hardware side was Pete Janowitz, and Lynn Saunders. Wendell Damm was the engineering project manager.
The 835 and 836 are sister models with extra features, introduced in 1986.
It can be used as a serial transmission monitor, modem or terminal simulator, or as a bit and block error rate tester (BERT). It supports ASCII, EBCDIC and hexadecimal displays on its 12-character alphanumeric display, for data formats with 5 to 9 bits/ character (including parity), asynchronous or synchronous (including HDLC), from 50 to 19200 bits/s.
ROM packs were available to extend the 834's functions for specific protocols.
In simulation mode, operation is user-programmable with up to 99 program steps that can reference up to 50 "parameter buffers" (registers). Some standard tests like all-character tests or "quick brown fox" tests are predefined.
John Light was the software lead on the 834 and wrote some of the key parts of the software. Other software team members included Jeff McMeekin, Randy Deitrich and Bill Randle. On the hardware side was Pete Janowitz, and Lynn Saunders. Wendell Damm was the engineering project manager.
