AUDAC MTX88 - 8-zonska audio matrica

AUDAC MTX88 - 8-zonska audio matrica

CIJENA NA UPIT


8 x 8 Audio Matrix System. 2 Mic inputs with Phantom & Priority. 4 Stereo line inputs. 4 Stereo balanced zone outputs. Fully functional integrated web server. iPad & iPhone control apps. TCP/IP and RS232 control ports. Optional wall panels for audio input & control. Optional paging console

A 24 volts power connection makes it possible to keep the MTX running on emergency power, even if the mains power is shut down.

SYSTEM SPECIFICATIONS:

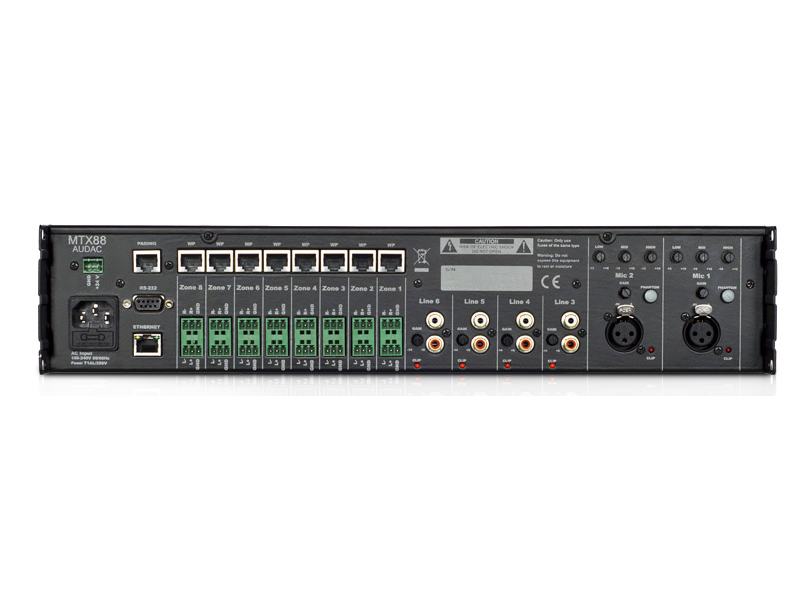

Inputs: 2 x Balanced Microphone (XLR), 4 x Stereo Unbalanced Line (RCA), 8 x Wall panel input (RJ45)
Outputs: 8 x Stereo Balanced Line (3-pin Euro Terminal Block - 3.81 mm)
Input sensitivity Mic:0 dB ~ -50 dB
Phantom power Mic: 15 V DC
Input sensitivity Line: -14 dB ~ +9 dB
Output impedance: 51 Ohm
Output level: -70 dB ~ 0 dB
EQ output: Treble 2.5~20 kHz ±14 dB
Bass 100 Hz ±14 dB
Frequency response: 20 Hz - 20 kHz
Signal / Noise ratio: Mic > 80 dB; Line > 100 dB
THD + N: Mic < 0.05 dB; Line < 0.01 dB
Crosstalk: -85 dB
Control possibilities: Front panel, RS232 / TCP/IP, Wall panel (RS485), iPhone / iPad / Integrated website
Power supply: 100 ~ 240 V AC / 50 ~ 60 Hz; 24 V DC (emergency power)
Power consumption: 12 Watt

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 482 x 88 x 335 mm
Weight net: 5.0 kg
