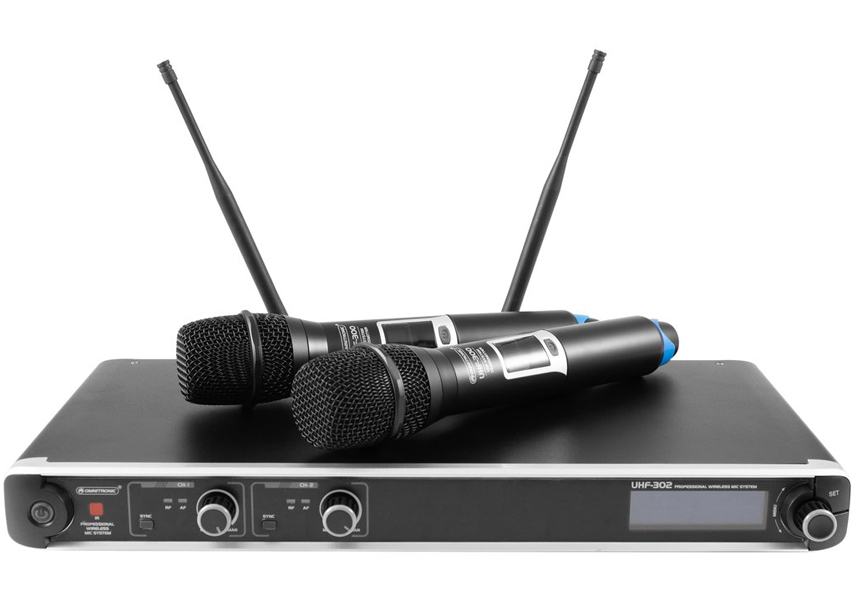

OMNITRONIC UHF-302 2-Channel Wireless Mic System

OMNITRONIC UHF-302 2-Channel Wireless Mic System 823-832/863-865MHz

MPC: 320,00€, cijena za gotovinu/virman: 280,00€


FEATURES:

2-channel UHF PLL microphone system
2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitters via infrared signal
LCDs for group, frequency and channel
LEDs for carrier and audio signal
2 separate channels with volume controls
Balanced XLR output per channel
Unbalanced 6.3 mm jack for mixed signal output
Jack cable included
Removable antennas (BNC connection)
Incl. mounting brackets for 483 mm rack installation
2 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
Matching pocket transmitter can be ordered separately
License-free and approved in large parts of the EU (please check on a country-by-country basis)

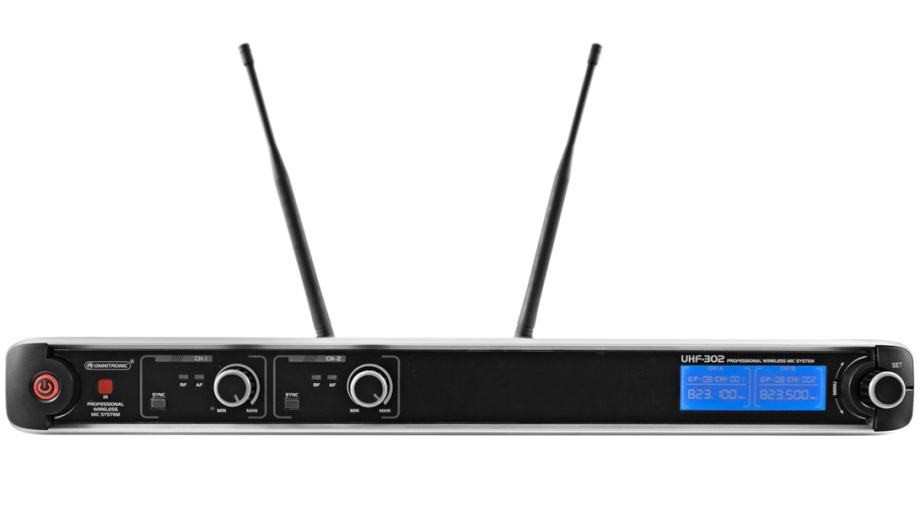

Receiver:
Housing design: (19") 48,3 cm rack installation possible 1 U

Microphone:
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Mute function: No



TECHNICAL SPECIFICATIONS:
System: Non-diversity, 2 channel
Receiving frequencies: 93
RF power output: 10 mW
Modulation method: FM
Frequency stability: 10 ppm
Sensitivity: 6 dBµV
S/N ratio: >80 dB
THD: less than 0.5 % at 1 kHz

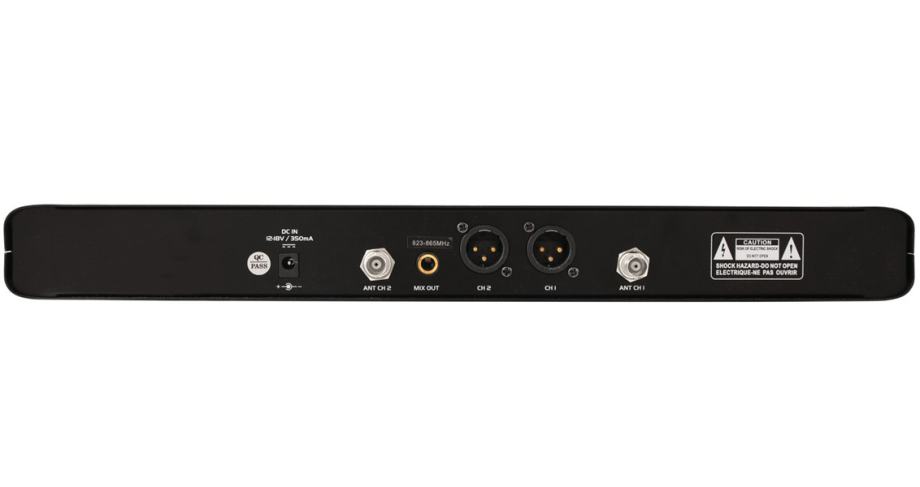

Audio outputs:
Mic: 2 x XLR, bal.
Mix: 6.3 mm jack, unbal.
Current consumption: 130 mA
Frequency range: 50 - 18,000 Hz
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
Number of channels: 2
Range: 60 m
Type: Wireless set
Weight: 2,3 kg

Receiver:
Power supply: 110-240 V AC, 50/60 Hz; 14 V DC 350 mA
Power consumption: 4 W
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Material: Metal
Housing design: (19") 48,3 cm rack installation possible 1 U
Width: 41 cm
Height: 4,7 cm
Depth: 23,5 cm

Microphone:
Power supply: 3 V DC
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Power connection: Battery/battery pack
Microphone-Type: Dynamic
Material: Plastic
Length: 25 cm
Diameter: 5,1 cm
Weight: 0,23 kg
