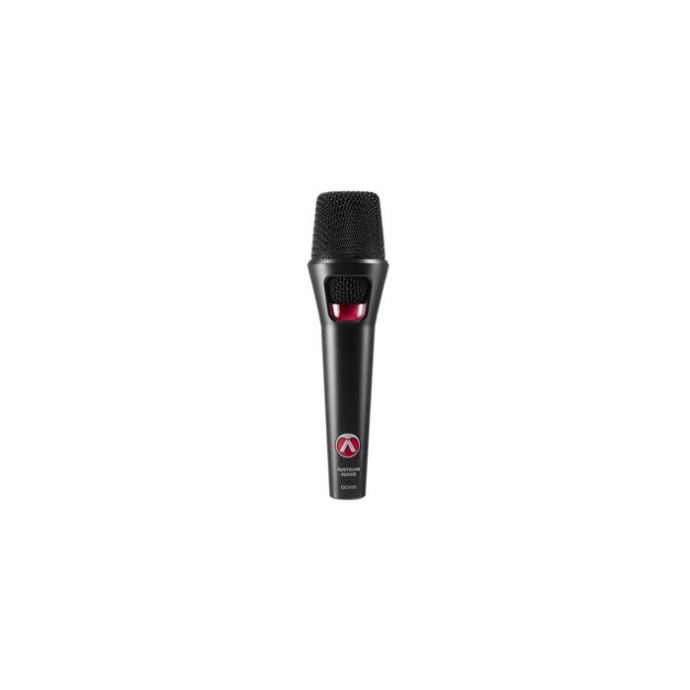

Austrian Audio OD505 - dinamički vokalni mikrofon

The OD505 Active Dynamic Vocal Microphone is designed primarily for the stage, though it is also a very capable microphone for studio application. Uncompromisingly robust, it combines all the advantages of a dynamic microphone with the tonal finesse of a condenser microphone.


The OD505 is the perfect choice for singers, podcasters and radio broadcasters. Its amazingly natural sound makes it very easy to shape and highlight a vocalist’s strengths.


Featuring Austrian Audio’s proprietary Open Acoustics Technology, the OD505 delivers a pristine, natural and resonance-free sound without any colouring.


Made in Austria.






The active front capsule requires 48V phantom power and, at 4.4 mV / Pa, has almost the same sensitivity as a condenser microphone. With its active circuitry, the OD505’s sound is always consistent, regardless of the internal resistance of the microphone preamplifier or length of connecting cables. The passive lower capsule is polarity-rotated, it senses and reduces unwanted handling noise, especially at the lower frequencies.


The OD505 also includes another Austrian Audio proprietary development: The 3D Pop Noise Diffuser. This filter is specially designed for the OD505 and effectively reduces the impact of plosives.








Directional characteristic: Supercardioid



Frequency range: 35 Hz – 16 kHz



Sensitivity : 4.4 mV/Pa



Max. SPL: 154 dB SPL



Low cut filter: 120 Hz (2nd order)



Impedance: 275 Ω (symmetrical)



Load impedance: > 1 kΩ



Supply voltage: 48 V (< 1 mA)



Main Connector: XLR 3 pin



Dimensions: 194 x 53x 53 mm



Weight: 340g
