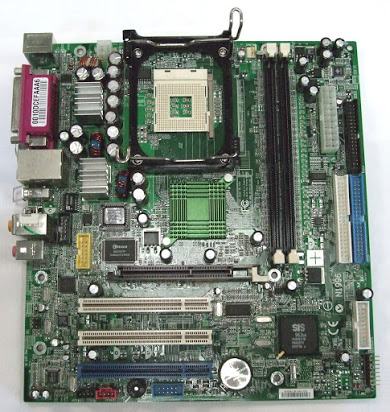

Matična ploča MSI MS-6701, soc.478

Potpuno ispravna matična ploča MSI MEDION MD5000 Ver:1.0 (MS-6701), soc.478

Šaljem i poštom u svako mjesto, a matičnu ploču plaćate poštaru prilikom preuzimanja pošiljke na pošti samo 270 kuna plus 39 kuna za poštarinu.

Ovu matičnu ploču možete poručiti tako da ostavite svoju adresu u poruci na Njuškalu ili na e-mail adresu: studiomusic7@yahoo.com ili na broj mobitela i Viber broj 00387/63/610-045.

Detaljne specifikacije:

CPU Support
Intel Pentium 4 (Willamette, Northwood)
Intel Celeron (Willamette, Northwood)

Chipset
SiS 648 / 963
NB/SB interconnection via MuTIOL 1G with 1 GB/s
Supports FSB 400/533 (100/133 MHz QDR)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Universal Serial Bus (USB 2.0/1.1)
Supports up to AGP 8x (AGP 2.0/3.0, 1.5V/0.8V)
Supports PCI v2.2
Supports IDE/PATA with up to UDMA133

Memory
2 184-Pin DIMM sockets supporting DDR-SDRAM
Supports up to 2 DIMMs DDR 200/266/333
Supports up to 1 GiB DIMMs
Supports max. 2 GiB RAM

Audio
963 integrated SiS7012 AC'97 audio controller
Realtek ALC650 AC'97 audio codec
AC'97 2.2 compliant

LAN
Integrated SiS900 MAC / Realtek RTL8201BL PHY
Supports 10/100M Fast Ethernet
IEEE 1394 (Firewire)
963 integrated / Agere FW803 PHY
Supports 100/200/400 MBit/s data transfer rate

Internal I/O
1 AGP
3 PCI
2 PATA/IDE
1 Floppy port
1 USB 2.0/1.1 header
1 IEEE 1394 (Firewire) header
1 game port header
1 S/PDIF header
1 front panel audio header
AUX-IN, CD-IN

Back Panel I/O
PS/2 keyboard
PS/2 mouse
2 USB 2.0/1.1 ports
1 IEEE 1394 (Firewire) port
1 IEEE 1394 (Firewire) mini port
1 RJ45 (LAN)
1 RS-232 port (COM)
1 parallel port (LPT)
Audio connectors (3 line-out, line-in, mic-in, S/PDIF in, S/PDIF out)

BIOS
2 MBit Flash EEPROM (PLCC32)
Phoenix-Award BIOS v6.00PG
Supports Plug-and-Play (PNP)
Supports Advanced Power Management (APM)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Desktop Management Interface (DMI)

Miscellaneous
Micro-ATX form factor
20 pin ATX power connector
4 pin 12V power connector
Winbond W83697HF hardware monitoring and Super I/O chip
On-board PC speaker
1 3-pin FAN header
6 mounting holes
