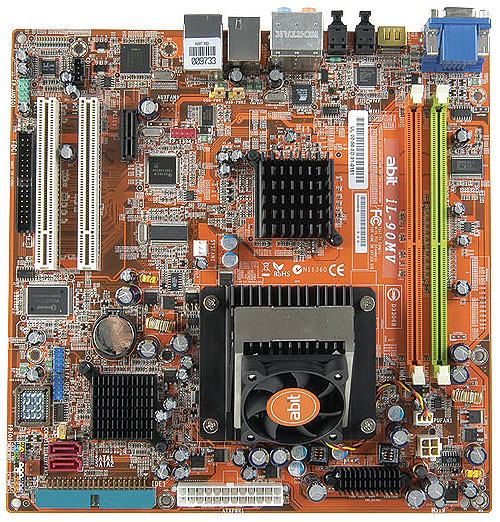

HTPC MB ABIT IL-90MV + CPU T2330

HTPC MB ABIT IL-90MV + CPU T2330

CPU

Designed for Intel® Merom, Yonah 65nm (Core 2 Duo, Core Duo, Core Solo, Celeron M) processors with 667/533MHz FSB
Supports Intel® Hyper-Threading / XD-bit / EM64T/ SpeedStep™ Technology
Chipset

Intel® 945GT / Intel® ICH7MDH Express Chipset
Memory

2 X 240-pin DIMM sockets support max. memory capacity 2GB
Supports Dual channel DDR2 667/533/400 Un-buffered / Non-ECC memory
Graphics

Integrated Intel Graphics Media Accelerator 950 supports DirectX 9
HDMI 1.2

Support 1080p and UXGA 1600X1200@60MHz
Support 7.1 ch HD audio
LAN

On board Intel 82573L 10/100/1000M controller
Audio

On board 7.1 channels Intel High Definition Audio CODEC
Supports auto jack sensing and optical S/P DIF In/Out
Dolby Master Studio Certificated
Expansion Slots

1 x PCI-E X1, 2 x PCI
Internal I/O

1 x Floppy port, 1 x UDMA 100/66/33 connector,
2 x SATA 1.5Gb/s connectors
2 x USB 2.0 headers, 1 x IEEE1394 headers
1 x FP-Audio header, 1 x CD-IN

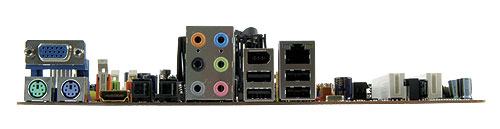

Back Panel I/O

1 x VGA, 1 x PS/2 Keyboard, 1 x PS/2 Mouse
4 x USB 2.0, 1 x RJ-45 LAN, 1 x IEEE1394
1 x Audio connector (Line Out, Line-in, MIC-in, Surround, Rear, Center/Sub)
1 x HDMI 1.2
Serial ATA

Supports 2 ports Serial ATA 1.5Gb/s data transfer rate
Support RAID 0/1
IEEE1394

Supports 2 Ports IEEE 1394a at 100/200/400 Mb/s transfer rate
Form Factor

Micro ATX form factor (245 x 245 mm)
PCB Color: Orange
RoHS

100% lead-free process and RoHS compliant
abit Engineered

abit CPU Thermal Solution
