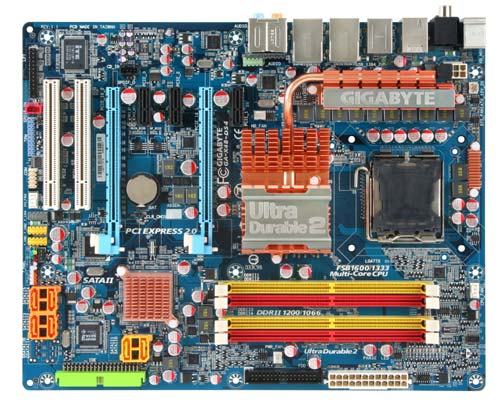

Gigabyte GA-X48-DS4 Socket 775 FSB 1600

Prodaje se matična ploča navedena u naslovu oglasa, u potpunosti ispravna. Jedna od najboljih 775 ploča - "the ultimate dream machine for serious overclockers and enthusiasts". Prima sve procesore. Moguća kombinacija s Quad Core procesorom Q8200 - 2.33GHz kojeg isto prodajem. Cijena manja u kompletu.

CPU

-Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
-1600/1333/1066/800 MHz FSB

Chipset

North Bridge: Intel® X48 Chipset
South Bridge: Intel® ICH9R

Memory

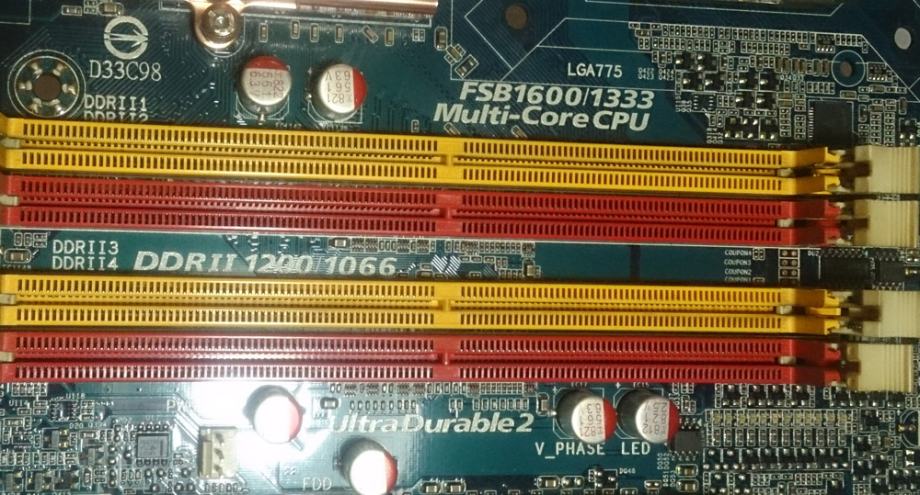

-4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
-Dual channel memory architecture
-Support for DDR2 1200/1066/800/667MHz, ECC, non ECC memory modules.
-Please refer "Memory Support List" for memory support information.

Audio

-Realtek ALC889A codec
-High Definition Audio
-2/4/5.1/7.1-channel
-Support for DTS (dts NEO:PC)
-Support for S/PDIF In/Out
-Support for CD In

LAN

-Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots

2 x PCI Express 2.0 x16 slots
3 x PCI Express x1 slots
2 x PCI slots
Storage Interface
-South Bridge:
6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
-GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
-iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394

-T.I. TSB43AB23 chip
-Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394 bracket connected to the internal IEEE 1394 header)

USB

-Integrated in the South Bridge
-Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin PCIe 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x parallel port header
1 x serial port header
1 x power LED header
1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
8 x USB 2.0/1.1 ports
2 x IEEE 1394a ports
2 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

-iTE IT8718 chip

H/W Monitoring

-System voltage detection
-CPU/System temperature detection
-CPU/System/Power fan speed detection
-CPU overheating warning
-CPU/System/Power fan fail warning
-CPU fan speed control

BIOS

-Supports DualBIOS Plus
-2 x 8 Mbit flash ROM
-Use of licensed AWARD BIOS
-PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b.

Unique Features

-Support for Dynamic Energy Saver Advanced
-Support for @BIOS
-Support for Download Center
-Support for Q-Flash
-Support for EasyTune
-Support for Xpress Install
-Support for Xpress Recovery2

Form Factor

-ATX Form Factor; 30.5cm x 24.4cm

Za bilo kakav upit slobodno me kontaktirajte.
Primopredaja u Zagorju, a na ostale lokacije u HR šaljem poštom ili Tiskom.
