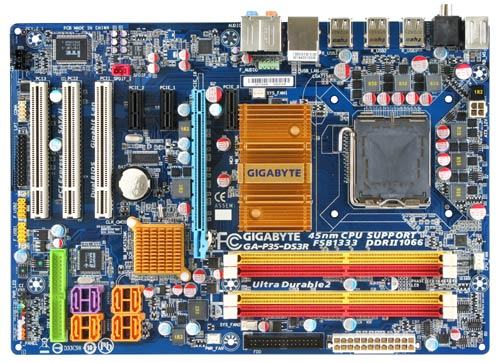

Gigabyte GA-P35-DS3R Socket 775, FSB1600

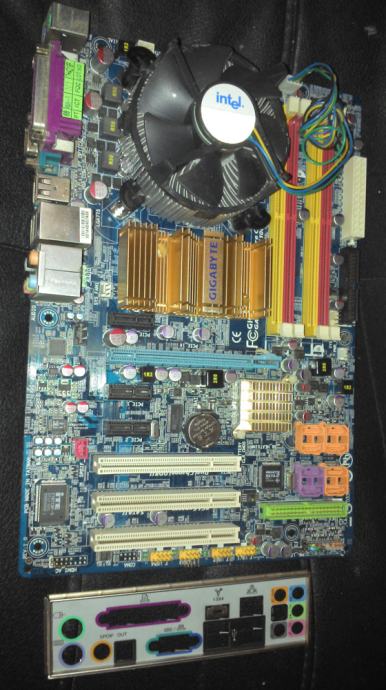

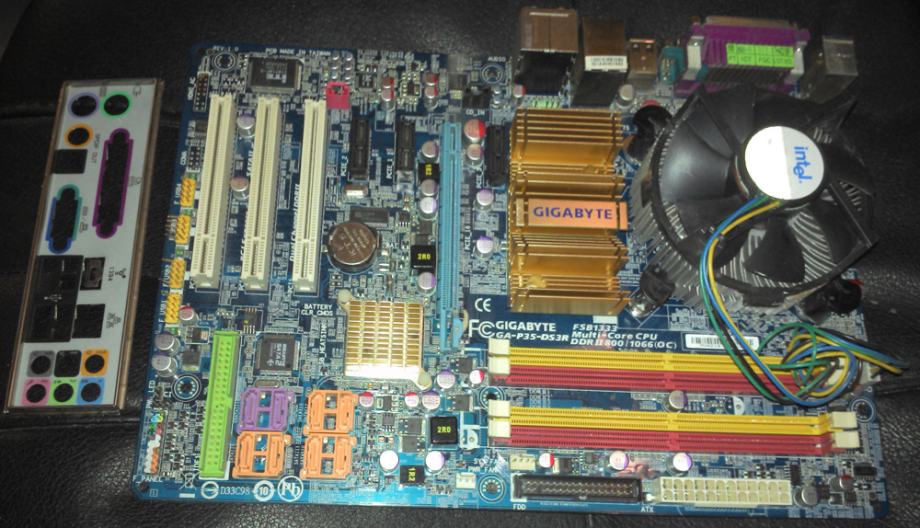

Prodaje se ispravna matična ploča navedena u naslovu oglasa. Dolazi s limićem i hladnjakom. Socket 775. Prima i Quad Core procesore, uključujući Intel Core™ 2 Quad Q9650 (3.00GHz, 12MB, Yorkfield , 45nm, 95W). Ploča se odlikuje mogućnošću klokiranja procesorske sabirnice na 1600MHz FSB, a memorije na 1200MHz.

Kratke specifikacije:

-Supports ® Core™ 2 multi-core and Intel 45nm processors
-Supports DDR2 1200(OC)* memory for outstanding system performance.
-Revolution energy saving design with GIGABYTE Dynamic Energy Saver(DES) technology.
-Ultra Durable 2 motherboard features High Quality CPU Power design with Ferrite core chokes, Low RDS (on) MOSFET and Solid Capacitors.
-Ultimate graphics performance with PCI-E x16 interface
-Integrated SATA 3Gb/s with RAID function
-Features high speed Gigabit Ethernet
-Audio controller from ALC 889A codec, featuring 106 dB Signal to Noise ratio and supporting for Blu-ray.
* Please refer “Memory Support List” for memory support information.

Detaljnije specifikacije:

CPU:

-Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
-L2 cache varies with CPU
-1600 (O.C.)/1333/1066/800 MHz FSB

Chipset:

-North Bridge: Intel® P35 Chipset
-South Bridge: Intel® ICH9R

Memory:

-4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
-Dual channel memory architecture
-Support for DDR2 1200 (O.C.)/1066/800/667 MHz memory modules
Please refer "Memory Support List" for memory support information.

Audio:

-Realtek ALC889A codec
-High Definition Audio
-2/4/5.1/7.1-channel
-Support for S/PDIF In/Out
-Support for CD In

LAN:

-Realtek 8111B chip (10/100/1000 Mbit)
-Expansion Slots
-1 x PCI Express x16 slots
-3 x PCI Express x1 slots
-3 x PCI slots

Form Factor:

-ATX (305 x 210mm)

Storage Interface:

South Bridge:
-6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
-Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors (GSATAII0, GSATAII1) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB:

-Integrated in the South Bridge
-Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors:

-1 x 24-pin ATX main power connector
-1 x 4-pin ATX 12V power connector
-1 x floppy disk drive connector
-1 x IDE connector
-8 x SATA 3Gb/s connectors
-1 x CPU fan header
-2 x system fan headers
-1 x power fan header
-1 x front panel header
-1 x front panel audio header
-1 x CD In connector
-1 x S/PDIF In header
-1 x S/PDIF Out header
-2 x USB 2.0/1.1 headers
-1 x parallel port header
-1 x serial port header
-1 x chassis intrusion header
-1 x power LED header

Back Panel Connectors:

-1 x PS/2 keyboard port
-1 x PS/2 mouse port
-1 x coaxial S/PDIF Out connector
-1 x optical S/PDIF Out connector
-8 x USB 2.0/1.1 ports
-1 x RJ-45 port
-6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller:

-iTE IT8718 chip
-H/W Monitoring
-System voltage detection
-CPU/System temperature detection
-CPU/System/Power fan speed detection
-CPU overheating warning
-CPU/System/Power fan fail warning
-CPU fan speed control

BIOS:

-Supports DualBIOS Plus
-2 x 8 Mbit flash ROM
-Use of licensed AWARD BIOS
-PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.

Unique Features:

-Support for @BIOS
-Support for Download Center
-Support for Q-Flash
-Support for EasyTune
-Support for Xpress Install
-Support for Xpress Recovery2

Za bilo kakav upit slobodno me kontaktirajte.
Primopredaja u Zagorju, a na ostale lokacije u HR šaljem poštom ili Tiskom.

Pogledajte moj njuškalo profil. Dajem popust ako se uzme više komponenti.
