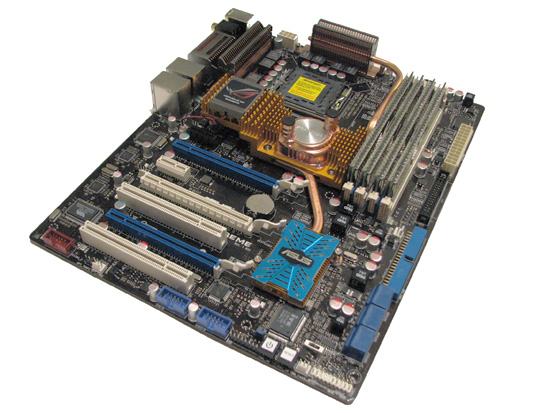

Asus Striker II Extreme - top 775 soket matična ploča

prodaje se kolekcionarski primjerak nažalost neispravan..uzrok kvara ne znam
sa procesorom Intel C2D cpu ispravan

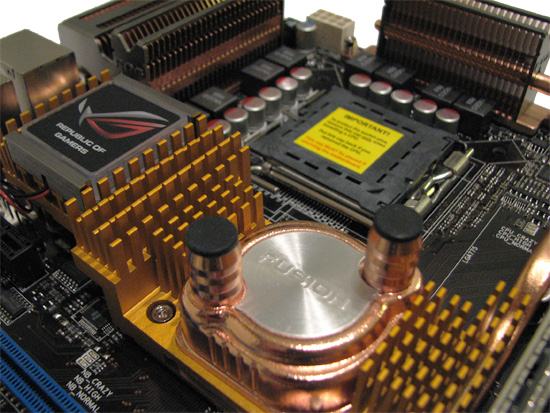

Brdo opcija...ima čak tvorničku pripremu za vodeno hlađenje
cijena 100kn komplet

ASUS Striker II Extreme
Market Segment Ultimate Gamer / Extreme Overclocking - $349.99 (estimated)
CPU Interface Socket T (LGA775)
CPU Support LGA775 Core2 Duo/Extreme/Quad, Pentium EE, Pentium D, Pentium including next-generation 45nm CPU support
Chipset NVIDIA nForce 790i Ultra SLI SPP and MCP (570)
CPU Clock Multiplier 6x ~ 11x, downward adjustable for Core2, upward to 60x for Core2 Extreme, including half-multiplier support for 45nm processors
Front Side Bus Speeds Auto, installed CPU default to 700MHz in 1MHz increments
System Bus Speeds 1600 / 1333 / 1066 / 800 MHz
FSB Memory Clock Modes Auto, Linked, Unlinked
DDR3 Memory Ratios Auto (depends on installed CPU default FSB), 5:4, 3:2 and Sync Mode (2:1)
PCIe Speeds Auto, 100MHz ~ 200MHz in 1MHz increments
PCI 2.0 bus can be adjusted separately from PCI 1.x bus
SPP-to-MCP Link Speeds Auto, 200 ~ 500Mhz in 0.5MHz increments to 210MHz then 1MHz steps
HT Multipliers 1x ~ 5x for SPP->MCP and MCP->SPP
EPP 2 Profile Support Enabled (DDR3-2000 operation), Disabled
DRAM Timing Controls Optimal or Expert (Manual) - tCL, tRCD, tRP, tRAS and CPC
Advanced Memory Settings Auto or Manual - tRRD, tRC, tWR, tWTR, tFAW, tRTP, tRFC and tREF
DRAM Command Per Clock Auto, 1T, 2T
MCH P1/P2 Adjustments Enabled, Disabled
CPU Core Control Enabled, Disabled for each core (excluding Core 0)
CPU Voltage Auto, 1.10000 ~ 2.40000 in 0.00625 increments
Loadline Calibration Enabled, Disabled
CPU PLL Voltage Auto, 1.50V ~ 3.00V in 0.02V increments
CPU VTT Voltage Auto, 1.20V ~ 2.46V in 0.02V increments
Memory Voltage Auto, 1.50V ~ 3.10V in 0.02V increments
NB Core Voltage Auto, 1.30V ~ 2.20V in 0.02V increments
SB Core Voltage Auto, 1.50V ~ 1.85V in 0.05V increments
CPU GTLVREF Lane Voltages Auto, Default, -226mV ~ +224mV for each CPU GTL reference voltage
NB GTLREF Lane Voltage Auto, Default, -126mV ~ +160mV for each CPU GTL reference voltage
DDR3 REF Voltages Auto, Default, -126mV ~ +160mV for each DDR3 channel
Memory Slots Four 240-pin DDR3 DIMM Slots
Dual-Channel Memory Architecture
Regular Unbuffered, non-ECC DDR3 Memory to DDR3-1333, 8GB Total
Supports SLI-Ready EPP 2 Memory to DDR3-2000
Expansion Slots 2 - PCIe 2.0 x16, supports NVIDIA SLI and Quad-SLI Technology
1 - PCIe (1.x) x16, allows NVIDIA 3-way SLI with 8800GTX/Ultra
2 - PCIe (1.x) x1, one compatable with audio solution
2 - PCI Slot 2.2
Onboard SATA RAID 6x SATA 3.0Gbps Ports - nForce MCP (NVIDIA MediaShield RAID 0, 1, 0+1, 5 and JBOD)
Onboard IDE/Additional SATA Jmicron JMB363 SATA Controller (2 external eSATA ports)
Onboard USB 2.0/IEEE-1394 10 USB 2.0 Ports - (6) I/O Panel, (4) via headers
2x 1394a Ports - (1) I/O Panel, (1) via header
Onboard LAN (with Teaming) Dual NVIDIA nForce LAN with DualNet and FirstPacket Technology
Onboard Audio 8-channel HD Audio (Azalia) CODEC
Power Connectors ATX 24-pin, 8-pin EATX 12V
I/O Panel 1 x PS/2 Keyboard
2 x SPDIF - (1) Optical Out, (1) Coaxial Out
2 x External eSATA
1 x IEEE-1394a port
2 x RJ-45 (LAN)
6 x USB 2.0
CMOS Reset Button
8 Channel Audio I/O (optional included SupremeFX II Audio Card)
Fan Headers 8 - (1) CPU, (1) Power, (6) Chassis
BIOS Revision 0511
