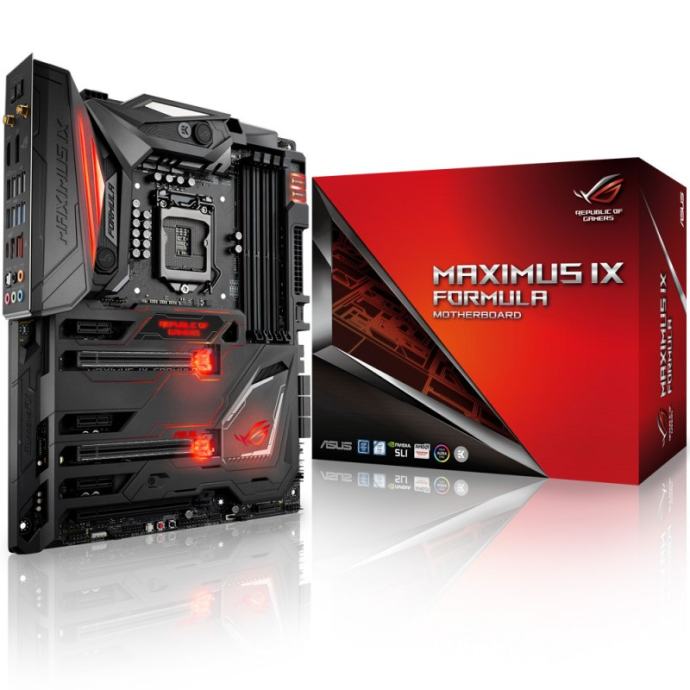

Asus Maximus IX Formula z270

Maticna ploca, kupljena u Uzi shopu 02/2017, garancija, full bundle.
PRODUCT INFORMATION - ROG MAXIMUS IX FORMULA INTEL Z270 (SOCKET 1151) DDR4 ATX MOTHERBOARD

Enthusiast Motherboard (ATX) with Z270 Chipset, with 3× PCIe 3.0 x16 (x16/x8/x4), 2× USB 3.1 (1x Type A & 1x Type C), 2× M.2 (PCIe 3.0 x4) & 6x SATA 6G, 6× USB 3.0 + and ac-WiFi, 2× RGB-LED Header & ASUS Aura RGB-LEDs The ASUS Maximus IX FORMULA is an ATX motherboard utilising Intel's Z270 chipset for Intel processors from the 6th ("Skylake") and 7th (Kaby Lake) generations on socket LGA 1151. The chipsets from the 200 series, known as "Union Point", come with up to 24 PCIe Express 3.0 lanes and bring more overall HSIO lanes (High Speed I/O) as well, thereby enabling more internal connections (such as SATA or PCIe slots) to be used simultaneously. As a Z270 motherboard, the ASUS Maximus IX FORMULA enables overclocking of K-series CPUS, which offer completely unlocked multipliers.

The Features of the ASUS Maximus IX FORMULA - An Overview:

3× PCIe (3.0) x16 (16/8/4) & 3× PCIe (3.0) x1

2× USB 3.1 (Type A & Type C) / 6× USB 3.0

2× M.2 (PCIe 3.0 x4) / 6× SATA 6G

Supports up to 64 GB DDR4-RAM at 4.000 MHz

Includes ac-WiFi module as well as antennae

ASUS AURA RGB-LED lighting

Expandable via the RGB-LED header (4-pin)

CPU overclocking via multiplier & baseclock

The ASUS Maximus IX FORMULA in Detail

The ASUS Maximus IX FORMULA is a luxuriously-featured ATX motherboard with Intel's Z270 chipset offering compatibility with Intel's processors from the 6000 and 7000 series. This black-themed board comes with three PCIe x16 slots, of which one is connected to the chipset via 16 full lanes, while the other two PCIe x16 slots are connected electrically via 4 or 8 data links respectively. For I/O and expansion card support, the board provides three PCIe x1 slots and furthermore comes with support for NVIDIA's SLI and AMD's CrossFireX technology.

The motherboard provides DDR4 RAM compatibility over 4 DIMM slots in ultra-fast dual-channel mode. The memory banks take up to 64 GB RAM and, depending on the processor installed, supports memory clocks of either 2.133 MHz (with Skylake CPUs) or 2.400 MHz (with Kaby Lake CPUs), and overclocking also allows memory modules rated at speeds of up to 3.600 MHz.

In order to connect the very fastest data storage devices, the board comes with two M.2 slots for extreme NVMe M.2 SSDs, as well as six SATA 6G ports for 3,5" or 2,5" hard drives and SSDs (including RAID support). The M.2 ports are connected via four PCIe lanes on the 3.0 standard to the chipset and, in combination with the NVMe protocol, enable a data transfer rate of almost 4 GB/s. This allows M.2 PCIe SSDs to function up to eight times faster than SATA 6G SSDs! One of the particularly unique features of the ASUS Maximus IX FORMULA is its compatibility with the ASUS Aura RGB-LED lighting system as well as offering two headers for RGB-LED lighting strips.

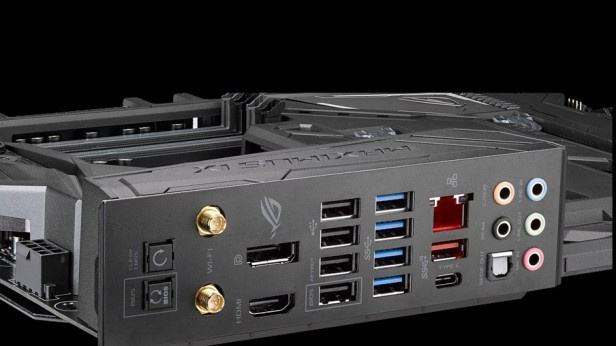

The I/O panel of this motherboard offers connectivity to the new USB specification, USB Type C, a port with a new slim profile and the ability to be plugged in either way. Apart from the Type C port the motherboard also offers backwards compatibility with USB 3.1 Type A. USB 3.1 ports are rated for a maximum achievable throughput of 10 Gbit/s, twice as fast as traditional USB 3.0 ports! As far as input devices and other gaming peripherals are concerned, the I/O panel also offers 4 USB 3.0 and USB 2.0 ports respectively.

Besides the gigabit LAN port, the board provides an onboard WiFi module that is compatible with even the newest and fastest "ac" standard. If no graphics card is available, the integrated GPU on the Skylake or Kaby Lake CPU allows for monitors to be connected directly to the rear of the motherboard - and both HDMI and DisplayPort connectors are available for improved connectivity.

Internally the motherboard offers - among others - MemOK!, Retry-, Reset and SafeBoot buttons, a TMP header, four 4-pin headers for PWM fans, a 4-pin pump header, a 5-pin header for external fans, a ROG EXT front panel connector, LN2 jumper, as well as XMP support and an array of overclocking features.

Technical Details:

Format: ATX

Chipset: Intel Z270 ("Union Point")
Socket: 1151 (for 6th and 7th generation Intel CPUs ("Skylake"/"Kaby Lake")

RAM: 4× DDR4 (Skylake: DDR4 2.133, Kaby Lake: DDR4 2.400, OC max. 4.000 MHz)
Dual-Channel

Slots (physical):
1× PCIe 3.0 x16
1× PCIe 3.0 x16 (electrical x8)
1× PCIe 3.0 x16 (electrical x4)
Compatible multi-VGA configurations: 2-Way SLI (Quad-GPU), 3-Way CrossFireX (Quad-GPU)
3× PCIe 3.0 x1
1× WiFi/Bluetooth Module (incl. 802.11ac)

Internal Connectors:
6× SATA 6G
1× M.2 (PCIe 3.0 x4, 2242/2260/2280/2110)
1× M.2 (PCIe 3.0 x4, 2242/2260/2280/)
1× USB 3.1 Front Panel Connector
2× USB 3.0 (one header)
2× USB 2.0 (one header)
2× Aura RGB-LED Strip Header
1× TPM Header
3× Fans (4-Pin PWM)
1× CPU Fan (4-Pin PWM)
1× CPU OPT Fan (4-Pin PWM)
1× Pump Connector (4-Pin)
1× MemOK! Button
1× LN2 Mode Jumper
1× Start-. Safe- & Reset Button
1× Thermal Sensor Header
1× MemOK! Button
Power/Reset/LED/Front Audio

External Connectors:
1× PS/2 Keyboard/Mouse
2× USB 3.1 (1× Type A and 1x Type C)
4× USB 3.0
4× USB 2.0
1× Gigabit LAN (Intel I219-V)
2× WiFi Antennas (M.2 WiFi Slot)
1× HDMI 1.4b
1× DisplayPort 1.2
1× USB BIOS Flashback Button
1× Clear CMOS Button
1× S/PDIF (optical)
5× Audio (7.1 ROG SupremeFX S1220)

Power Supply:
1× 24-Pin EATX
1× 8-Pin ATX 12V
