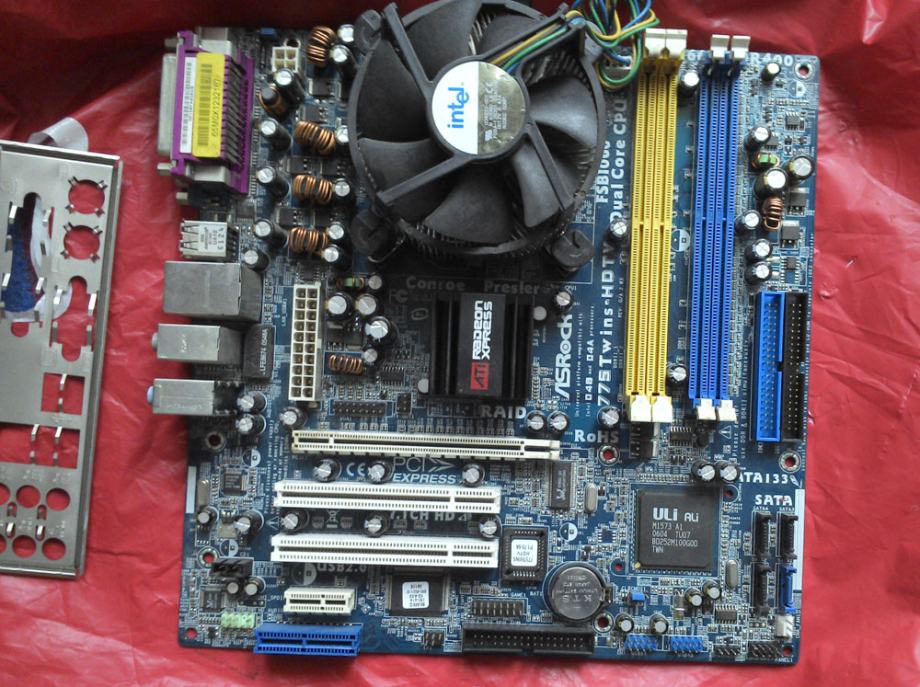

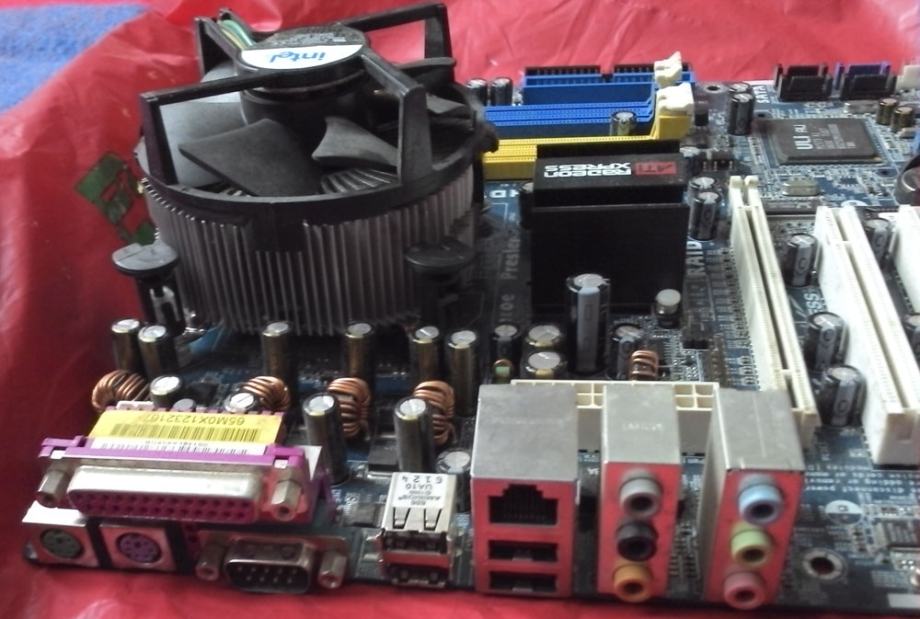

ASRock 775Twins-HDTV Socket 775 FSB1066

Prodaje se matična ploča navedena u naslovu oglasa, u potpunosti ispravna, izvađena iz konfiguracije koja je služila kao uredsko računalo. Prima dvojezgrene procesore do Pentium D i Pentium Extreme. Podržava dvije vrste memorija, DDR (do 2GB DDR400) i DDR2 (do 4GB DDR2 667). Ima PCI-E slot za grafičku i ukupno 4 SATA slotova. Ploča dolazi s limićem i hladnjakom za procesor.

Kratke specifikacije:

-LGA 775 for Intel® Dual Core Pentium® XE and Pentium® D / Pentium® 4 / Celeron® D processor
-ATI™Radeon Xpress 200
-ULi® 1573 Chipset
-Supports FSB1066/800/533MHz processor, EM64T CPU and H-T Technology
-Supports DDR2 667 and DDR400 (DDR2 and DDR are supported separately)
-DirectX 9.0 on board VGA, Pixel Shader 2.0, Max. shared memory 128MB
-Integrated ATI X300-based 2D/3D graphics
-Hybrid Booster - Safe Overclocking Technology
-PCI Express x16 slot
-PCI Express x1 slot
-4 ports of SATA 1.5Gb/s, support RAID 0, 1, JBOD, 2 ATA133 IDE ports
-7.1 Channel Superior Quality Audio, 10/100 Ethernet LAN

Detaljnije specifikacije:

CPU:

- LGA 775 for Intel® Dual Core Pentium® XE and Pentium® D / Pentium® 4 / Celeron® D processor
- FSB 1066/800/533 MHz
- Supports EM64T CPU
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology

Chipset:

- Northbridge: ATI™ Radeon Xpress 200
- Southbridge: Uli 1573

Memory:

- 2 x DDR DIMM slots
- Supports DDR400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB
- 2 x DDR2 DIMM slots
- Supports DDR2 667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*

*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® XP 64-bit.
**DDR2 and DDR are supported separately

BIOS:

- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support

Graphics:

- Integrated ATI X300-based 2D/3D graphics
- DirectX 9.0
- Pixel Shader 2.0
- Max. shared memory 128MB

Audio:

- Realtek ALC850 7.1 channel AC'97 audio codec

LAN:

- Realtek PHY RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE

Slots:

- 2 x PCI slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 1 x AMR slot

Connector:

- 4 x SATA 1.5 Gb/s connectors (Support RAID 0, 1, 0+1, JBOD) (No support for Hot Plug function)
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

ASRock 8CH I/O:

- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature:

-Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Form Factor:

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Za bilo kakav upit slobodno me kontaktirajte.
Primopredaja u Zagorju, a na ostale lokacije u HR šaljem poštom ili Tiskom.

Pogledajte moj njuškalo profil. Dajem popust ako se uzme više komponenti.
