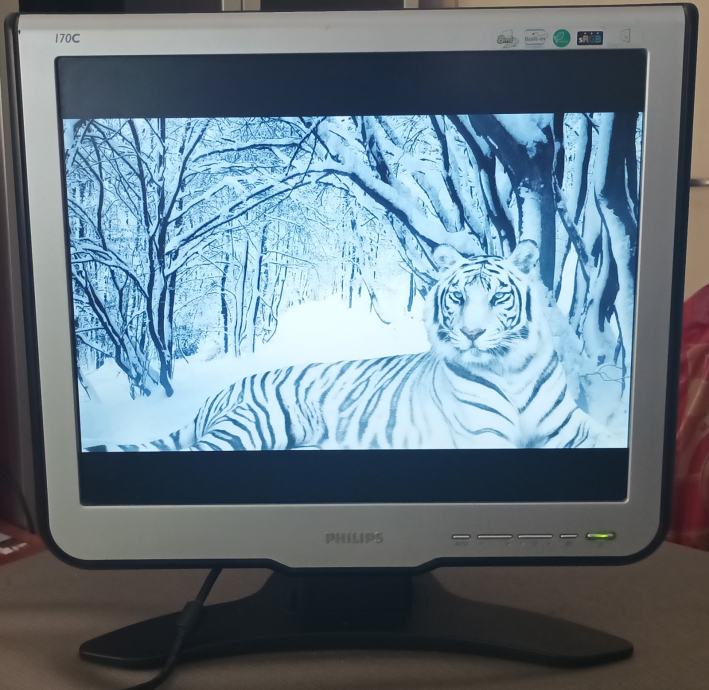

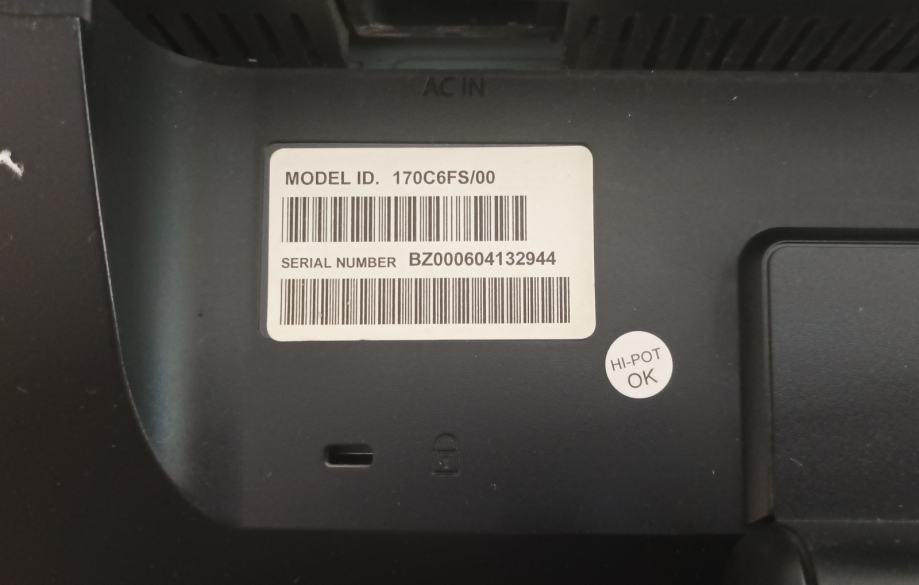

LCD monitor 17" SXGA Philips Model 170C6FS/00

100% ispravan, s pripadajućim kabelima.

Specifikacije:

Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43.3 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 500:1
• Display colors: 16.2 M
• Viewing angle: @ C/R > 5
• Viewing angle (H / V): 160 / 145 degree
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Recommended Resolution: 1280 x 1024 @ 60 Hz
• Factory Preset Modes: 15 modes
• User definable modes: 50 modes
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
• sRGB
Connectivity

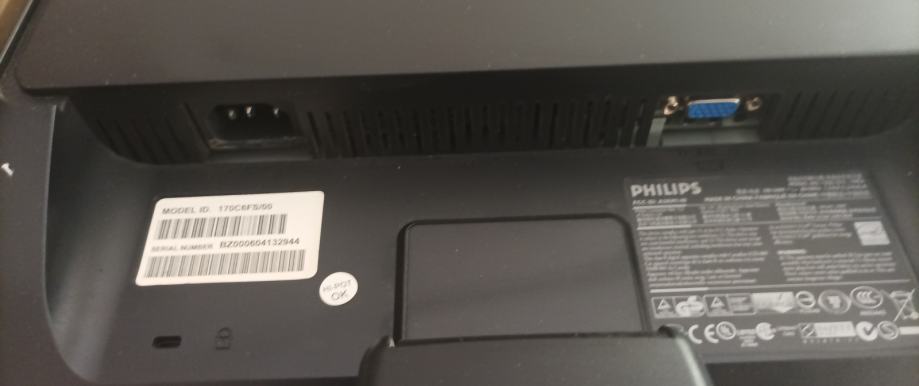

• Signal Input: Analog (VGA)
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green
Convenience
• Buttons and controls: Front keys
• Convenience Enhancements: On-screen Display,
SmartControl
• Monitor Controls: Auto, Brightness Control, Left/
Right, Menu (OK), Power On/Off, Up/Down
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP

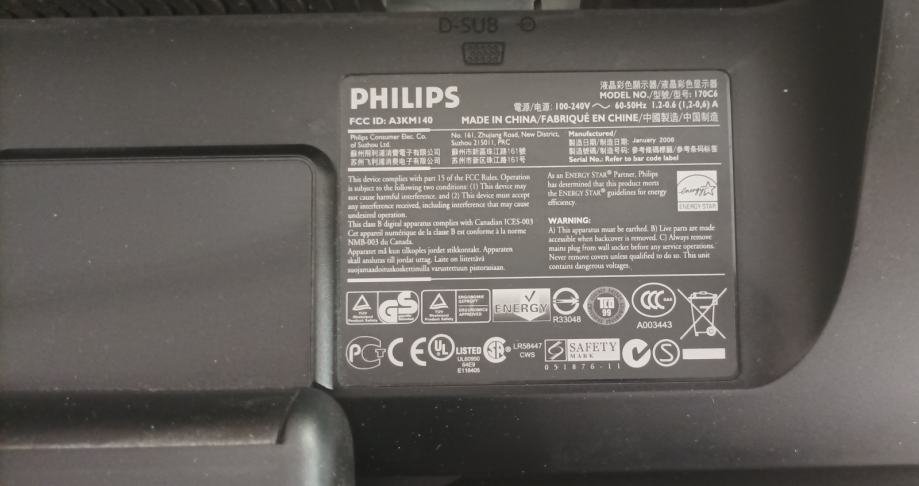

• Regulatory Approvals: CE Mark, E2000, EMC,
FCC-B, UL, CSA, Energy Star, SEMKO, TCO '99,
TÜV/GS, TÜV Ergo
• Tilt: -5° to 20°
Accessories
• Included Accessories: AC Power Cord, VGA cable
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
403 x 392 x 171 mm
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Weight: 4.5 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption: 30W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - green, Stand by/
sleep - Amber
• Power supply: Built-in, 90-264 VAC, 50/60 Hz
