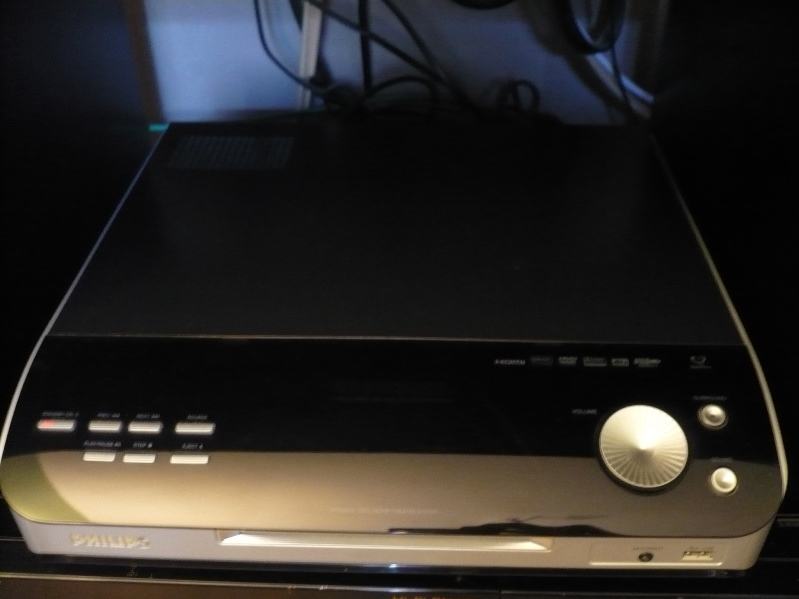

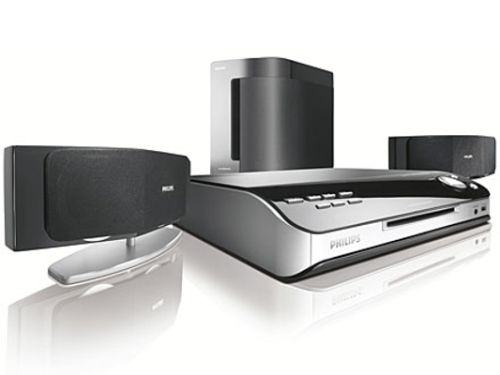

Philips HTS6510

Picture/Display
•D/A converter: 12bit, 108MHz
•Picture enhancement: High Def (720p, 1080i), Video upscaling, Progressive scan

Sound
•D/A converter: 24bit, 192kHz
•Frequency response: 30–20,000 Hz
•Signal to noise ratio: > 65 dB
•Sound System: Ambisound, Dolby Digital, Dolby Prologic II, DTS, Stereo
•Output power (RMS): 2 x 200 W + 1 x 100 W

Loudspeakers

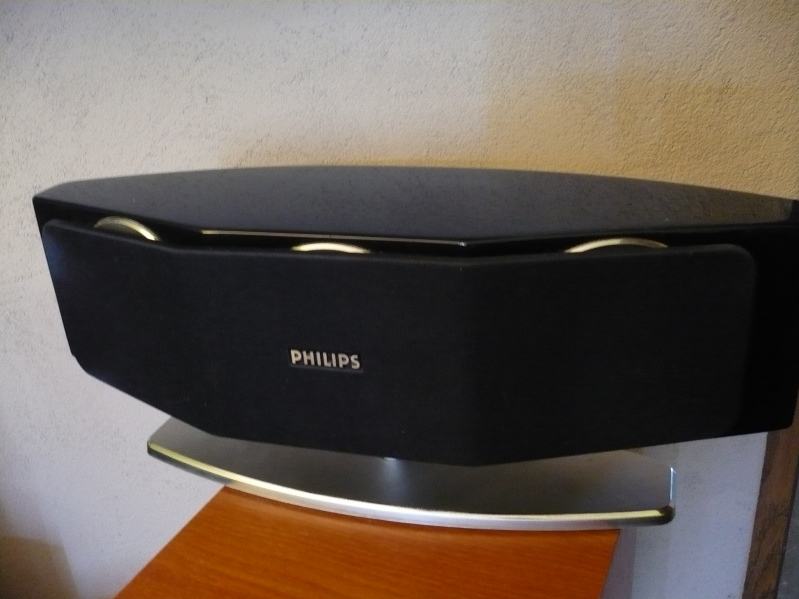

•Satellite Speaker: Magnetically shielded front

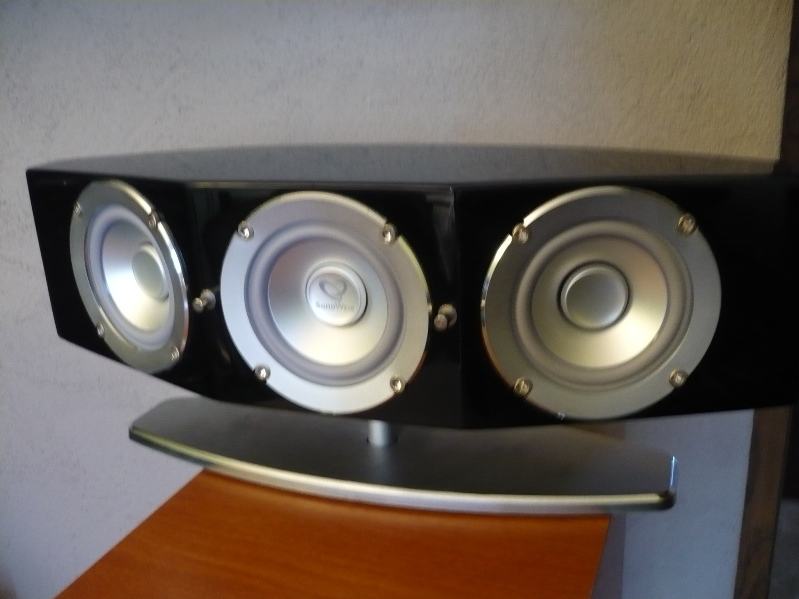

•Satellite speaker drivers: 3 x 2.5" full range woofers
•Satellite speaker freq range: 120-20000 Hz
•Satellite speaker impedance: 8 ohm
•Subwoofer driver: 8" high-efficiency woofer
•Subwoofer freq range: 30-120 Hz
•Subwoofer impedance: 4 ohm
•Subwoofer type: Passive

Video Playback
•Compression formats: DivX 3.11, DivX 4.x, DivX 5.x, DivX 6.0, DivX Ultra, MPEG1, MPEG2
•Playback Media: DVD-Video, DVD+R/+RW, DVD-R/-RW, Video CD/SVCD, CD-R/CD-RW
•Video disc playback system: PAL, NTSC

Audio Playback
•Compression format: MP3, WMA
•Playback Media: Audio CD, CD-R/RW, USB flash drive
•MP3 bit rates: 32-256 kbps and VBR

Still Picture Playback
•Picture Compression Format: JPEG
•Playback Media: DVD+R/+RW, CD-R/RW, USB flash drive
•Picture Enhancement: Slideshow with music playback, Rotate, Zoom

Tuner/Reception/Transmission
•Tuner Bands: FM, AM

Connectivity
•Front/Side connections: MP3 Direct input, USB
•Rear Connections: HDMI output, S-Video out, Composite video (CVBS) output, SCART1 (CVBS, S-video/RGB out), AM/MW Antenna, Easy-Fit Speaker Connectors, Digital coaxial in 2 x, AUX in, Component Video output, FM Antenna

Dimensions
•Set dimensions (W x H x D): 340 x 70 x 330 mm
•Set weight: 3.5 kg
•Surround Speaker dimensions (W x H x D): 320 x 124 x 101 mm
•Surround Speaker Weight: 2 kg
•Subwoofer dimensions (W x H x D): 220 x 370 x 470 mm
•Subwoofer Weight: 7 kg
•Packaging dimensions (W x H x D): 559 x 418 x 524 mm
•Weight incl. Packaging: 17.34 kg

Power
•Power supply: 220-240 V, 50 Hz
•Power consumption: 100 W
•Standby power consumption: < 1 W
