Kućno kino Philips DVD/audio CD home theater surround sound system

Kućno kino dobiveno na ngradnoj igri 2003. godine. Zadnje 3 godine se ne koristi, stoji pospremljeno. Potpuno ispravno i očuvano. Čita klasične DVD i Audio CD formate do MPEG2 generacije (ne podržava mp4 ni mp3).
Preuzimanje u Zagrebu bilo kad ili u Sisku po dogovoru ili slanje poštom.

Priručnik: http://www.scribd.com/doc/35882963/Phillips-DFR1600-Manual

Specifikacije:

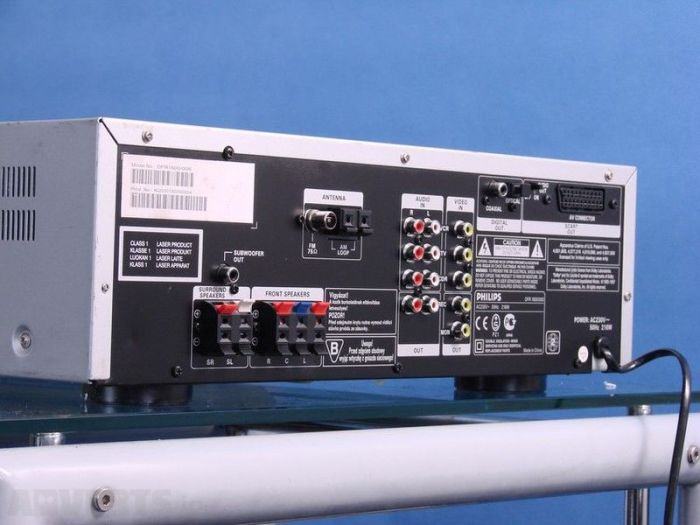

Moguća POVEZIVANJA:

- ANTENA

- AUDIO IN - za spajanje analognih audio vanjskih izvora

- VCR – za spajanje na video player

- TV – connect to Television AUDIO OUT jack

- CDR – connect to CD Recorder AUDIO OUT jack

- VIDEO IN - za spajanje video izvora iz tv-a, cd-roma ili video playera

- DIGITAL OUT (in DVD/CD mode only) Digital Coaxial Output RCA Jack

- S-VIDEO OUT

- VIDEO OUT

- REC – connect to VCR or other recording device

- MON– connect to TV or Monitor

POJAČALO
Power Output
- Output power, stereo mode FTC (40 Hz – 20 kHz) .............. 2 x 60 W
- Output power, surround mode (1 kHz) ................ 70 W RMS / channel
Total Harmonic Distortion .............................. 0.7% at rated power (1 kHz)
Frequency Response ..................................................... 20 Hz – 20 kHz / ±1 dB
Signal-to-Noise Ratio ....................................................................... > 65dB (CCIR)
Input Sensitivity ..................................................................................................... 460 mV
Tone Control .......................................................................................................... ±12 dB

TUNER
Tuning Range ....................................... FM 87.5 – 108 MHz (100 kHz steps)
......................................................................... AM 530 – 1720 kHz (10 kHz steps)
26 dB Quieting Sensitivity .......................................................................... FM 20 dB
26 dB Quieting Sensitivity ...............................................................AM 3162uV/m
Image Rejection Ratio ................................................................................... FM 25 dB
................................................................................................................................. AM 28 dB
IF Rejection Ratio ............................................................................................ FM 60 dB
................................................................................................................................. AM 38 dB
Signal-to-Noise Ratio .................................................................................... FM 60 dB
................................................................................................................................. AM 40 dB
Selectivity ............................................................................................................. FM 20 dB
AM Suppression Ratio ................................................................................. FM 30 dB
Harmonic Distortion ............................................................................FM Mono 3%
................................................................................................................................. Stereo 3%
....................................................................................................................................... AM 5%
Frequency Response ................................................... FM 63Hz-10kHz / ±6 dB
Stereo Separation ......................................................................... FM 26 dB (1 kHz)
Stereo threshold .............................................................................................. FM 28 dB

DVD
Laser Type ................................................................................................ Semiconductor
Disc Diameter .............................................................................................. 12cm / 8cm
Playing Time (12cm) Single Layer ........................................................ 2.12h
Dual Layer .......................................................... 4.01h
Two Sides, Single Layer ............................... 4.26h
Two Sides, Dual Layer .................................. 8.02h
Video Decoding .................................................................................................. MPEG-2
Video DAC ................................................................................................................ 10 Bits

Signal ............................................................................................... PAL / NTSC
Video Format ..................................................................................................... 4:3 / 16:9
Video S/N ........................................................................................... 56 dB (minimum)
Composite Video Output ........................................................ 1.0 Vp-p, 75 ohms
S-Video Output ..................................................................... Y - 1.0 Vp-p, 75 ohms
................................................................................................... C - 0.286 Vp-p, 75 ohms
Audio DAC........................................................................................... 24 Bits / 96 kHz
Frequency Response ................................................. 4 Hz – 20 kHz (44.1 kHz)
................................................................................................... 4 Hz – 22 kHz (48 kHz)
................................................................................................... 4 Hz – 44 kHz (96 kHz)
Digital Output .................................................................. SPDIF Coaxial & Optical

SUBWOOFER

Output power ............................................................................... 100 W (4 Ω, DIN)
THD .............................................................................................................. 10% at 55 Hz
Reproduction frequency response .......................................... 30 Hz – 110 Hz
Phase switch ............................................................................................................0O, 180O
Input sensitivity (Subwoofer In) ..........................................................200 mVrms

Power Consumption ............................................... 70 W (at 1/8 Rated Power)
