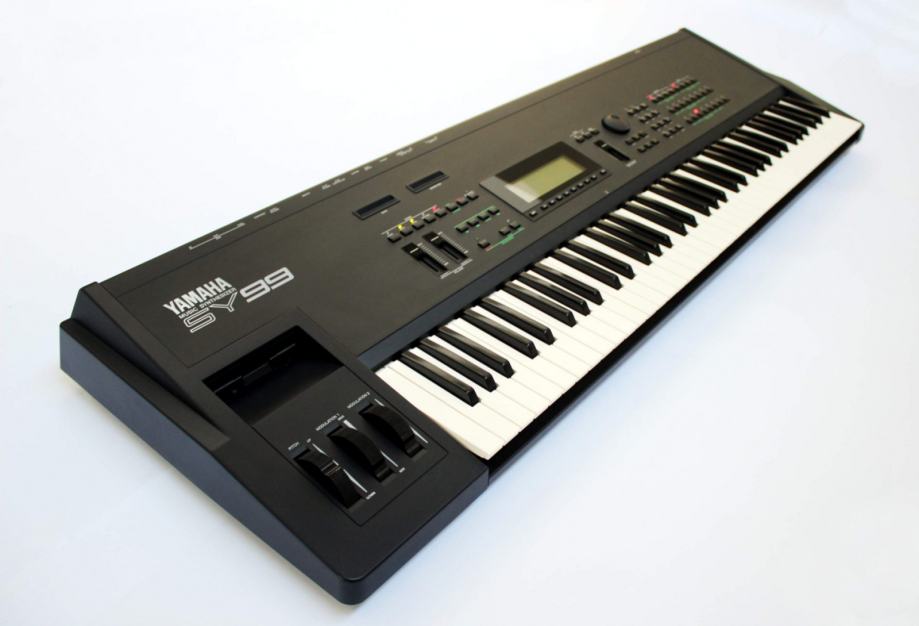

YAMAHA SY99 Music Synthesizer

Yamaha SY99 legendarna FM/AWM/RCM klavijatura, workstation-synthesizer. Zadnji O.S. ROM 1.57 SEQ.1.20. Bocne plasticne stranice malo ostecene. Treba zamjeniti 4 tastera-prekidaca, lastik od FDD-a i foliju pozadinskog osvjetljenja display-a. Klavijatura je funkcionalana i moze se koristiti i bez servisiranja prije navedenih stvari. Original slike-videa saljem na upit. Moguce zamjene.

Specifications:
Tone Generator/ Realtime Convolution and Modulation (RCM)
Tone Generator/ AWM2 16 bit linear waveform data maximum 48 kHz sampling frequency
Tone Generator/ AFM 6 operators, 45 algorithms, 3 feedback loops, 16 waveforms, modulation from AWM output
Tone Generator/ Filter Time variant IIR (infinite impulse response) digital filters, 2 filters for each element (maximum of 8 filters per voice)
Tone Generator/ Maximum simultaneous notes 16 (Voice mode), 32 (Multi mode)
Maximum simultaneous timbres 1 (Voice mode), 16 (Multi-mode)
Note Assignment Last note priority, DVA (dynamic voice allocation)
Keyboard 76 notes, key velocity sensitivity, channel aftertouch (with zoned aftertouch)
DSP effects 2 units, 63 effect types
Sequencer/ Tracks 16 (15 tracks + 1 pattern track)
Sequencer/ Songs 10
Sequencer/ Resolution 1/96 of a quarter note (for internal clock), 1/24 of a quarter note (for MIDI sync)
Sequencer/ Maximum simultaneous notes 32
Sequencer/ Capacity Approximately 27,000 notes
Sequencer/ Patterns 99
Sequencer/ Recording Realtime/ step/ punch in
Preset memory 128 voices, 16 multis
Internal memory 64 voices, 16 multis
Waveform memory 4 Mwords (8 Mbytes), 267 sounds
MDR/ sample memory 512 kbytes (expandable to 3 Mbytes)
Card Slots synthesizer data x 1, waveform data x 1
Disk 3.5" floppy disk drive (720 kbyte formatted)
Wheels Pitch, Modulation 1, Modulation 2
Slider Output 1, Output 2, Data Entry
Knobs LCD contrast, Click volume
Dial data entry dial
Panel Switches Mode X 5, Edit/ Compare, Copy/Save, EF.Bypass, Sequencer X 7, Shift, function x 8, Exit, Page (Left/Right Arrow), Jump/Mark, cursor (Up/Down Arrow) (Left/Right Arrow), -1/No, +1/ Yes, numeric keypad 0-9, Enter, -, Memory X 4, Bank X 4, voice select x 16
Display/LCD 240 x 64 pixels (with backlight)
LED red x 11, red/green x 21
Terminals/ Audio output Output 1 (L/1 + 2/ Mono, R/1+2), Output 2 (L,R), Phones
Terminals/ Controller Breath, Foot Volume, Foot Controller, Sustain, Foot Switch
Terminals/ MIDI In, Out, Thru
Power Requirements US and Canadian models: 120 V General model: 220-240 V
Power Consumption US and Canadian model: 35W General model: 35 W
Dimensions 1254 (W) x 407 (D) x 120 (H) mm (4'1-3/8" x 1'4" x 4-3/8")
Weight 19.6 kg (43 lbs 3 oz)

The SY99 is like having a super-sized sampling workstation with the synthesis and sounds of a DX-7mkII. Basically the same as the SY77 it features a larger 76 note keyboard with upgraded synthesis, sample memory, sequencer and more! For its synthesizer section it employs a 6 operator AFM synth engine similar to, if not better than, the original DX's. Sampled preset sounds (AWM2) can then be fused with the AFM sounds to create entirely wild new sounds! And these sounds are quite shapeable thanks to the resonant multi stage Time Variant Filters which offer the ability to recreate the warm analog sounds of classic synths, or something entirely new.

There's an enhanced on-board sequencer section for creating your songs right on the SY99. It's got 16 tracks, from which channel 16 belongs to the built-in drum synthesizer. The sequencer can hold up to 27,000 notes, 99 patterns and 10 songs. And since the SY99 features 16 voices of polyphony for the AFM section, and another 16 voices for the sampled sounds, there are 32 voices to go around to build your song. Not to mention there are 2 digital multi-effects processors which include reverb, delay, chorus, panning and more! Professional features for those of you want to really control and shape your sounds using the unique sounds (and complex synthesis) of a Yamaha FM synth with some special features up its sleeve. It has been used by Vangelis and Chick Corea.
