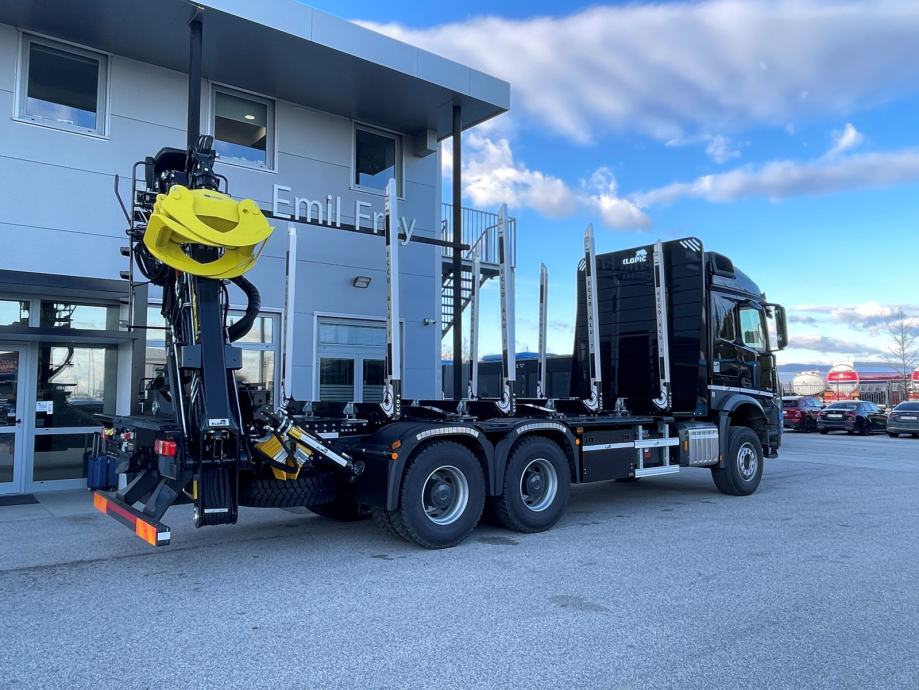

Mercedes-Benz Arocs 3348 L, ŠUMAR - NOVO, 2023 god.

Vozilo se nalazi u Zagrebu, na adresi Kanalska ulica 2F i dostupno je odmah, iskazana cijena vozila je bez PDV-a.

Za dodatne informacije molimo nazvati na broj :
Damir Čančar
099 4356 646

A2G Rear axle, crown wheel 300, planetary, 13.4 t
A5W Axle ratio i = 4.143
B1B Electronic braking system with ABS and ASR
B1F Heating, electronic air-processing unit
B1H Electr. compressed air supply and control, centre
B1Z ABS, disengageable
B2A Disc brakes on front and rear axle
B2D Cover plate for brake discs
B2X Parking brake, electronic
B2Z Parking brake, additional on front axle
B3K Secondary oil retarder
B4M Air reservoir, steel
B5B Trailer brake, 2-line
C2N Wheelbase 4500 mm
C4L Frame overhang 2550 mm
C5H Attachment fixtures, rigid
C5P Bolted frame
C6C Steering, single-circuit
C6J Power steering pump, uncontrolled
C6Q Stabiliser, front axle
C6Y Stabiliser, under frame, rear axle
C7A Rear underride guard (ECE)
C7J Battery carrier, batteries side by side
C8C Rear wing, 2500 mm vehicle width
C8G Wing, three-piece, without EC splash guard
CLW Steering oil cooling

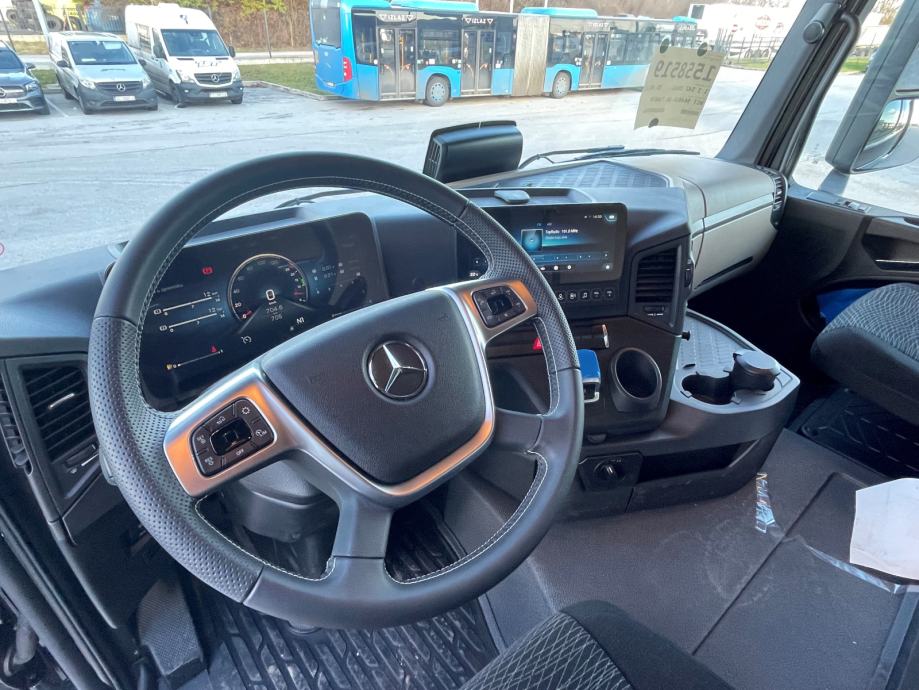

D0A Leather steering wheel
D0L Smoker package
D0S Compressed-air connection, in cab
D1C Driver's suspension seat, comfort
D1N Fold-up co-driver's seat
D2N Driver's seat backrest, release mechanism
D2W Armrests on both sides, co-driver's seat
D2Y Seat belt monitor
D3B Luxury bed, bottom
D3Q Seat cover, velour, driver's seat
D3T Seat cover, velour, co-driver's seat, centre seat
D4Y Sunblind, side, driver's side
D5Y Rubber mats, driver's and co-driver's side
D6F Air conditioning system
D6M Auxiliary hot water heater, cab
D6Z Construction-site filter
D7J Drawers, under bed
D7K Drawer, under dash support
D7Y Luggage rack, top, on rear wall
D8N Tilting sunroof, electric
D8X Seat base, low, 40 mm lower
E0D Battery sensor, Hella
E0F Batteries from company Exide
E1C Batteries 2 x 12 V/220 Ah, low-maintenance
E1N Alternator 28 V/100 A
E3L Socket, 24 V/15 A, co-driver footwell
E3W PSM, 2nd generation
E4C Additional functions, for body manufacturer
E5A No. 1 switch, for non-MB body electrics
E5B No. 2 switch, for non-MB body electrics
E5C No. 3 switch, for non-MB body electrics
E6A Trailer socket, 24 V, 15-pin
E6Y Reverse warning, comb. with hazard warning lights
F0G Side module, N3G vehicle
F0Y Mirror cover, construction vehicle
F1E L-cab StreamSpace, 2.30 m, tunnel 170 mm
F1R L-cab
F2E Floor var. tunnel 170mm, for stowage compart. left
F2G Cab width 2.30 m
F2N Cab, 600 mm attachment height
F2W StreamSpace
F3C Cab mountings, comfort, air-sprung
F3W Cab tilting mechanism, mechanical-hydraulic
F4H Cab rear wall, without window
F4X Stowage compartment exterior flap, left
F4Y Stowage compartment exterior flap, right
F5L Sun visor, exterior, transparent
F5Y A-pillar trim
F6C Windscreen, tinted
F6I Front mirror, heated
F6Q Air horn
F7B Bumper, with steel corners
F7D Bumper centre section w. towing eyes, coupling jaw
F7Y Cab entrance, left/right, movable
F8B 2 remote control keys
F8E Locking system, with central locking
F8F Extended central locking
F8V Light sensor
G0B Powertrain, 44 t to 80 t
G0R Transmission support arms, optimised for removal
G0T Predictive Powertrain Control
G0W Drive program offroad
G2F Transmission G 330-12/11.63-0.77
G5B Double-disc clutch
G5G Mercedes PowerShift 3
G5L PowerShift Advanced
I2H Tyres, tubeless, size 315/80 R 22.5, rear axle
I2P Tyres tubeless, 385/65 R 22.5, fr./lead./trl. axle
I4I Wheel arrangement 6x4
I5H 33.0-tonner
I6A Rigid chassis
I6I Vehicle production plant Wörth
I6K Heavy-duty model series, new generation from 18 t
I6M Heavy-duty vehicles from 18 t, off-road
I6W Leaf suspension, rear axle
J1M Dig. tachograph, 2nd gen., version 2, ADR
J1S Tachograph manufacturer VDO
J2I Standard loudspeaker
J6C Multimedia Cockpit, interactive
K0T Main tank, left
K1E Tank, 390 l, left, 650 x 565 x 1250 mm, aluminium
K3V AdBlue tank, 60 l, left
K5M Tanks, lockable
K5Q Fuel screen, tank filler neck
K5S Protective cap for AdBlue metering system
K5Y Initial filling, additional 30 litres of fuel
K7D Exhaust system, tailpipe to right and outwards
L0A Illumination regulation, in acc. with UN-R 48.06
L0Y Tail lamps wiring harness, extended
L1C LED daytime running lamps
L1H Foglamps, halogen
L1W LED turn signals in light signature
L2H Side marker lamps, flashing
L4Z Protective grille, metal, for headlamps
L9C Pre-installation for additional headlamps, roof
M0A Engine mounts, reinforced
M0C Bottom shell to prevent swirling-up of dust
M0Q Noise regulation acc. to UN-R 51.03, phase 2
M3C Eng. OM471,inline 6, 12.8 l, 350kW (476hp),2300 Nm
M4X Engine version Euro VI, E
M5D 3. Engine generation OM471
M5V High Performance Engine Brake
M6L Air compressor, 2-cylinder
M7I Insect screen in front of cooling system
M7J Guard plate, bumper
M8B Air intake behind cab, mounted
M8Y Fuel pre-filter, chassis-mounted, additional
N1J PTO MB 123-10c, MPA, low/medium-speed
N6Z Transmission oil cooling
NN20 EATU HD GATS2.0
O0A Coolant service interval, long for non-SWR
O1C Fuel pre-filter, 3rd position
O1S Interior colour almond beige
O1Z Steering, indirect
O2N Starter Melco 95P65
O2P HC, transmission PTO under upper edge of frame
P0Q Cover, for wheel arch and engine
Q1N Front spring, 8.0 t, 3-leaf
Q3A Rear spring, 2 x 13.0 t
Q7J Trailer coupling, standard, D40, Ringfeder
Q8F Hand lever, top, for trailer coupling
Q8R End cross-member, reinforced
R0L Tyres, customer request, FA
R0N Tyres, customer request, RA
R0O Tyres, customer request, 2nd RA/twin-ty.trail.axle
R0Z Wheel-nut cap
R1Q 15-degree tapered rims, 9.00 x 22.5
R1T 15-degree tapered rims, 11.75 x 22.5, front axle
R8B Spare wheel jack, under frame end
R8P Spare wheel/spare wheel rim
S5C Speed limiter, 85 km/h
S5Z Cruise control
U1W AdBlue lines, water-heated
U2G Exhaust box
U2I Control code EBS, 4th generation
U2K Control code, high PTO transmission oil level
U2T Control code, exhaust box, rear outlet
U2V Control code, catalytic converter kit 2
U3D Control code, CAN star points, classic
U3F Control code, global AdBlue sensor (GMS DEF)
V0T Vehicle class N3G, off-road vehicle
V0U Overhang angle, front, minimum 25 degrees
V0X Ground clearance under front axle, minimum 250 mm
V0Y Ground clearance under rear axle, minimum 250 mm
V0Z Ground clearance between axles, minimum 300 mm
V1B Arocs
V1Z Grounder
V2J Arocs model generation 5
V8A Chassis number FIN
V9F Technical changes model year April
W5X Weight variant 33.0 t (8.0/13.0/13.0)
X1R Instrument/labels/documentation, Croatian
X2A Model identification, acc. to weight variant
X2E Model plate, EU
X2T Digital Service Booklet
X3Z Powertrain warranty as per T and Cs 3yrs/250,000km
Y1G Allocation OPP top coat line 2
Y1X Pull-out refrigerator, under bed
Y4A Telescopic jack, 12 t/19 t
Y4J 2 wheel chocks
Y4R Inflation aid, for steep-shoulder rims
Y4S Spare bulbs, in box
Y4W Tool kit, extended
Y4X Tyre inflating hose, 25 m
Y4Z Compressed-air gun, with hose
Z1H EBS, Wabco
Z1X EAPU equipment, item 1
Z3D Switch module 2, type B
Z3F Switch module 7
Z3H Side marker lights, 1st pair
Z3J Side marker lights, 3rd pair
Z3K Side marker lights, 4th pair
Z3Z Export code
Z4M Fan ratio, 1:1.0, fan output increased
Z4O Tank cross-section, narrow
Z4Q Tank cross-section, low
Z5E OM 471
Z5G Fan position, on crankshaft
Z5M PTO, single
Z5P Clutch supplier F&S
Z5S Power take-off, pump, under top edge of frame
Z5V Starter with M10, HDEP
Z5X Left-hand drive
Z5Y Vehicle, for right-side traffic
Z7J Aluminium battery lines

Nadogradnja: Klopić d.o.o.

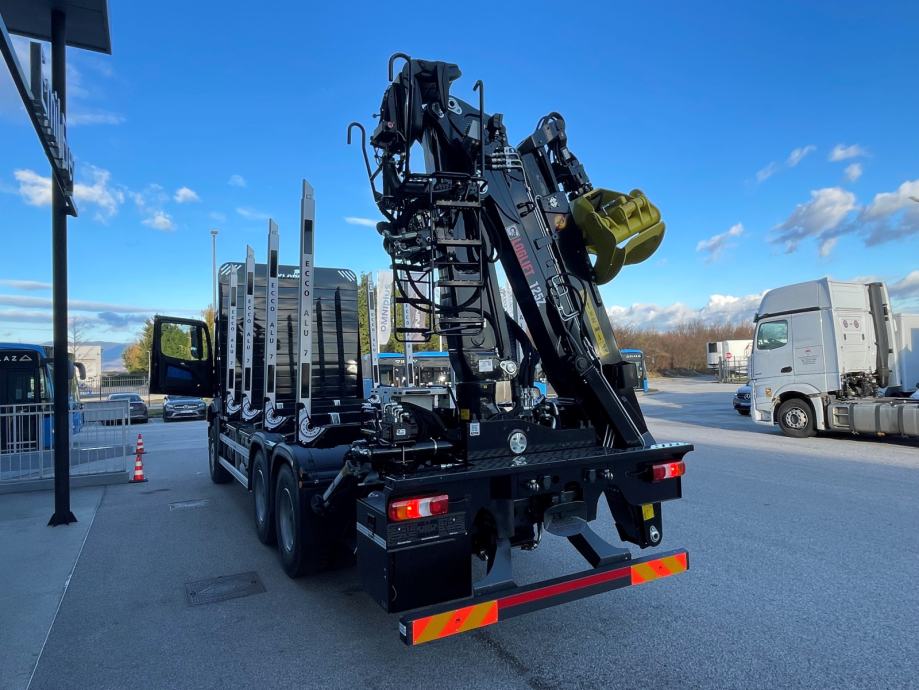

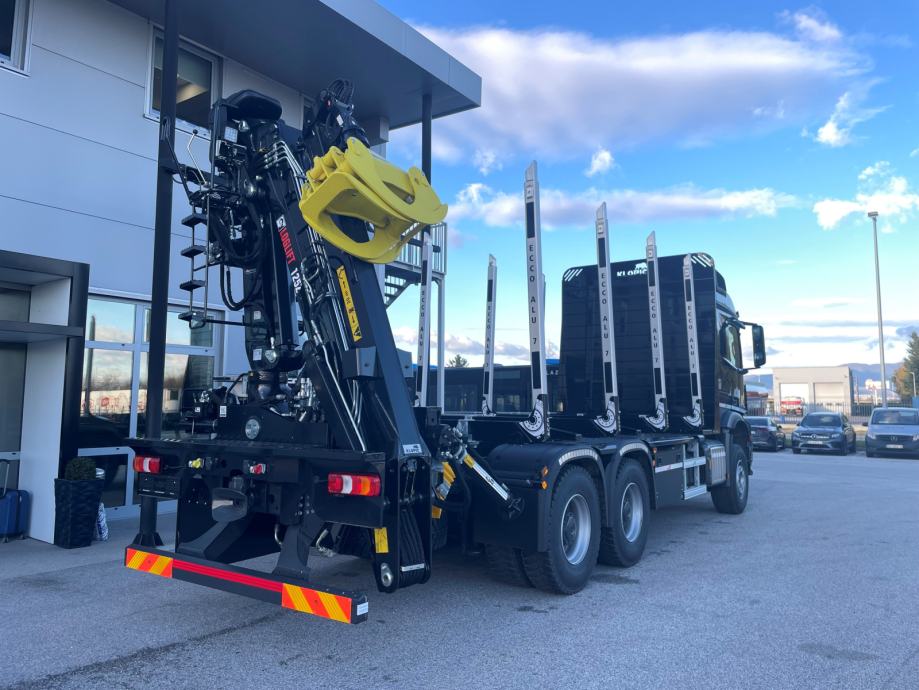

•Dizalica: Loglift 125Z80
•Pomoćna šasija Z-profil 8mm
•zaštitni zid kabine od elemenata metalnih + KTL
• podnica od metala + KTL
• 4 para štica ECCO 7 t
•pumpa sunfab 2x53l
•hladnjak ulja 200l ASA
•Sanduk za ala (2 komada)
•posuda za pranje ruku
• hidraulični tak ulja 200 lit HIAB
