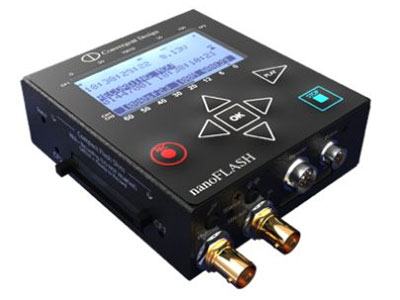

Convergent Design nanoFlash HD/SD Recorder/Player with 2 CF Card Slots

- Profesionalni HD/SD Player/Recorder sa HDMI izlazom
- Vrhunska HD snimka

- Montiran na kameru ili kao standalone recorder/player, moze snimati higher quality images than the native camera, using the camera’s uncompressed 4:2:2 HD-SDI or HDMI output.
- MOV, .MXF, .MPG, .M2V File Formats
- Ultra-compact, camcorder mountable, 7.5W active / 0.2 W Standby
• Comprehensive Digital I/O: HD/SD-SDI and HDMI: 1080i, 1080p, 1080psf, 720p, 480/576i
• Utilizes Affordable Compact Flash Media
• Analog Audio Input (3.5 mm Unbalanced Stereo or Balanced Mono), Analog Output (3.5 mm Headphone)

Selectable Quality / Record Rates
• Master Quality - I-Frame Only : 160/220 Mbps 4:2:2 I-Frame Full-Raster
• Master Quality - Long GOP : 100/140/160 Mbps 4:2:2 Long-GOP Full-Raster
• Broadcast TV Mode: 50 Mbps 4:2:2 Long-GOP Full-Raster
• Proxy Mode: 19 Mbps 4:2:0 Long-GOP 1440x1080

Applications
• Upgrades the built-in recording capability of an existing camera:
4:2:0 to 4:2:2
1440 x 1080 to 1920 x 1080 raster
25/35 Mbps to 100/160/220 Mbps
Long-GOP and I-Frame
• Upgrades to tapeless workflow, and provides video assist
• Play / Edit directly from the Compact Flash Card
• No transcode or data re-wrap required
• Tapeless workflow: no ingest, metadata support

NLE Support
• Final Cut Pro: All Formats
• Avid Media Composer: All Formats
• Edius: All Formats
• Matrox Axio: All Formats
• Vegas: Long-GOP Formats only
• Premiere: 35 Mbps 4:2:0 only (full support pending)


Professional Compact, Lightweight HD/SD Player/Recorder
Upgrade the video/audio quality of your existing camera.

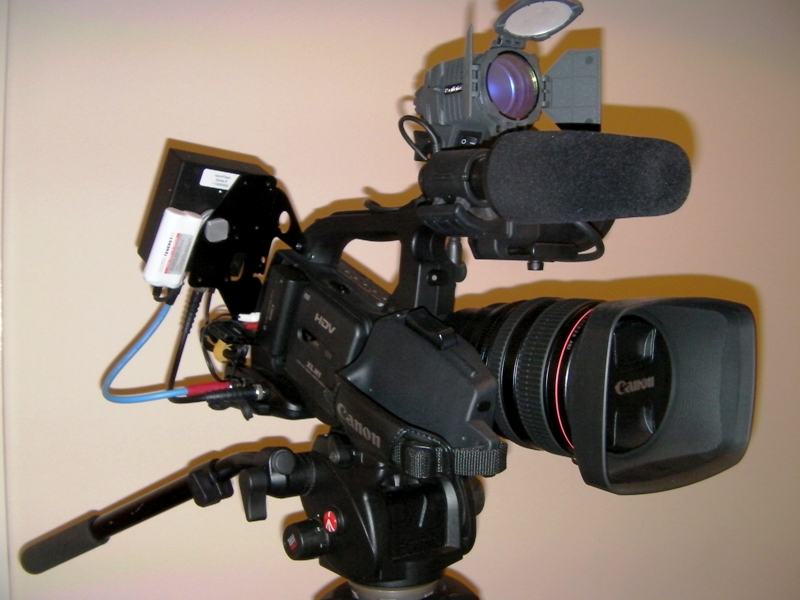

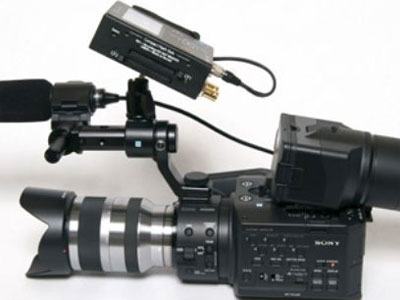

Easily mounted to your camera, nanoFlash is designed to record higher quality images than the camera itself, by capturing never-compressed video/audio from the HD-SDI or HDMI output.

nanoFlash utilizes the very high-quality Sony XDCAM 422 CODEC, recording the video/audio onto affordable and readily available Compact Flash Media, at up to 160Mbps (Long-GOP) or 220 Mbps (I-Frame). The footage can be stored in either Quicktime (MOV), MXF, or MPG file formats, providing near-universal NLE support as well as DVD / Blu-Ray authoring formats.

Record direct from an HD-SDI to cheap and easily available CompactFlash cards and record direct to your NLE systems file type. No more transcoding. With variable frame rates at your disposal you can record at 50/100 Mbps (Long GOP) or 220 Mbps (I Frame only).

As both a recorder and player, nanoFlash supports HD-SDI (in/out) as well as LTC in, wired remote control and power/start/tally light connector.

nanoFlash Advantages
• Upgrade the video/audio quality of your existing camera:

◦ 4:2:0 → 4:2:2 (color)
◦ 1440x1080 → 1920x1080 (full-raster)
◦ 25/35 Mbps → 50/100/140/160/220 Mbps (bit-rate)
◦ Compressed 16-bit audio → Uncompressed 24-bit audio
• Tapeless Workflow
• Enhance recording capabilities of your camera with pre-record buffer, pull-down removal, interval recording, redundant recording, etc.
• Portable HD/SD recorder for switcher output
• Real-time DVD / Blu-Ray Encoding (.mpg file)
• Field-proven in extreme locations: high/low temps, altitude, underwater, etc.
• Works with most cameras (HD-SD/SDI or HDMI output and compatible format)

nanoFlash from Convergent Design records video, audio and timecode from an HD-SDI stream onto CompactFlash (CF) cards, employing the high quality Sony 4:2:2 MPEG2 codec for compression. Boasting an incredible small size and super low power consumption, nanoFlash stands poised to revolutionize the broadcast video industry.

The camera-mountable nanoFlash, a miniaturized version of the award winning Flash XDR, has two CF card slots and embedded audio support only. nanoFlash can be powered from a camcorder battery (6.5-20VDC) and records 1080i60/50, 1080p30/25/24 or 720p60/50 at full raster (1920 x 1080i/p and 1280x720p) 4:2:2 MPEG2 at 50/100 Mbps (Long GOP) or 100/160 Mbps (I Frame only). As both a recorder and player, nanoFlash sports HD-SDI I/O as well as LTC in, wired remote control and a power/start/tally light connector.

Records To Readily Available CF Memory Cards 32GB Compact Flash cards, available for a fraction of the cost of other professional video cards, enables 140/70 minutes of record time of high quality 50/100Mbps 4:2:2 footage per load of two cards (bit rates above 100Mbps require the 300X 16GB CF cards). Unlike FireWire based hard disk recorders, which merely copy the native camera video quality, nanoFlash can encode a live camera's "never compressed" HD SDI output to a much higher quality, higher bitrate with less compression, eliminating most of the mosquito noise and blurring artifacts. Full raster 1920x1080 (as opposed to 1440x1080 or 1280x1080) processing, coupled with 4:2:2 color (instead of 4:2:0), greatly improves horizontal resolution as well as keying and compositing operations.
Optional ASI I/O Firmware Upgrade nanoFlash can be further enhanced with an ASI I/O firmware upgrade (pricing TBD). ASI I/O (MPEG2 TS) enables use of nanoFlash in HD ENG/EFP (live news coverage) and video over IP applications. Programmable bit rates from 17.5 to 100 Mbps easily support microwave and satellite transmissions. . UPC: 837654248249 Resolutions 1080i 60/59.94/50,
1080p 30/29.97/25/24/23.98,
720p 60/59.94/50, 486i/576i
XDCAM HD 422 (I-Frame Only) at 100/140/160/220 Mbps
XDCAM HD 422 (Long-GOP) at 50/100/140/160 Mbps
XDCAM EX at 35 Mbps
IMX 422 (Standard-Def) at 50 Mbps
Audio: PCM 24-Bit (recording) / MPEG1 Layer II (ASI)
Recording Time (with two 32GB CF cards)

420 minutes at 19 Mbps
160 minutes at 50 Mbps
80 minutes at 100 Mbps
50 minutes at 160 Mbps

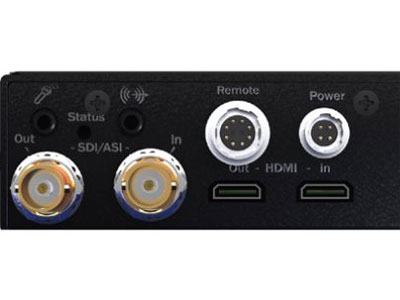

Signal Connectors Video In: HD/SD SDI x1, HDMI x1
Video Out: HD/SD SDI x1, HDMI x1
Audio In: 3.5mm Mini x1 (2-CH)
Audio Out: 3.5mm Mini x1
Control: wired remote control port x1
Power Requirements 6.5-19.5VDC
Power Consumption 6W active, 0.1W standby
Dimensions (WxHxD) 4.2 x 3.7 x 1.4" (107 x 94 x 36mm)
Weight 1 lb (400g)


http://www.hdrentals.tv/products/recorders-decks/nano-flash/

https://vimeo.com/30322456

http://cvp.com/index.php?t=product/convergent_nanoflash

https://www.abelcine.com/store/Convergent-Design-nanoFlash-HD-SD-Recorder-Playerr/

https://www.google.hr/url?url=https://www.convergent-design.com/nanoflash-downloads/nanoflash_manual-pdf.raw&rct=j&frm=1&q=&esrc=s&sa=U&ved=0CBgQFjABahUKEwjljZr7otnIAhWK0hoKHfjiDe0&usg=AFQjCNGk_UnraNlP4su64FAi6TuXsMUK7A

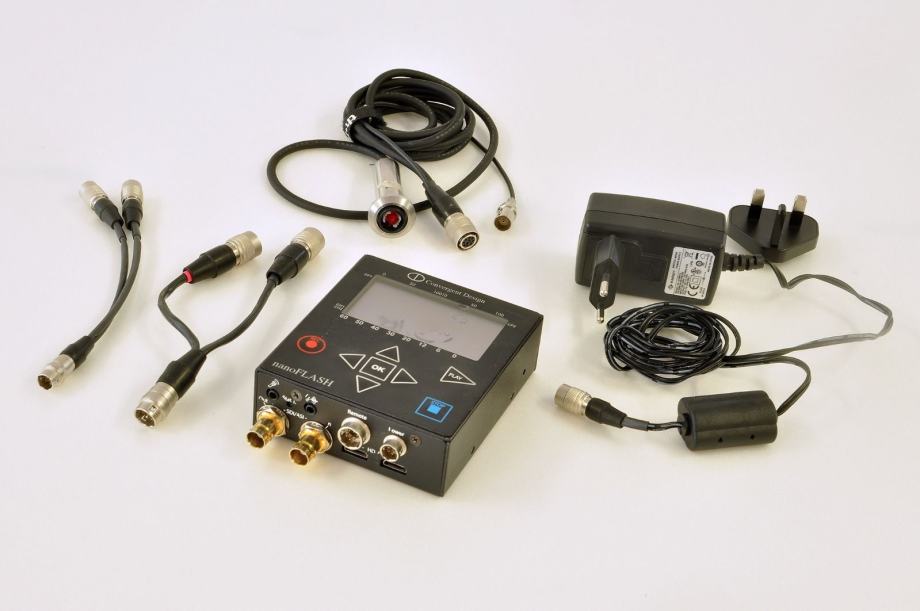

Sa pripadajucim kablovima

Savrseno ispravan, kao nov

------------------------

- Preuzimanje u Zagrebu osobno ili saljem postom

- Pogledajte i ostale moje oglase !
