Canopus NX 1

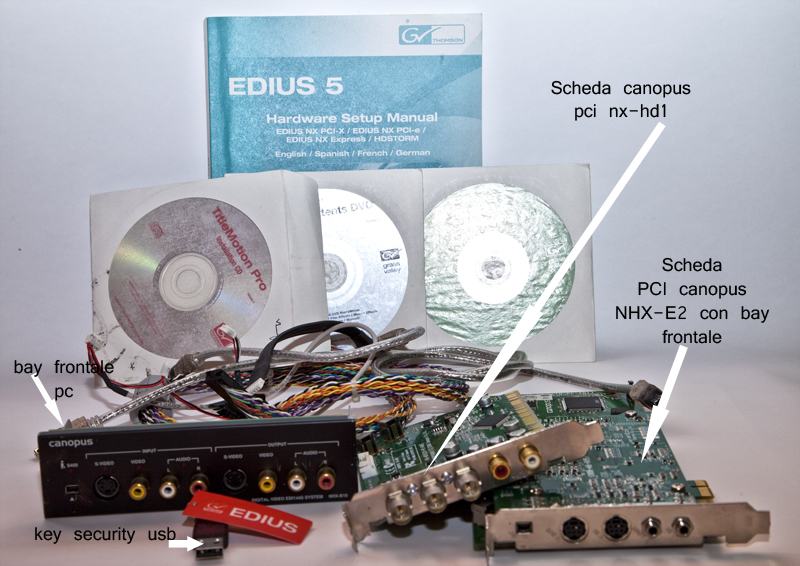

Canopus / Grass Valley EDIUS NX PCI-E kartica za profesionalnu video montažu,malo koristenu,svi kablovi,samo hardware,moguca proba kod vas...prodaje se samo hardware bez softwera sto govori cijena koja je fixna...




Canopus/Grass Valley EDIUS Broadcast is designed to meet the requirements of higher-end broadcast and post-production environments, including support for newer, non-tape forms of video recording and storage.

Incorporating all of the realtime editing capabilities and features included in the EDIUS Pro NLE software, EDIUS Broadcast also provides additional support for industry-standard equipment and formats:

* Panasonic DVCPRO 50 and DVCPRO HD
* Panasonic DVCPRO P2
* Panasonic VariCam
* Sony XDCAM

EDIUS Broadcast 4 Features:

* Realtime, mixed format HD/SD editing, including DV, HDV, HD, MPEG-2 and uncompressed SD video
* Complete I/O support for DVCPRO 50, DVCPRO HD, P2, VariCam and XDCAM cameras and decks
* Fast, flexible user interface, including unlimited video, audio, title and graphics tracks
* Realtime editing and conversion of different HD/SD aspect ratios, such as 16:9 and 4:3
* Realtime editing and conversion of different frame rates, such as 60i, 50i and 24p
* Realtime editing and conversion of different resolutions, such as 1440x1080, 1280x720 and 720x480
* Realtime HD/SD effects, keyers, transitions and titles
* Realtime, render-free DV output directly from the timeline
* Multicam editing of up to eight different sources simultaneously
* Nested timeline sequences
* High-speed HDV timeline export, built for Dual Core CPU technology
* High-quality, multi-format video exporting with ProCoder Express for EDIUS
* Direct-to-DVD timeline export
* Inscriber TitleMotion Pro for EDIUS

EDIUS Broadcast 4 Package Contents:

* EDIUS Broadcast installation CD-ROM
* TitleMotion Pro installation CD-ROM
* Bonus utilities CD-ROM
* Sample content DVD-ROM
* USB security dongle
* EDIUS installation guide
* EDIUS hardware setting guide
* EDIUS user guide
* EDIUS Broadcast user guide


Specifications

Video Formats (Capture)

* Canopus DV—720x480/59.94i (NTSC), 720x576/50i (PAL)
* YUY2 (Uncompressed)—720x486/59.94i (NTSC), 720x576/50i (PAL)
* Canopus Lossless—720x486/59.94i (NTSC), 720x576/50i (PAL)
* HDV/Canopus HQ—1080/59.94i, 1080/50i, 1080/30p, 1080/25p, 1080/24p, 720/60p, 720/50p, 720/30p, 720/25p, 720/24p, 720x480/60p, 720x576/25p, 720x576/50p


Video Formats (Output)

* DV/DVCAM—720x480/59.94i (NTSC), 720x576/50i (PAL)
* HDV—1080/59.94i, 1080/50i, 1080/30p, 1080/25p, 1080/24p, 720/60p, 720/50p, 720/30p, 720/25p, 720/24p, 720x480/60p, 720x576/25p, 720x576/50p
* S-video, composite—720x480/59.94i (NTSC), 720x576/50i (PAL)
* BNC component—1080/59.94i, 1080/50i, 720/30p, 720/25p, 720/24p over 30p, 720x480/59.94i (NTSC), 720x576/50i (PAL)


Digital Video Input/Output

* 1 x 4-pin FireWire (IEEE 1394)
* 1 x 6-pin FireWire (IEEE 1394)


Analog Video Input/Output

* 1 x S-video and composite combined (7-pin mini DIN) input
* 1 x S-video and composite combined (7-pin mini DIN) output


Analog Audio Input/Output

* 1 x stereo (3.5 mm, unbalanced) input
* 1 x stereo (3.5 mm, unbalanced) output


Minimum System Requirements

* CPU
o Intel or AMD 2.4 GHz or higher (Intel Pentium D Class 3.0 GHz or higher is recommended)
o SSE2 and SSE3 instruction set supported
* Bus Slots
o PCIe main board (NHX-E2): 1 PCI Express x1 (PCI Express Spec. Revision 1.0a)
* Memory
o 512 MB RAM (1 GB or more recommended for HD resolution editing)
* 800 MB or more space required for software installation
* Drive with ATA100/7,200 rpm or faster capable of sustaining at least 20 MB/s data transfer:
o Available hard disk space should be twice the size of the file to be edited
o A RAID stripe set of two or more hard disk drives is required for multiple HD stream output
* A graphics card with at least 256 MB of graphics memory (512 MB recommended) with support for Direct3D 9.0c or later, and PixelShader Model 3.0 or later is required (PixelShader Model 4.0 or later recommended)*
* Sound card with WDM driver support required
* DVD-ROM drive is required for software installation. For writing onto DVD or Blu-ray disc, a compatible drive is required.
* Free USB port (1.1 or higher) is required for security key
* Windows XP Home or Windows XP Professional (SP3 or later, 32-bit)
* Windows Vista (SP1 or later, 32-bit or 64-bit), including the following operating systems:
o Windows Vista Home Basic
o Windows Vista Home Premium
o Windows Vista Business
o Windows Vista Ultimate

više podataka na:

www.grassvalley.com/products/edius_nx_express
