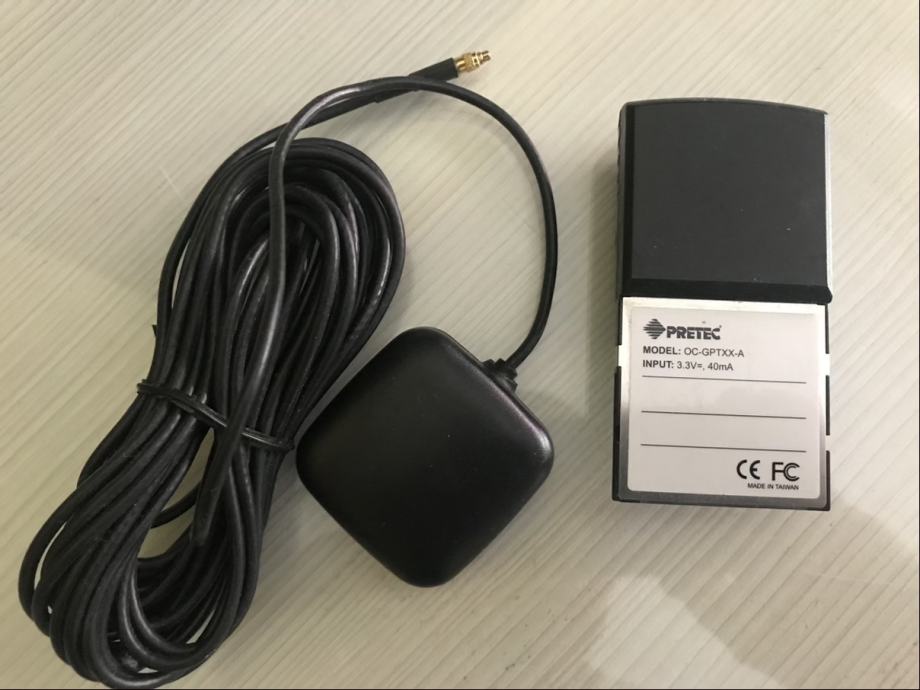

Pretec Compact Flash LP GPS Card sa Antenom
- Cijena
- 15,93 €
Šifra oglasa: 29315674
Osnovne informacije
- Lokacija
- Grad Zagreb, Trešnjevka - Jug, Vrbani
- Stanje
- rabljeno
Opis oglasa
Technical Details
Features:
Ultra Low Power Consumption (under 40mA in running mode)
8 parallel satellite-tracking channels for fast acquisition and reacquisition
Support for true NMEA-0183 data protocol
Enhanced algorithms provide superior tracking performance in urban, canyon, and foliage environments
Maximum navigation accuracy achievable with the Standard Positioning Service (SPS)
Meets rigid shock and vibration requirements
Automatic altitude hold mode from three-dimensional to two-dimensional navigation
Automatic cold start acquisition process
Built-in Antenna
Data retention with Li-Ion battery inside
Reversed straight MMCX subminiature, snap-on, coaxial RF jack receptacle
CFA compliant
Dimensions:
CompactFlash Type I 102.9 x 47.7 x 30.3 (mm)
Weight 70g
Operating Temperature 0C~+70C
Reacquisition:
Hot Start: 20 sec, average
Warm Start: 45 sec, average
Cold Start: 130sec, average
Protocols:
NMEA 0183 v2.2, GGA, GSA, RMC once per second. GSV once per 5 seconds. Baud rate is 4800bps, 8 data bit, no parity bit, 1 stop bit.
Features:
Ultra Low Power Consumption (under 40mA in running mode)
8 parallel satellite-tracking channels for fast acquisition and reacquisition
Support for true NMEA-0183 data protocol
Enhanced algorithms provide superior tracking performance in urban, canyon, and foliage environments
Maximum navigation accuracy achievable with the Standard Positioning Service (SPS)
Meets rigid shock and vibration requirements
Automatic altitude hold mode from three-dimensional to two-dimensional navigation
Automatic cold start acquisition process
Built-in Antenna
Data retention with Li-Ion battery inside
Reversed straight MMCX subminiature, snap-on, coaxial RF jack receptacle
CFA compliant
Dimensions:
CompactFlash Type I 102.9 x 47.7 x 30.3 (mm)
Weight 70g
Operating Temperature 0C~+70C
Reacquisition:
Hot Start: 20 sec, average
Warm Start: 45 sec, average
Cold Start: 130sec, average
Protocols:
NMEA 0183 v2.2, GGA, GSA, RMC once per second. GSV once per 5 seconds. Baud rate is 4800bps, 8 data bit, no parity bit, 1 stop bit.
