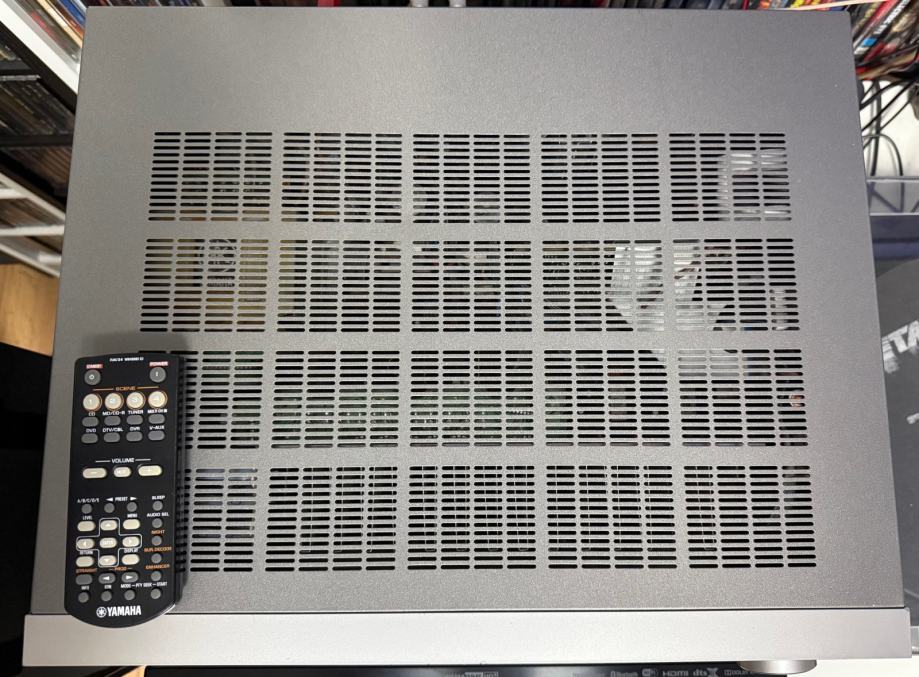

Yamaha RX-V340 RDS

Odličan receiver A/B zvučnici, 5.1, 75W, digitalni ulazi, FM, sub out...
Očuvan, daljinski upravljač

specifikacije:
Remote control: yes
Power consumption: 210 watts, 0.8 watts (standby)
Dimensions: 435 mm × 151 mm × 322 mm (W × H × D)
Weight: 8 kg
Connections
Number of inputs:
CD, MD, DVD, DTV, VCR, AUX 150 mV / 47 kOhm.
5.1 150 mV / 47 kOhm
coaxial
optical
antenna
4 × Video FBAS
Number of outputs:
headphones 300 mV / 470 Ohm
2 × Rec-Out 150 mV / 1200 Ohm
2 × Video FBAS
Front A, B
Center Surround
Subwoofer Cinch 4 V / 1200 Ohm
Technical Data
Audio/Video
Channels: 5.1
TV standard: PAL
A/D converter:
D/A converter: 24 bit/96 kHz
Output power (at distortion)
Stereo: 2 × 75 watts at 4 ohms, 0.7
Front: 2 × 75 watts into 4 ohms, 0.7 %.
Center: 75 watts into 4 ohms, 0.7% ** Center.
Rear: 2 × 75 watts into 4 ohms, 0.7 %
Surround Back: -
Dynamic power (with distortion factor)
Stereo: 2 × 95 watts
Front: 2 × 95 watts
Center: 95 watts
Rear: 2 × 95 watts
Surround Back: -
Total harmonic distortion: 0,06 %
Attenuation Factor:
Frequency Response: 10-100,000 dB -3 dB
Signal-to-noise ratio: >100 CD
Stereo channel separation: >60 dB
Tone control:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 20,000 Hz
Loudness: no
High Filter: no
Low Filter (Subsonic): no
Mute: yes
Direct/Line-Straight: no
Time Correction: no
Bass Management: 90 Hz fix
Delay adjustment (Lip Sync): no
DSP programs: 14
Sound Formats
Dolby Digital
Dolby Digital EX (Phantom)
DTS
DTS ES (Phantom)
Dolby Pro Logic
Dolby Pro Logic II Music + Movie
Tuner
Reception: FM, MW
Frequencies:
FM: 87.50-108.00 MHz
MW: 531-1611 kHz
Frequency response: 20-15,000 Hz +0.5/-2 dB
Input sensitivity: 2/25 µV (Mono/Stereo IHF)
Distortion factor: 0.2/0.3 % (mono/stereo) Signal-to-noise ratio: 76/70 dB (mono/stereo)
Channel separation: 42 dB
Selectivity: 70 dB
Co-wave selection:
Spurious wave selection:
Image frequency attenuation:
IF attenuation:
AM suppression:
Output level:
RDS: yes (PS, PTY, RT, CT, EON).
Station memory: 40
Special Features
Measuring microphone: no
Sleep timer
Headphone Surround (Silent Cinema)
