Yamaha Natural Sound Stereo Receiver RX-496RDS

Izvrsno očuvan Yamaha Stereo Receiver RX-496RDS u divnoj titan boji. (Nemam daljinski)

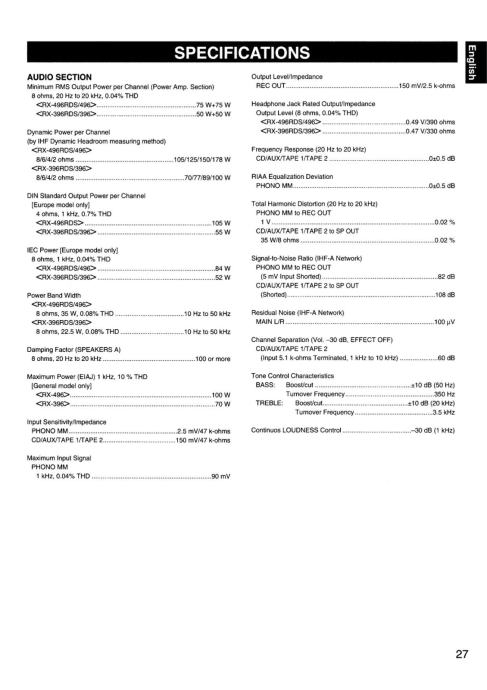

Stabilnih 75 watta mjerenih do vrlo niskih otpora. Pri 4 ohma daje 105W uz solidnih 0.7% THD (specifikacije na zadnjoj slici). Prodaje se za samo 120€, a ako uzimate zvučnike i receiver onda 280€. Uz set dobivate osnovne zvučničke kablove tako da sistem možete odmah početi koristiti. Detalje o zvučnicima možete vidjeti u mom oglasu za zvučnike. (Jedino na videu nije moj uređaj. Slike su od uređaja koji se prodaje. Video je samo da dobijete jasniju sliku o tome kako izgleda.)

Pojedinačno su cijene:
- Receiver - 120€
- Zvučnici - 180€

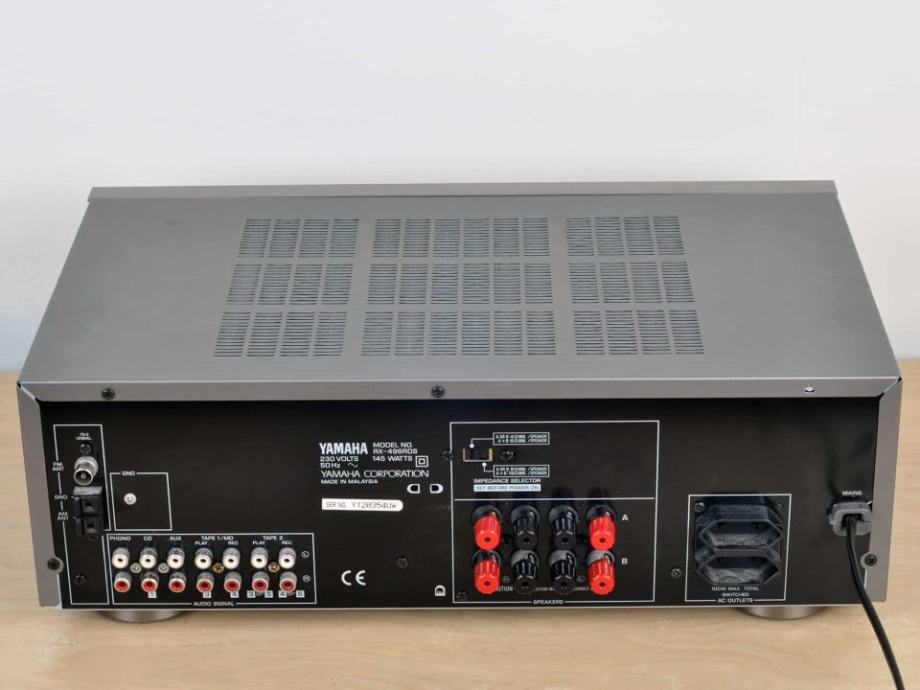

Ovo je stereo receiver, dakle nije za kućno kino. Ima 4 izlaza za zvučnike - 2 prednja i 2 stražnja. Ima ulaz za gramofon, varijabilni loudness i opcije za uštimavanje radio stanica. Uređaj blista kao prvog dana. Izgleda kao da je sad tek izvađen iz kutije.

Receiver

Tuning range: FM, MW

Power output: 75 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.04%

Damping factor: 100

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 82dB (MM), 108dB (line)

Channel separation: 60dB (line)

Output: 150mV (line)

Dimensions: 435 x 151 x 309.3mm

Weight: 8.2kg

Accessories: remote control

Year: 1998

Connections

Number of inputs:
Phono MM: mV / kOhm.
CD/DVD, MD, AUX, TAPE1 (Playback), TAPE2 (Playback): mV / kOhm

Number of outputs:
TAPE1 (Record), TAPE2 (Record): -.
Headphones: V / Ohm

Technical data

Amplifier

Continuous power (at distortion).
8 Ohm:
4 Ohm: 2 × 105 Watt
Dynamic power
8 Ohm: 105 Watt
6 Ohm: 125 Watt
4 Ohm: 150 Watt
2 Ohm: 178 Watt
Total harmonic distortion: 0,02 %
Attenuation factor: 100
Frequency response: 20-20,000 Hz ± 0.5 dB (CD/TAPE/AUX)
Screening double capacitors: 13,600 µF (6,800 µF × 2)
Signal-to-noise ratio: 82 dB (PHONO), 108 dB (CD/TAPE/AUX)
Stereo channel separation: dB
Tone control:
Bass: ±
Treble: ±

Loudness: manually adjustable (-30 dB, 1 kHz)
Mute:

Tuner

Reception: FM, MW
Frequencies:
FM: 87.5-108.0 MHz
MW: 531-1,611 kHz
Frequency response:
FM: 0 ±1.5 dB (20-15,000 Hz).
MW:
Input sensitivity:
FM: µV / µV (mono (26 dB signal-to-noise ratio) / stereo (46 dB signal-to-noise ratio))
MW: µV / m
Distortion factor:

FM: % (mono/stereo)
MW: %
Signal-to-noise ratio:

FM: dB (mono/stereo)
MW: dB

Channel separation: dB
Selectivity:
FM: dB
MW: dB
Co-wave selection:
Spurious selection:
IF attenuation:
FM: dB
MW: dB
IF attenuation: dB
AM suppression:
Output level:
RDS: yes
Station memory:
