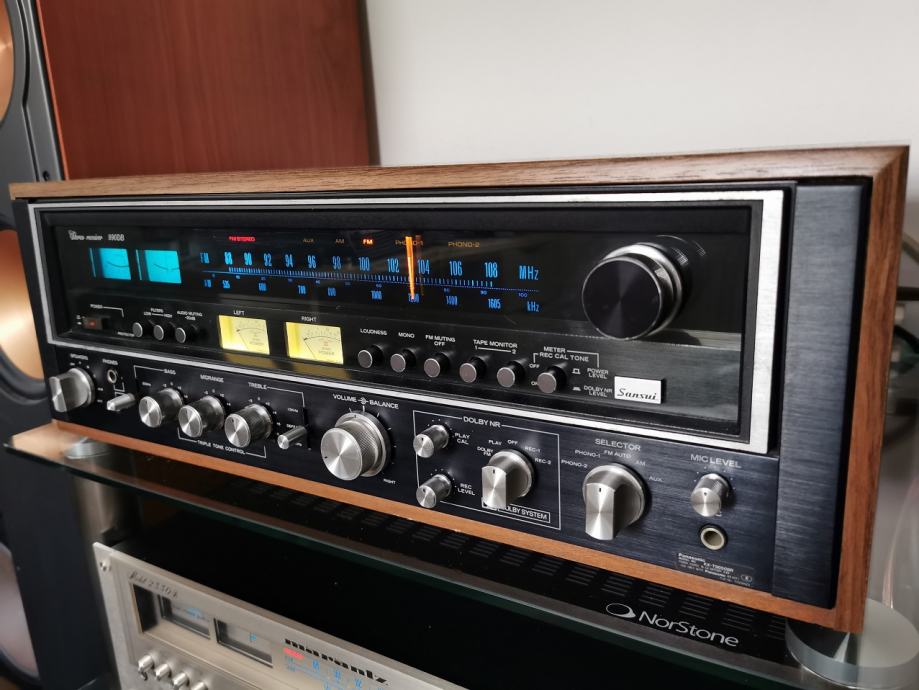

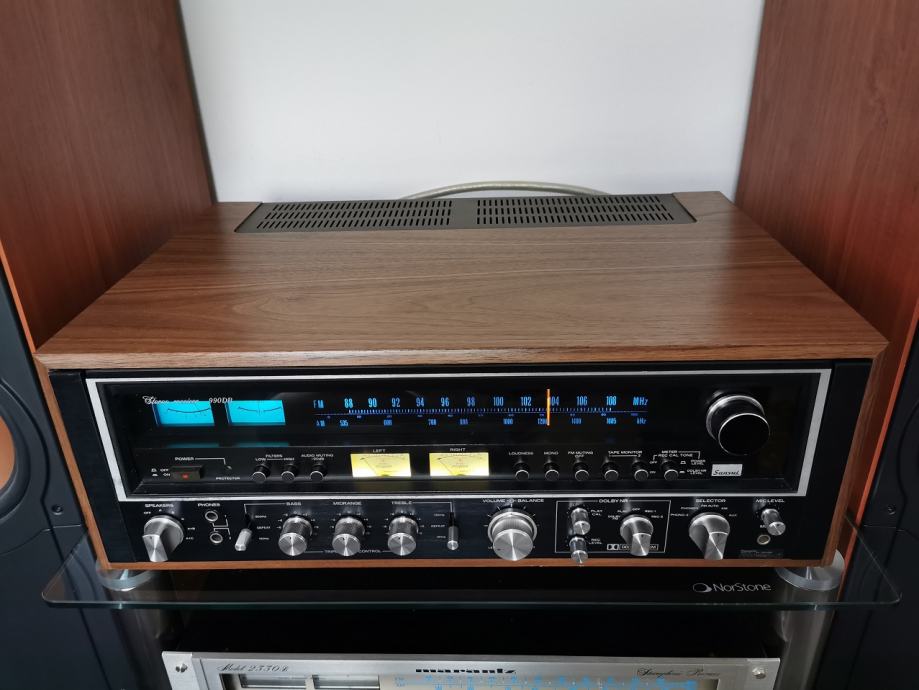

Sansui 990db

odlično stanje
proba i preuzimanje Krško
dogovor oko dostave Zaprešič Samobor Jankomir-King Cross
cijena sa dostavom 2250€

mobi: 00386 40 528 536


General

Manufacturer: Sansui
Model: 9090 DB / 990 DB
Years of manufacture: 1975 - 1977
Made in: Japan
Color: silver, black, wooden cabinet
Remote control: no
Power consumption: 435 / 650 W (nominal power / max.)
Dimensions: 540 x 182 x 397 mm (WxHxD)
Weight: 23,6 kg
Original price approx.: 750 US-$, 2'800 DM


Connections

Number of inputs:
2x Phono (Cinch): 2.5 mV / 50 kOhm

1x Aux (Cinch): 150 mV / 50 kOhm

2x Tape In (1x Cinch, 1x Cinch/DIN): 150 mV / 50 kOhm
Main In (Cinch): 775 mV / 100 kOhm
Antenna FM (75/300 Ohm), AM
Microphone: 5 mV / 10 kOhm
Number of outputs:
2x Tape Out (1x Cinch, 1x Cinch/DIN): 150 mV (Cinch) / 30 mV (DIN).

2x Pre Out (Cinch): 775 mV

2x headphones (6.3 mm jack, front)
3 speaker pairs


Technical Data

Amplifier

Continuous power (at distortion)
8 Ohm: 2x 125 W (RMS, 20-20,000 Hz)
4 Ohm: 2x 160 W (sine, 1 kHz)
Dynamic power
8 Ohm: approx. 160 W
4 Ohm: approx. 210 W
Total harmonic distortion: 0.1%
Attenuation factor: 30
Phono: 30 - 15,000 Hz (± 0.3 dB)
Aux: 10 - 30,000 Hz (± 1 dB)
Signal-to-noise ratio: (IHF)

Phono: 70 dB Aux, Tape: 80 dB

Stereo channel separation: 50 dB (1 kHz)
Tone control: Tripple Tone Control
Bass: ± 10 dB at 50 Hz, selectable frequency 150/300 Hz
Mids: ± 5 dB at 1.5 kHz

Treble: ± 10 dB at 10 kHz, selectable input frequency 1.5/3 kHz

Loudness: +8/+6 dB (50 Hz/10 kHz)
High Filter: -10 dB at 10 kHz
Low Filter (Subsonic): -10 dB at 50 Hz
Mute: -20 dB
Direct/Line-Straight: yes


Tuner

Reception: FM, MW
Frequencies:
FM: 88 - 108 MHz
MW: 535 - 1,605 kHz
Frequency response:
Input sensitivity:
FM: 0.9 / 1.7µV, (DIN/IHF).

Distortion factor:

FM: 0.2% / 0.3% (mono/stereo).
Signal-to-noise ratio:
Channel separation:
Selectivity:
Co-wave selection:
Spurious wave selection:
Image frequency attenuation:
IF attenuation:
AM suppression:


Special Features

Internal Dolby decoder
Separable pre/power amplifier
Wooden cabinet
2 analog VU meters
2 Phones Jack jacks 6,3"
1 Mic Jack connector 6,3", adjustable
VU-Meter Switch (Power Level, Dolby No. Level)
