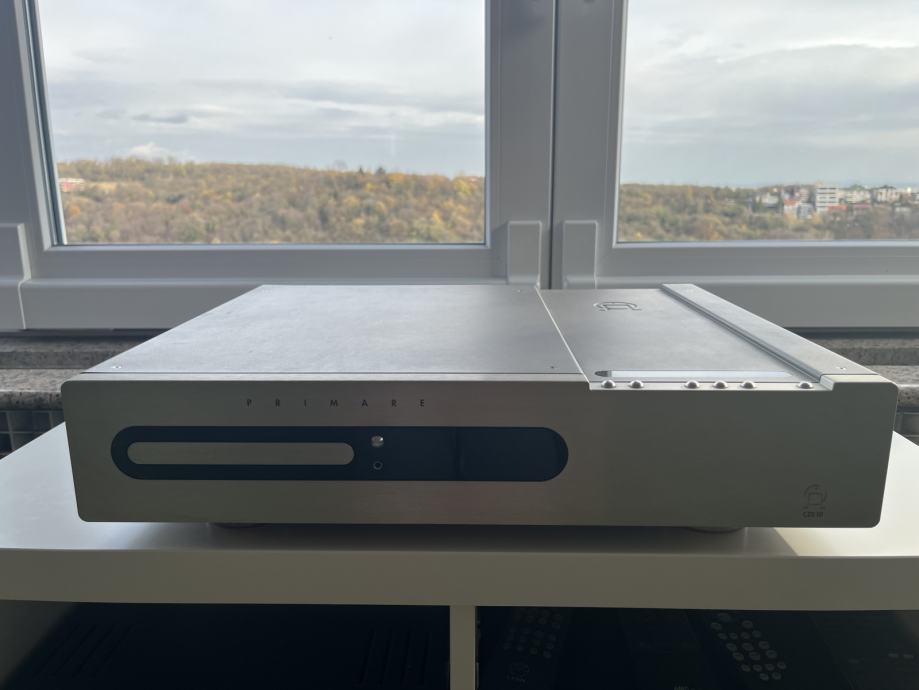

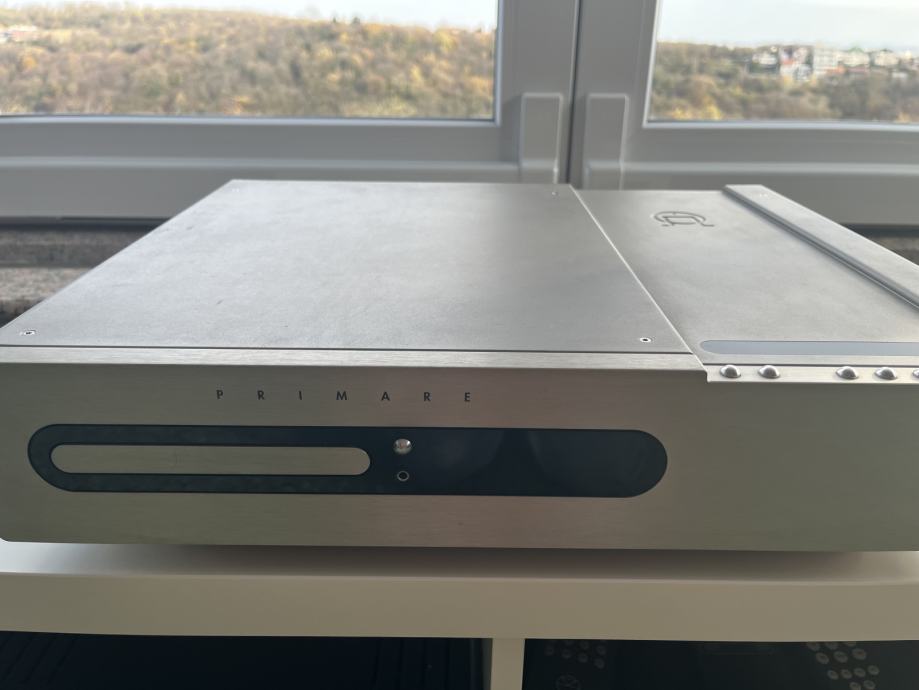

Primare CDi 10 receiver

Vrhunski komad švedske tehnike u titan finišu. Vrlo dekorativan i elegantan dodatak prostoru s moćnim pojačalom D klase. Pogonio je Martin Logan Source SE hibridne zvučnike koji su u drugom oglasu.
Uređaj je slabo korišten posljednjih nekoliko godina i vrijeme mu je za novi dom.

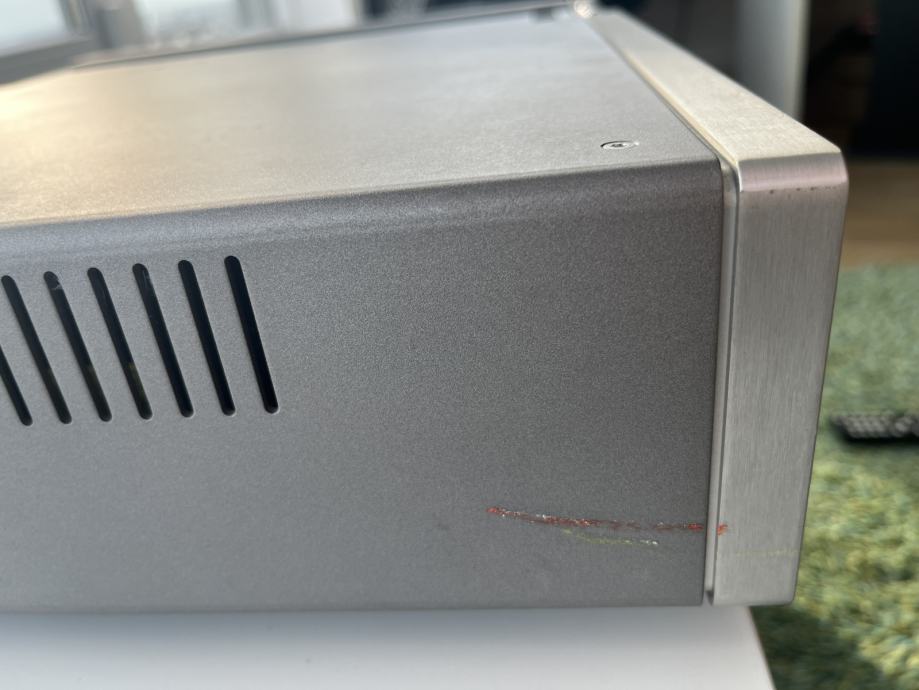

Stanje: dobro. Metalni gumbi na gornjoj strani uređaja su jako lijepi ali od prvog dana problematični (ne love uvijek) pa sam uređajem upravljao preko elegantnog ali i funkcionalnog daljinca.

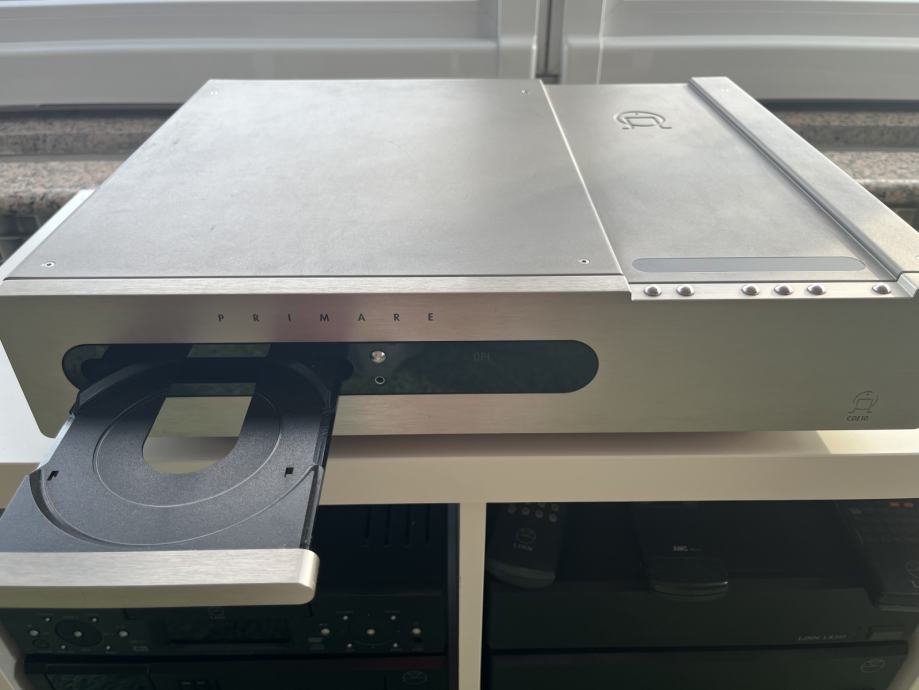

CD pogon je ispravan ali ponekad preskače pa bi bilo dobro uređaj servisirati po tom pitanju. Ako imate pržene diskove - ovaj uređaj je prefin za to i uglavnom ih ne želi svirati.
Pojačalo je stvarno vrhunsko i može pogoniti i najzahtjevnije zvučnike bez problema.
Možete doći poslušati i testirati uređaj. Poželjno je osobno preuzimanje, moguća dostava u ZG i okolici.

The broad specification of the 75W/8ohm CDI10 is very conservative, with each power amp
delivering closer to 90W/8ohm, rising to a substantial 175W/4ohm. As is usually the case with
Class D/PWM amplifiers, there's no headroom beyond this power output, but the CDI10 still
remains capable of driving most 'real world' speakers to high levels. This is aided by an
impressively low 0.07ohm output impedance (for the technology) and wide frequency
response that's just 3dB down at 80kHz. Distortion, too, is as low as 0.005% at low volume
(~1W/8ohm), increasing to ~0.03% from 20Hz-8kHz over 10W/8ohm.

https://www.primare.net/wp-content/uploads/2017/06/CDI10-User-guide.pdf?srsltid=AfmBOoq840j7qNrbe_VziXKpdzqP9ibk9JX0SYtI6dkbtScgMe0XI6oF


https://www.primare.net/wp-content/uploads/2017/06/CDI10-Tech-paper.pdf?srsltid=AfmBOorTzqDePxc89C0fjeeNoDeQDD-uq5ucQ8gbPIuoTktbWzqFbxJA

https://www.theabsolutesound.com/articles/tested-primare-dvdi10-dvdcd-receiver/


Specifications

FM
Stereo Tuner, 87.5-108Mhz
RDS decoding
Number of Presets: 40
Usable sensitivity: FM Mono 10dBuV, FM Stereo 20dBuV
DAB
Band III (174-240 MHz) and L (1452-1492 MHz).
Usable Sensitivity: 29dBuV band III, 30dBuV band L
Number of Presets: 10
CD Player:
DVLS 710 – Transport
CD / CDR / CDR-W
D>A Conversion (CD / DAB):
PCM1738 - 24-Bit 192 kHz
4
Amplifier
2x75W (8R load, 1K below 1% THD+N) class D amplifier.
THD+N 20Hz- 20 KHz 10W below 0.1%
Frequency response: 20Hz – 20 KHz, +-0.3dB.
Power Supply
Dual switch mode power supply
Power consumption: Standby: 16W
Operate: 210W

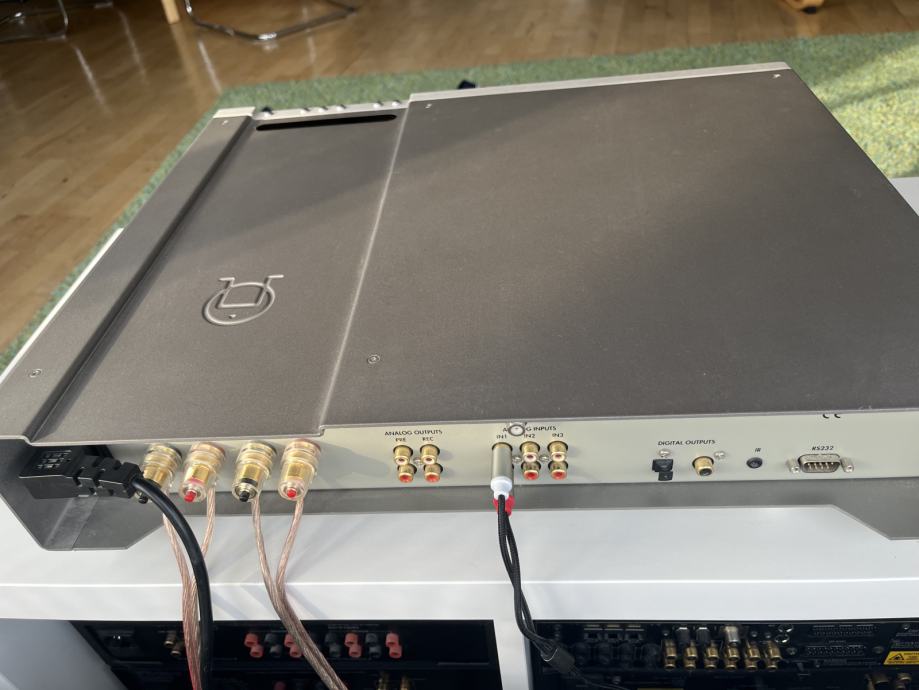

Inputs:
3: Unbalanced Stereo (RCA)
1: Unbalanced Stereo (Front Panel 3.5mm)
IR Inputs:
1: 3.5mm Jack (Emitter or IR Receiver)
RS232:
1: 9 Pin D-Sub
Antenna - F-connector (Combined DAB / FM)
Outputs:
Preamp Output:
1: Unbalanced Preamp Output (RCA)
Record Outputs - All Sources:
1: Unbalanced Record Output (RCA)
1: Coaxial Digital (RCA)
1: Optical Digital (TosLink)
Finishes:
Titanium
Dimensions:
W 430mm x D 385mm x H 100mm (With Feet)
