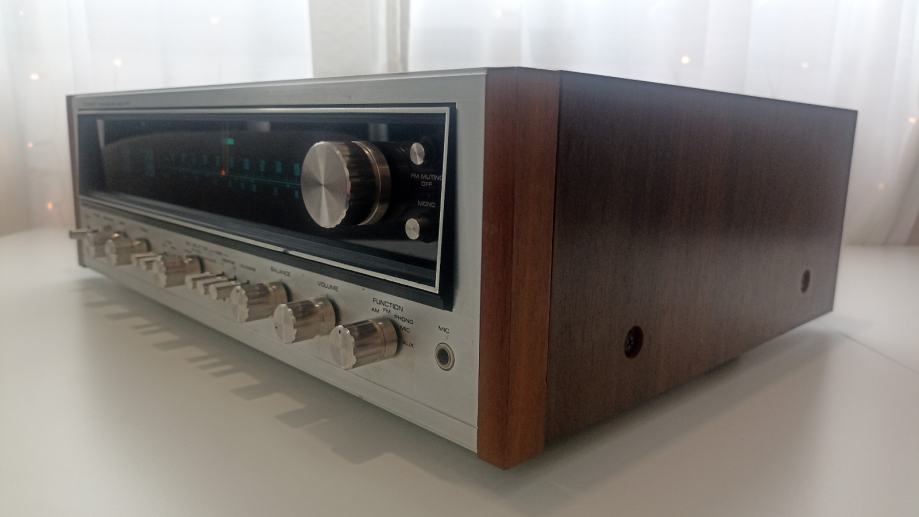

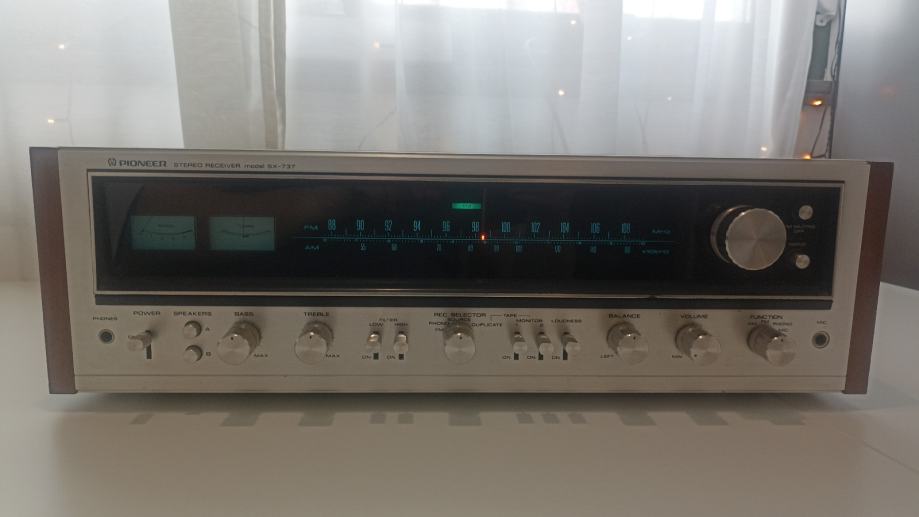

Pioneer SX - 737

Prodajem Pioneer SX-737 receiver u izvrsnom stanju, model iz zlatne sredine poznate X3X serije. Mogu se pronaći komentari kako je upravo ovaj model zadržao pravi tonalni karakter x3x serije, sa dovoljno snage za pokretanje većine zvučnika. Prekrasan za slušanje i gledanje, tko traži savršen omjer snage i mogućnosti, ne treba dalje tražiti.

Type: Receiver

Years of manufacture: 1974 - 1976
Made in: Japan
Color: front silver, wooden cabinet
Remote control: no
Power consumption: 280 W
Dimensions: 500 x 158 x 410mm (WxHxD)
Weight: 13,2 kg
Original price approx.: 400 US-$, 1'685 DM

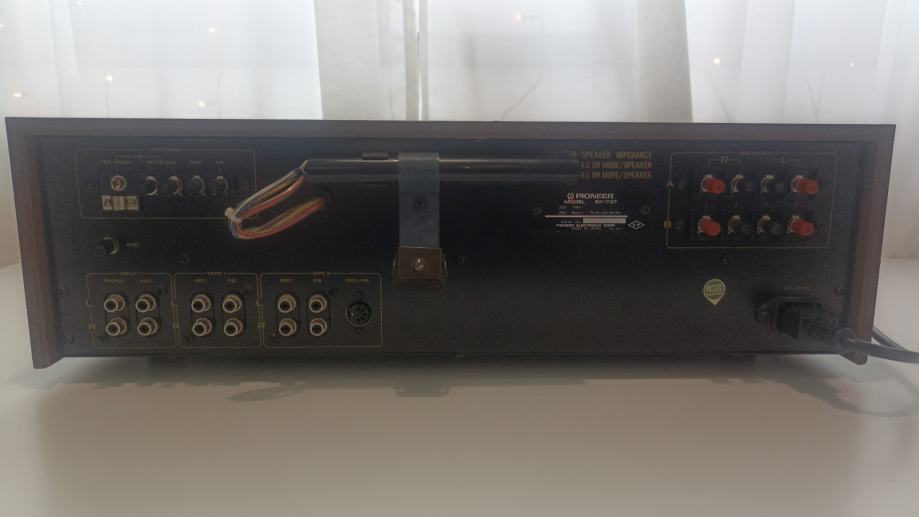

Connections

Number of inputs:
Phono MM: 2.5 mV, 50 kOhm, 170 mV max.
Microphone (6,3mm jack): 2,5 mV, 50 kOhm
Aux: 150 mV, 50 kOhm
Tape 1, 2 Play: 150 mV, 50 kOhm
Tape Play (DIN): 150 mV, 50 kOhm

Antenna (FM: 75, 300 ohms, MW: 300 ohms).
Number of outputs:
Tape Rec 1, 2: 150 mV
Tape (DIN): 30 mV, 80 kOhm

Headphones (6.3mm jack)
2 pairs of loudspeakers

Technical Data

Amplifier

Continuous power (at distortion):
8 Ohm: 2x 35 W (RMS, 20 - 20'OOO Hz).
4 Ohm: 2x 40 W
dynamic power:
8 Ohm:
4 Ohm:
Total harmonic distortion: < 0.5 %
Attenuation factor: 40 (8 Ohm, 1 kHz)
Frequency response:
Phono, RIAA: 30 - 15'000 Hz, ± 0,3 dB
High level: 15 - 40'000 Hz, + 0,5 dB, - 1 dB
Signal-to-noise ratio:
Phono: 70 dB
Microphone: 65 dB
High level: 95 dB
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz

Loudness: + 8 dB at 100 Hz, + 3 dB at 10 kHz
Subsonic: - 9 dB at 50 Hz, - 6 dB / octave
High Filter: - 9 dB at 10 kHz, - 6 dB / octave
Mute:

Tuner

Reception: FM, MW
Frequencies:
FM: 88 - 108 MHz
MW: 525 - 1605 kHz
Input sensitivity:
FM: 1.9µV
MW: 15µV

All other specifications for VHF
Frequency response: 20 - 15'000 Hz, + 0,2 dB, - 2 dB
Distortion factor:
Mono: < 0.2 %
Stereo: < 0.4

Signal-to-noise ratio:
Mono: 70 dB
Stereo: 65 dB

Channel separation: 40 dB (1 kHz)
selectivity: 60 dB
Co-wave selection: 1.0 dB
Spurious wave selection: 100 dB
Image frequency attenuation: 80 dB
IF attenuation: 100 dB
AM suppression: 55 dB

Special Features

Microphone front input (6.3mm jack)
