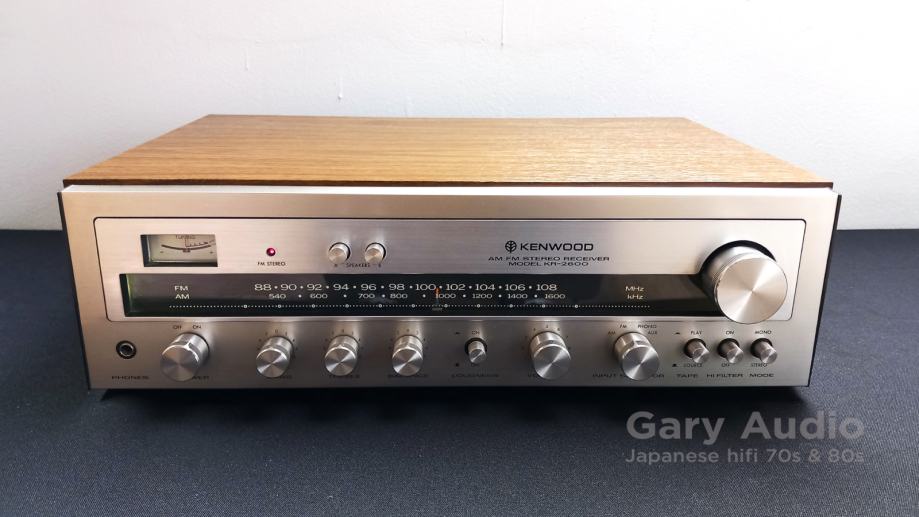

Kenwood KR-2600 Stereo Receiver Japan 1976

Kenwood KR-2600 stereo prijemnik iz 1976. godine. Kenwoodovo zlatno područje HiFi proizvodnje u Japanu. Srebrna prednja strana u pravoj drvenoj komori. Prijemnik KR-2600 bio je najsofisticiraniji uređaj svog vremena među prijemnicima srednjeg cjenovnog ranga. U uskom staklenom zaslonu ima nešto prostrano. FM senzor prijemnika je toliko osjetljiv da s dobrom antenom prima sve bliže i daleke stanice. Zaista zabavno ako uživate u slušanju radija! Pojačalo nudi 2x15 W s 8 Ohma i 2x18 W glazbene snage s 4 Ohm zvučnicima.
Prijemnik je u izvrsnom stanju sa svim originalnim dijelovima. Nudi dovoljnu snagu, širok frekvencijski odziv i topli zvuk s niskim izobličenjem i izlaznom snagom. Uređaj je testiran, potpuno funkcionalan. Međunarodna dostava u tvrdoj kartonskoj kutiji, pažljivo i sigurno obložena.
Dostava iz Dunakeszija, Mađarska. Također dostupno osobno u Rijeci.

Specifications
Manufacturer: Kenwood
Model: KR-2600
Serial No: 360441
Year of manufacture: 1976 - 1978
Made in: Japan
Color: Silver/Champagne front panel, cherry wooden chamber
Dimensions: 438 x 135 x 300 mm (WxHxD)
Weight: 6,5 kg

Technical Data


Connections
Number of inputs:
- Phono MM (Cinch): 2,5 mV / 50 kOhm
- Tape In (Cinch): 150 mV / 45 kOhm
- AUX (Cinch): 150 mV / 45 kOhm
- Antenna FM (75/300 Ohm), AM
Number of outputs:
- Tape Out (Cinch): 150 mV / 100 Ohm
- Headphones (6.3 mm jack, front)
- 2 pairs of loudspeakers


Amplifier
Continuous power
8 Ohm: 2x 15 W (20-20,000 Hz) 4 Ohm: 2x 18 W (1 kHz)
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.8% (at nominal power)
Attenuation factor: 30 (8 Ohm)
Frequency response:
- Preamplifier: 20 - 30,000 Hz
- Power bandwidth: 10 - 45,000 Hz
Signal-to-noise ratio:
- Phono MM: 70 dB
- AUX, Tape: 90 dB
Stereo channel separation:
Tone control:
- Bass: ±8 dB at 100 Hz
- Treble: ±8 dB at 10 kHz
- Loudness: +8/+5 dB (100 Hz/10 kHz)
- High Filter: -10 dB at 10 kHz


Tuner
Reception: FM, MW
Frequencies:
- FM: 87.5 - 108 MHz
- MW: 525 - 1605 kHz
Frequency response: 20 - 15,000 Hz (+0/-1.5 dB, FM)
Input sensitivity:
- FM: 2.5 µV (IHF)
- MW: 25 µV Distortion factor:
- FM: 0.3% (mono), 0.5% (stereo).
Signal-to-noise ratio:
- FM: 70 dB (mono), 64 dB (stereo)
- MW: 48 dB
Channel separation:
FM: 33 dB (at 1 kHz)
Separation: (IHF) FM: 50 dB
MW: 25 dB
Equal wave selection:
FM: 2.5 dB
Spurious wave selection:
Image frequency attenuation:
- FM: 50 dB
- MW: 45 dB
IF attenuation:
AM suppression:


Special Features
VHF muting
