JVC JR-S50 Stereo Receiver JR S50 Japan 1976

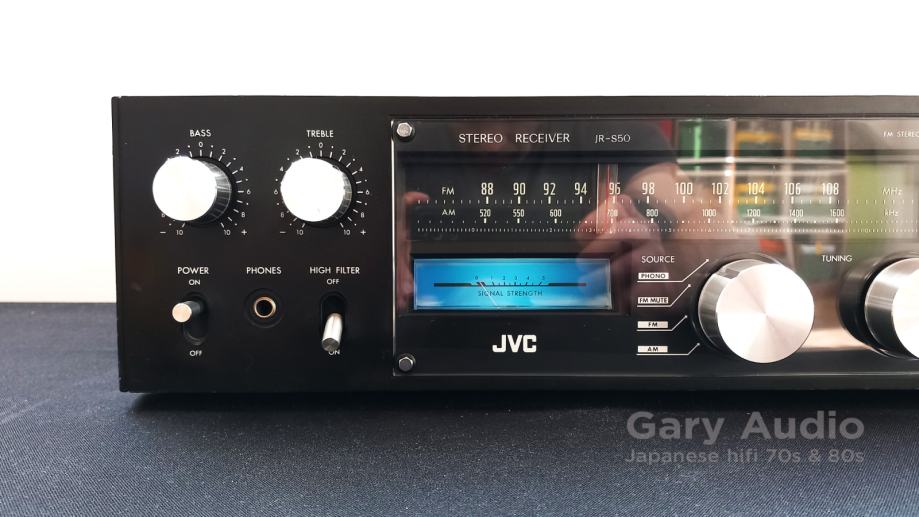

Proizveden krajem 70-ih, JVC JR-S50 prijemnik je dizajnom daleko ispred svog vremena. Crna prednja ploča s kaljenim staklenim zaslonom daje ozbiljan izgled. Pojačalo nudi oko 20-50 vata po kanalu. Prijemnik je poznat po 5-zonskom SEA grafičkom ekvilajzeru i hvaljen je zbog toplog, čistog zvuka, što ga čini popularnim izborom za povoljne vintage hi-fi sustave.

FM radio se može podesiti standardnim FM podešavanjem ili FM-mute funkcijom koja filtrira šum između stanica. Mjerač FM signala precizno pokazuje jačinu radio signala. Ako imate dobru antenu, slušanje FM radija s ovim prijemnikom je velika zabava. Pojačalo je poznato po tome što proizvodi jasan i ugodan zvuk pogodan za duge sesije slušanja.

Ovaj je uređaj potpuno očišćen i testiran, a sve funkcije rade ispravno, svi dijelovi su originalni iz 1976. godine.

Dostava iz Mađarska. Također dostupno osobno u Rijeci.

Specifications
Manufacturer: JVC
Model: JR-S 50

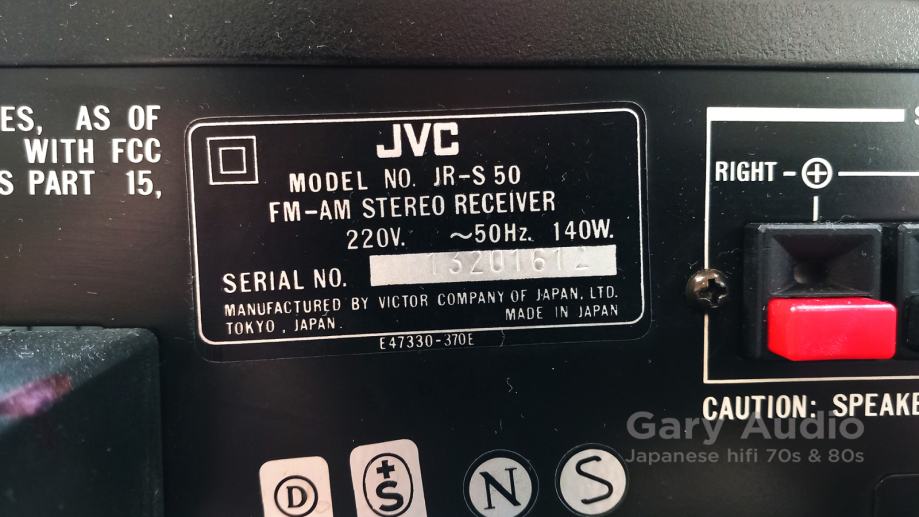

Serial No: 13201612
Year of manufacture: 1976 - 1978
Made in: Japan
Color: Black
Power consumption: 220 Volt
Dimensions(WxHxD): 430 x 130 x 359 mm.
Weight: 6.6 kg

Connections
Number of inputs:
- Phono MM: 2.5 mV, 50 kOhm, max. 170 mV
- AUX: 180 mV, 40 kOhm, max. 700 mV
- Tape Play: 180 mV, 40 kOhm, max. 700 mV
- Tape Play DIN:
- Antenna: 75 Ohm, 300 Ohm
Number of outputs:
- Tape Rec: 150 mV, 60 kOhm.
- Tape Rec DIN: 30 mV, 80 kOhm
- Headphones: 8 - 16 Ohm
- 1 loudspeaker pair

Technical Data

Amplifier
Continuous power (at distortion)
8 Ohm: 2x 17 Watt 4 Ohm: 2x 20 Watt
Total harmonic distortion: 0.5% at rated power
Attenuation factor: 40 at 8 Ohm
Frequency response: 10 - 50,000 Hz (+0 / -3dB)
Signal-to-noise ratio:
- Phono: 60 dB
- AUX: 80 dB
- Tape: 80 dB
Tone control:
- Bass: ± 11 dB at 100 Hz
- Treble: ± 11 dB at 10 kHz
- Loudness: yes
- Treble filter: yes

Tuner
Reception: FM/MW
Frequencies: FM: 88 - 108 MHz
MW: 535 - 1605 KHz
Input sensitivity:
FM: 1.8µV
MW: 30µV
Frequency response: 30-15,000 Hz (-3 dB)
Distortion factor: 0.2% (mono), 0.5% (stereo) Signal-to-noise ratio: 60 dB (mono), 58 dB (stereo)
Channel separation: 40 dB at 1 kHz
Selectivity: 55 dB at 400 kHz
Co-wave selection: 1.5 dB
Spurious wave selection: 50 dB
Image frequency attenuation: 60 dB
IF attenuation: 80 dB
AM suppression: 45 dB

Special Features
Tuning aids: Field Strength Instrument
