Akai AA-910 Tranzistorski stereo AM / FM prijemnik pojačalo Japan 1973

Akai AA-910 AM / FM stereo integrirano pojačalo i prijemnik. Dizajn iz 1970-ih, srebrna prednja strana u pravoj drvenoj komori. Prijemnik AA-910 je prvo izdanje Akaijeve nove AA-900 serije. Pametan i elegantan, robustan stil daje ovom modelu raznolik izgled. Idealno postavljene kontrole na prednjoj ploči za potpunu jednostavnost korištenja i učinkovitost. Najmoderniji sklopovi za kvalitetan stereo zvuk s glazbenom snagom od 50 W. AA-910 je poznat po originalno ugrađenoj FM anteni koja kristalno jasno prima FM stanice u vrlo širokom rasponu.
Prijemnik je u izvrsnom stanju sa svim originalnim dijelovima. Nudi dovoljnu snagu, širok frekvencijski odziv i topli zvuk s niskim izobličenjem s izlaznom snagom od 14 W po kanalu na 8 Ω.
Uređaj je testiran, potpuno funkcionalan.

Specifications

Technical data:
Manufacturer: Akai Electric Company Ltd
Model: AA-910
Serial No: 90625-00252
Type: Receiver
Years of manufacture: 1973 - 1975
Made in: Japan
Color: silver, housing walnut
Power: 100 VAC ~ 240 V, 50Hz/60Hz
Power consumption: 100W maximum
Dimensions: 625 x 155 x 330 mm
Weight: 16 kg

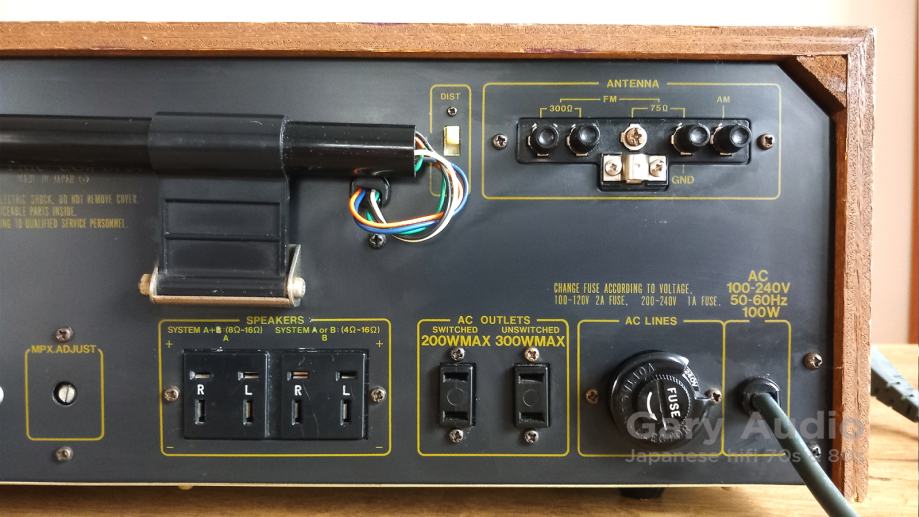

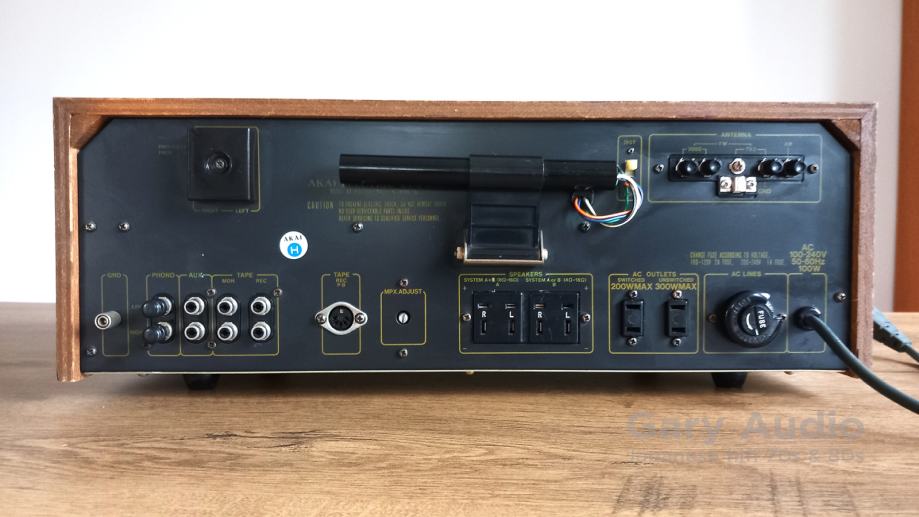

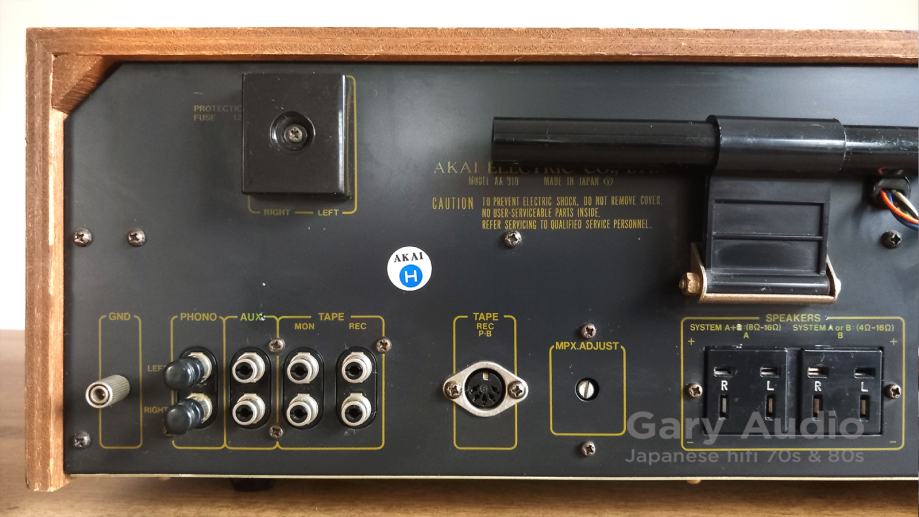

Connections
Number of inputs:
- Phono: 2.5 mV, 50 kOhm, 130 mV max.
- Microphone: 65 mV, 50 kOhm
- Tape 1, 2: 150 mV, 100 kOhm
- Aux: 150 mV, 100 kOhm
Number of outputs:
- Tape RCA: 150 mV
- Tape DIN: 30 mV
- 2 pairs of speakers

Amplifier
Continuous power (at distortion)
8 Ohm: 2x 13 W (RMS, 20 - 20'000 Hz), 2x 14 W (1 kHz)
4 Ohm: 2x 18 W
Dynamic power: 8 Ohm: 37 W / 4 Ohm: 50 W
Total harmonic distortion: 0.5
Frequency response: 20 - 45'000Hz
Signal to noise ratio:
Phono: > 60 dB
Microphone: > 65 dB
High level: > 80 dB
Stereo channel separation: better than 50 dB (phono, 1kHz)
Tone control:
- Bass: ± 10 dB / 100Hz
- Treble: ± 10 dB / 10kHz
- Loudness: + 10 dB at 100 Hz, + 6 dB at 10 kHz
- High Filter: - 9 dB / 10kHz
- Low Filter (Subsonic): - 6 dB / 50Hz


Tuner
Reception: FM, AM
Frequencies:
- FM: 88 - 108 Mhz
- MW: 525 - 1605 kHz
Frequency response:
Input sensitivity:
- FM: 1.8 µV
- MW: 250 µV
Distortion factor: Stereo: 0.6 %, Mono: 0.2
Signal-to-noise ratio: 70 dB
Channel separation: 40 dB, min. 35 dB
Selectivity: > 80 dB
Co-wave selection: 2.5 dB
Spurious wave selection: 70 dB
Image frequency attenuation: > 80 dB
IF attenuation: > 80 dB
AM suppression: > 45 dB

Special Features
Front input microphone

Dostupno u Rijeci. Kontakt +36704132728
