Yamaha DSP-E 492

Pojacalo ispravno , slanje postom 10eur placanje na preuzimanju

General

Manufacturer: Yamaha
Model: DSP-E 492
Years of manufacture:
Manufactured in:
Color: Black, Titanium
Remote control: yes
Power consumption: 200 watts, 600 watts max.
Dimensions: 435 x 126 x 390 mm (W x H x D)
Weight: 8,5 Kg
New price approx.:600DM

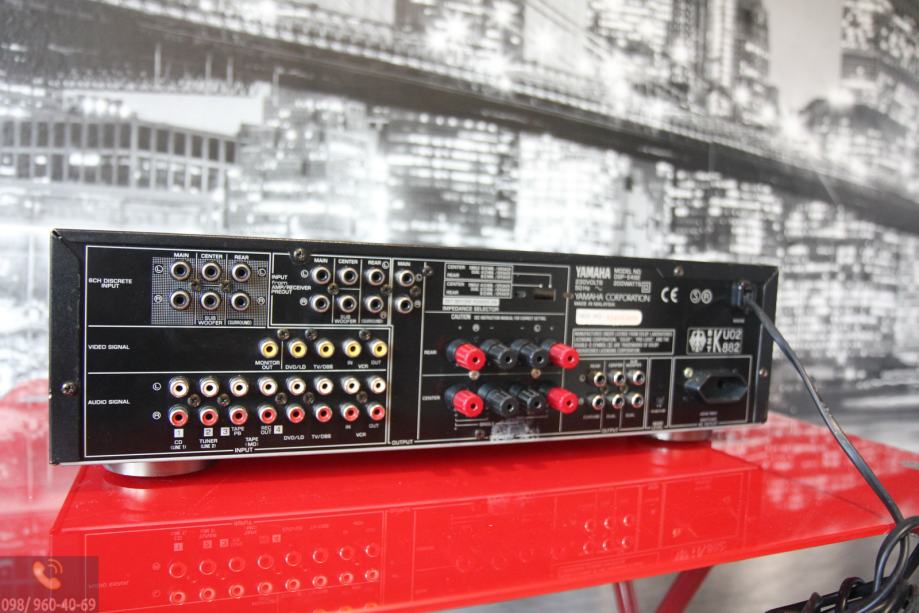

Connections

Number of inputs:
2x Line, DVD, TV, Tape, VCR, 5.1, 5.1 Discrete.
3x Video-In

Number of outputs:
2x Rec-Out
Pre-Out Main
Pre-Out Rear

2x Mono Pre-Out Center

2x Mono Pre-Out Subwoofer
Loudspeaker Center and Rear
Video Rec-Out
Video Monitor Out
1x switched mains output

Technical Data

Audio/Video

Channels:
TV standard:
A/D converter: no
D/A converter: no
Output power (at distortion).
Center: 70 W into 4 ohms at 0.7%

Rear: 2x 70 W into 4 Ohm at 0.7% ** Surround Back: n.a. Surround Back: n.a.

Dynamic power (at distortion factor)
Center: 160 W into 4 Ohm

Rear: 2x 160 W into 4 Ohm

Surround Back: n.a.
Total harmonic distortion: 0.06%
Attenuation factor: > 200 into 8 Ohm
Frequency response: 10 - 60,000 Hz
Signal-to-noise ratio: > 95 dB
Stereo channel separation: > 70 dB
Tone control: none
Loudness: no
Subsonic: no
Mute: no
Pure-Direct/Line-Straight: 5.1 input
Time Correction: no
Bass Management: no
Delay adjustment (Lip Sync): no
DSP programs: 7


Sound Formats

Dolby Surround Pro Logic


Special Features

Surround processor with 3-channel power amplifier to supplement existing stereo amplifiers
