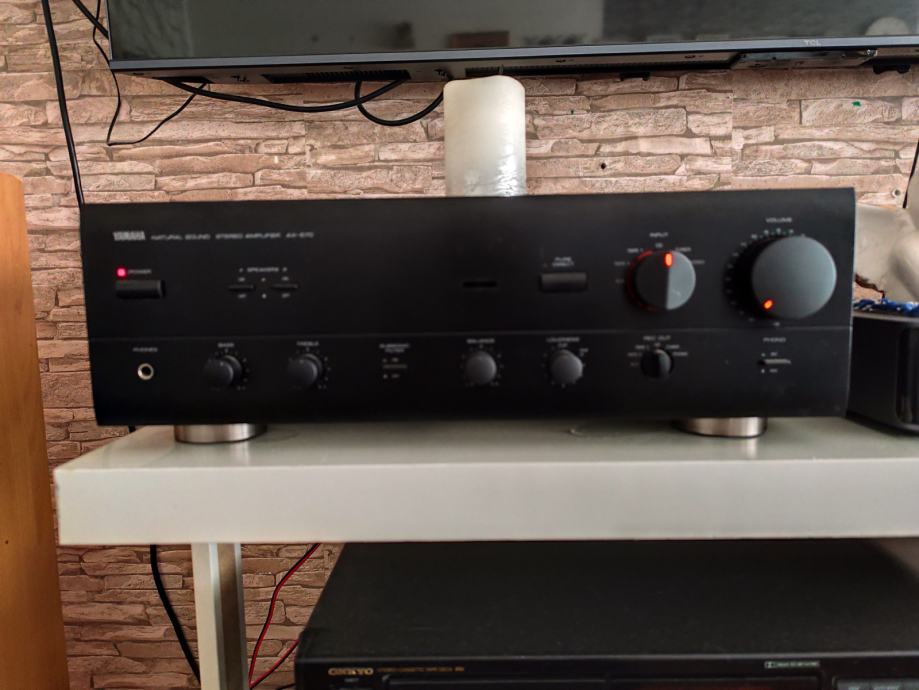

Yamaha AX 570 stereo pojačalo,daljinac,ispitana,super stanje

Došlo vrijeme da se ide po nove igračke pa je s toga moja na bubnju,ipregledana,ispitana,selektor NE ŠTEKA radi savršeno,daljinac,za one kaj se vole cjenkat cjena ja 215,00EU novaca,inaće ja cjena od 200 majmuna fixna tak da mi ne šaljete bezvezne poruke na koje ne mislim odgovoriti,ko je zainteresira šibne kontakt br u inbox ja zovem,za sada je dosta ljudi to skužilo i ak su ozbiljni tak i naprave.Zahvaljujem na razumjevanju

Yamaha AX-570
NamespacesPageDiscussionPage actionsViewView sourceHistory
Data
General

Manufacturer: Yamaha
Model: AX 570
Type: Integrated amplifier
Year of manufacture: 1993 - 1995
Made in: Malaysia
Color: Black, Titanium
Remote control: optional
Power consumption: 210 W
Dimensions: 435 × 150 × 388.5 mm (W×H×D)
Weight: approx. 13 kg
Original price approx.: 900,- DM

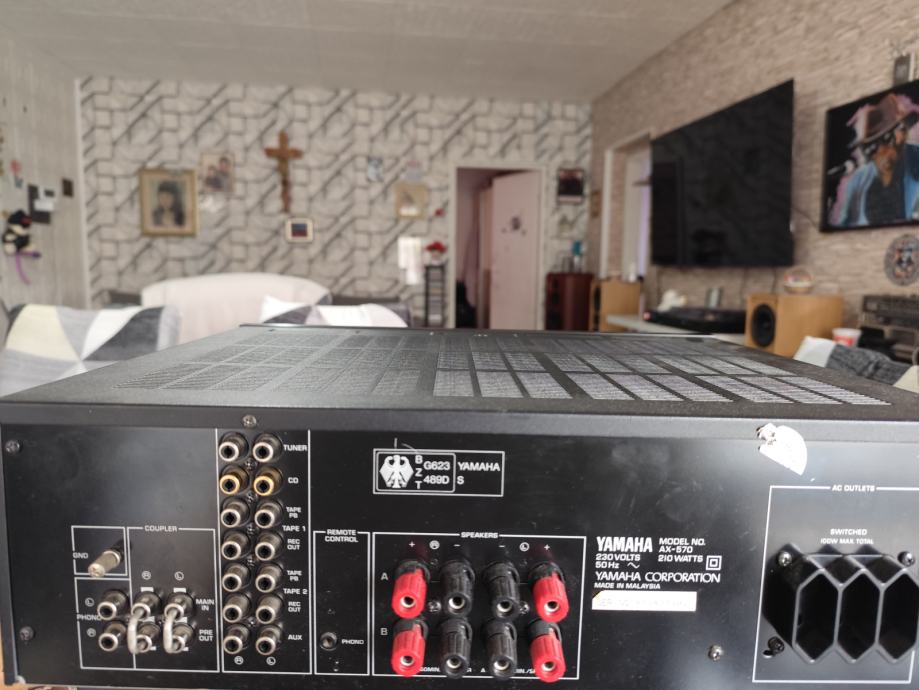

Connections

Number of inputs: 6
Phono switchable
MM 2,5 mV / 47 kOhm
MC 160 µV / 220 Ohm
CD 150 mV / 47 kOhm
Tuner 150 mV / 47 kOhm
Tape 1 + 2 150 mV / 47 kOhm AUX 150 mV / 47 kOhm

Main In 1 V / 10 kOhm
Number of outputs:
Tape 1 + 2
Headphones
2 times 2 loudspeakers

Technical Data

Continuous power
8 Ohm: 2 × 100 W
4 Ohm: 2 × 150 W
2 Ohm: 2 × 200 W
Dynamic power
8 Ohm: 2 × 140 W
4 Ohm: 2 × 220 W
2 Ohm: 2 × 300 W
Total harmonic distortion: at 8 Ohm 0.015 %
Attenuation factor: 320
Frequency response:
20-20,000 Hz at 100 W
10-50,000 Hz at 50 W

Signal-to-noise ratio:
Stereo Channel Separation:
Tone control:
Bass: ±10 dB at 20 Hz
Treble: ±10 dB at 20 kHz

Loudness: -30 dB at 1 kHz, stepless loudness, natural sound
High Filter: No
Low Filter (Subsonic): -18 dB / oct at 15 Hz
Mute: 2 speaker pairs on / off
Direct/Line-Straight: yes

Special Features

Eight power transistors
Separable pre- and power amplifier
Motor-driven controls for source and volume
Gold-plated CD connectors

Illuminated dots for power, source and volume
Rec Out selector switch
Symmetrical circuit board design
