Vtl TL 6.5
- Cijena
- 7.000 €
Šifra oglasa: 42583533
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Vrbik
- Stanje
- rabljeno
Opis oglasa

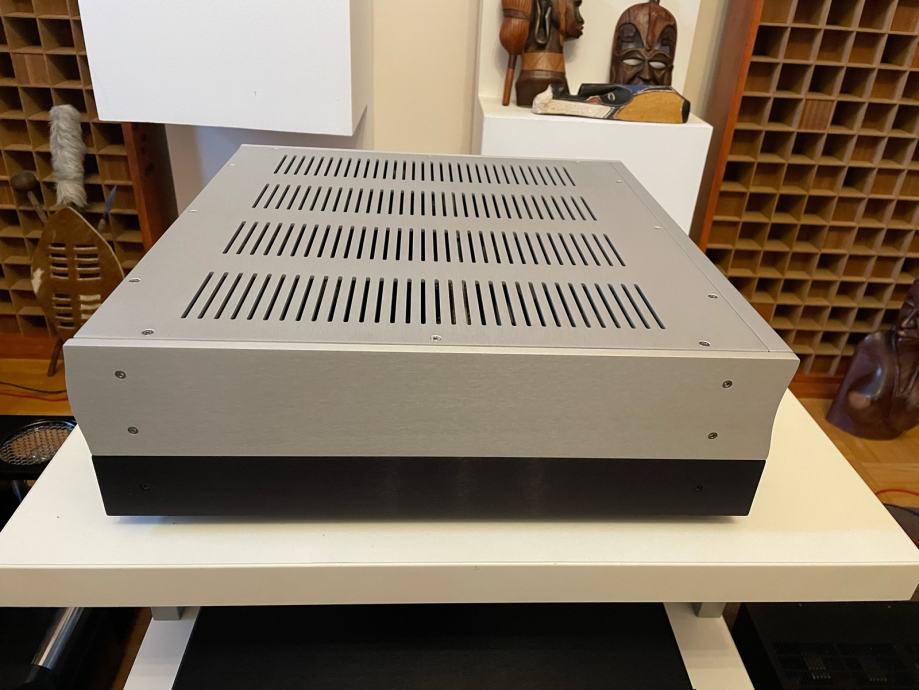

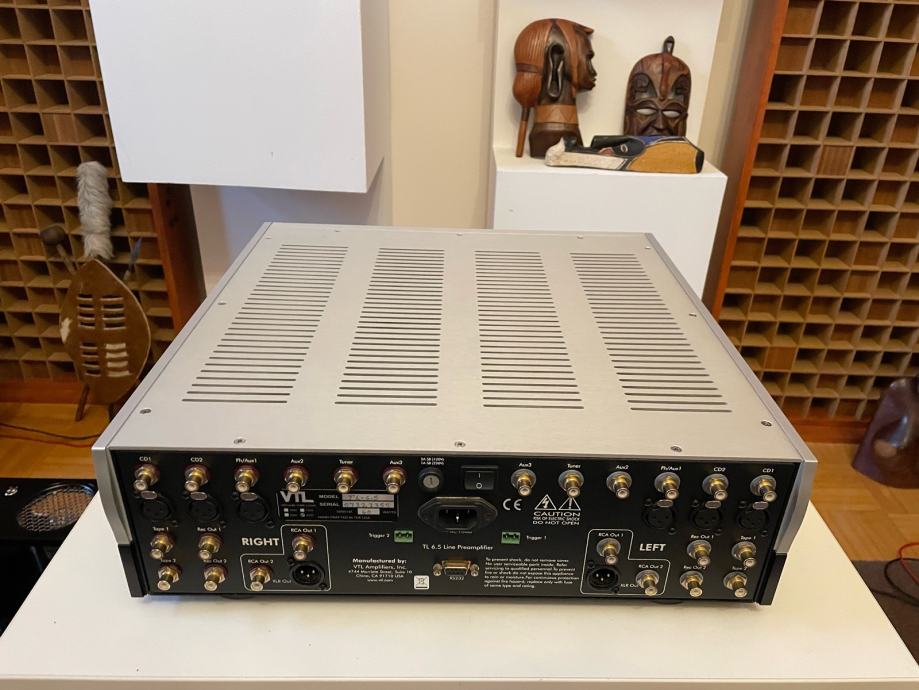

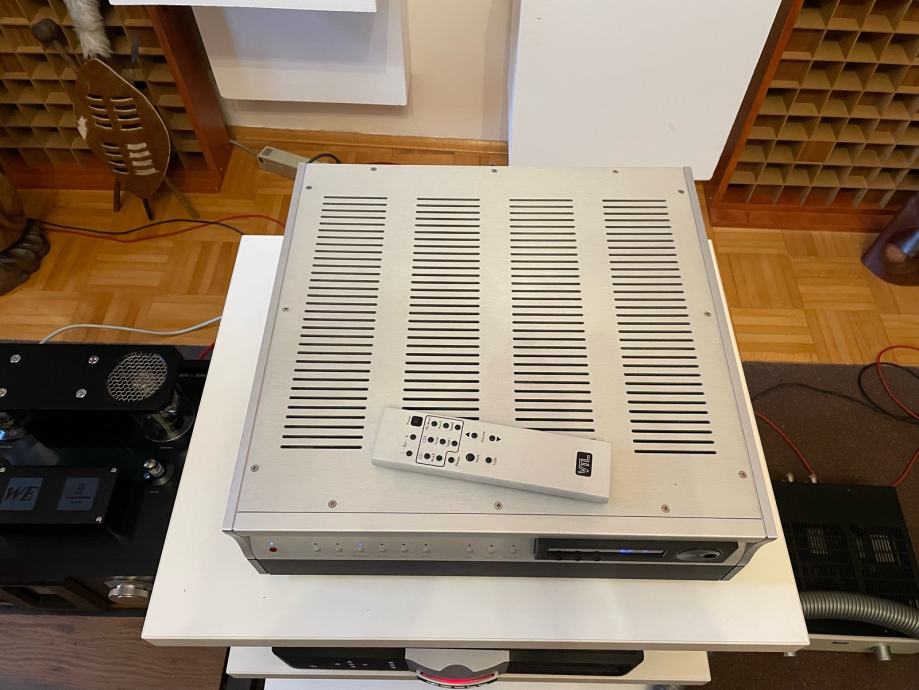

TL-6.5 Series Signature Preamplifier
Specifications:
Tubed, remote-controlled line preamplifier with MOSFET output stage. Tube complement: Two 12AU7. Inputs: 3 pairs balanced (XLR), 3 pairs single-ended (RCA), 2 pairs single-ended tape. Outputs: 1 pair balanced/XLR, 2 pairs single-ended RCA, 2 pairs single-ended RCA buffered tape. Voltage gain: 14dB to single-ended RCA outputs, 20dB to XLR outputs. Input impedance: 50k ohms (20k ohms minimum). Output impedance: 25 ohms (maximum 195 ohms at 10Hz). Polarity: non-inverting at all outputs. Frequency response: 1Hz–200kHz, +0/–1dB (20Hz–100kHz into 600 ohms with 20' of 900pF interconnect). Maximum output: 30V, 10Hz–200kHz, into 600 ohms at 1% THD. Channel separation: >100dB at 1kHz, >80dB at 20kHz. Signal/noise: not given. Power consumption: 150W.
Dimensions: 445 mm W 153 mm H by 445 mm D. Shipping weight: 25 kg.
Specifications:
Tubed, remote-controlled line preamplifier with MOSFET output stage. Tube complement: Two 12AU7. Inputs: 3 pairs balanced (XLR), 3 pairs single-ended (RCA), 2 pairs single-ended tape. Outputs: 1 pair balanced/XLR, 2 pairs single-ended RCA, 2 pairs single-ended RCA buffered tape. Voltage gain: 14dB to single-ended RCA outputs, 20dB to XLR outputs. Input impedance: 50k ohms (20k ohms minimum). Output impedance: 25 ohms (maximum 195 ohms at 10Hz). Polarity: non-inverting at all outputs. Frequency response: 1Hz–200kHz, +0/–1dB (20Hz–100kHz into 600 ohms with 20' of 900pF interconnect). Maximum output: 30V, 10Hz–200kHz, into 600 ohms at 1% THD. Channel separation: >100dB at 1kHz, >80dB at 20kHz. Signal/noise: not given. Power consumption: 150W.
Dimensions: 445 mm W 153 mm H by 445 mm D. Shipping weight: 25 kg.
