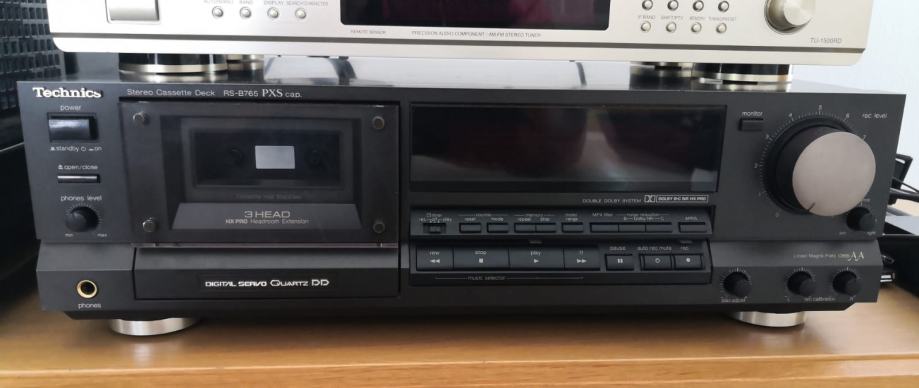

Technics RS-B 765 kazetofon

Technics RS-B 765 kazetofon

Očuvano 9/10,
servisiran,
ispravan



Data
General

Manufacturer: Technics
Model: RS-B765
Type: Three-head stereo cassette deck with rear band control
Years of manufacture: 1990 - 1991
Manufactured in: Osaka, Japan
Color: black
Remote control: no
Power consumption: 21 W
Dimensions: Width 430 mm, Height 135 mm, Depth 290 mm.
Weight: 5.30 kg


Connections

Number of inputs: 1
LineIn (2xCinch) 60 mV/47 kOhm

Number of outputs: 2
Headphones (6.3mm jack) 125 mV/8 Ohm (8 Ohm ~ 600 Ohm)
LineOut (2xCinch) 400 mV/800 Ohm


Technical Data

Tone heads:3 - 1 hard permalloy recording head, 1 hard permalloy playback head, 1 ferrite double gap erasing head.
Motors:3 - 1 quartz direct-drive motor for the sound shaft, 1 DC motor for the winding drive, 1 DC motor for opening and closing the cassette compartment.
Synchronous fluctuations: 0.05% (WRMS), 0.14% (DIN)
Tape types: FE,CrO2, pure iron tape
Frequency response:
FE band: 30 Hz ~ 17 kHz (+/- 3 dB), 20 Hz ~ 18 kHz (DIN).
CrO2: 30 Hz ~ 18 kHz (+/- 3 dB), 20 Hz ~ 19 kHz (DIN)
Metal: 30 Hz ~ 19 kHz (+/- 3 dB), 20 Hz ~ 20 kHz (DIN)
Distortion factor:
Signal-to-noise ratio: (signal level = full scale; CrO2 band).
with Dolby C noise reduction: 74 dB (CCIR)
with Dolby B noise reduction: 66 dB (CCIR)
without noise reduction: 57 dB (A-weighted)
Auto Reverse: no
Title search: yes
Dolby: Dolby B and Dolby C
MPX filter: yes
Faders: no
Pitch control: no
CD direct recording: no

Special Features

Front loader with three heads and rear belt control
Autostop at the end of the belt
APRS, hold pick level during
