STUDIO 362 limited

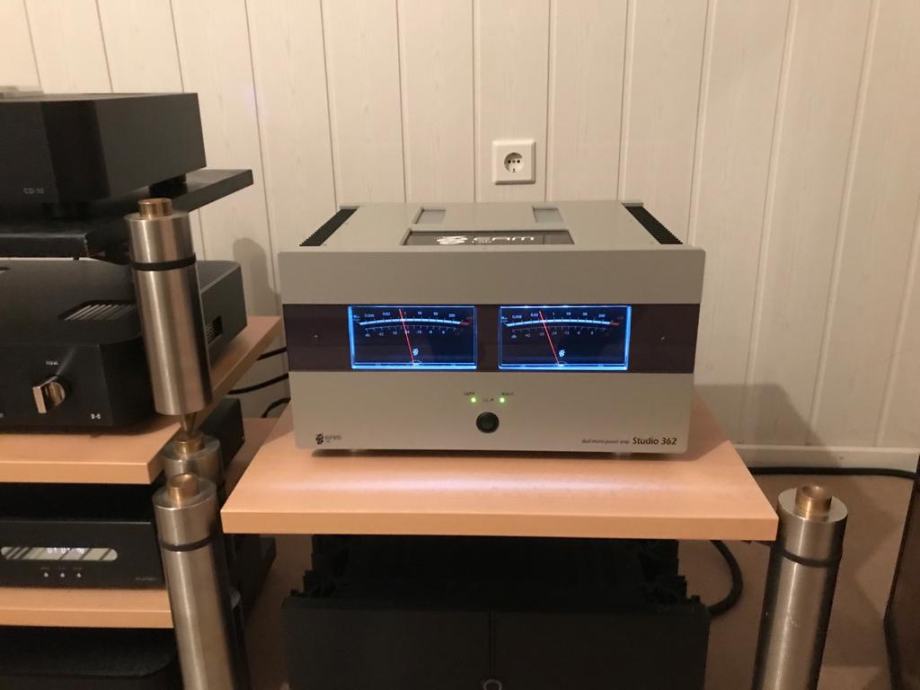

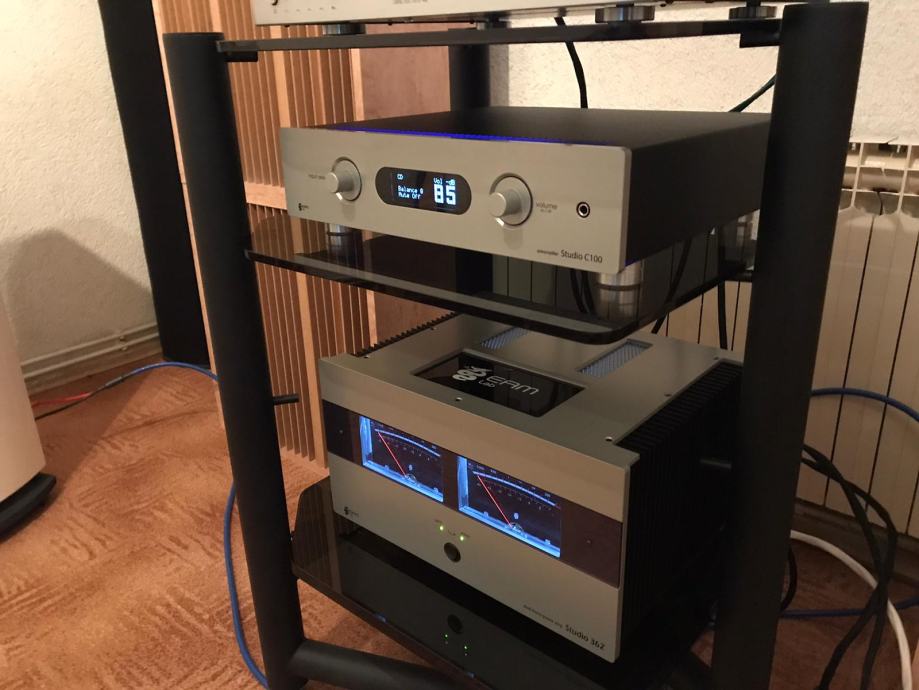

This compact stereo amplifier, using 6 pairs per channel of the BJT MJL3281 / MJL1302 transistor, delivers 230 watts rms per channel and offers a full measure of "EAMLAB sound" at a realistic price. Using the powerful power supply that is the basis of EAMLAB projects, the STUDIO 362 models are capable of delivering extremely clean power combined with exceptional dynamics.
These robust amplifiers are capable of delivering exceptionally wide sound reproduction from any satellite, mini-monitor or large floor-standing system.
In the Limited version we have implemented a greater filtering capacity in the power supply stage with home-made capacitors designed on specifics and built in Italy, a very low induction transformer, less than 0.9 tesla, to further minimize its noise, rhodium-plated WBT connectors and a chassi completely in aluminum for greater deafness to vibrations
moreover, the input stages also use more selected components than the classic version and the load resistors on the transitor emitters are of the audio quality grade type.

SPECIFIKACIJE:
Amplificatore dual mono operante in classe A fino a 10 Watt
• Potenza RMS per canale 230 W @ 8 ohm , 400 W @ 4 ohm , 600 @ 2 ohm
• Impedenza ingresso : 47 Kohm via XLR , 47 Kohm via RCA
• Slew/rate 35 V/uS
• THD 0.003% a piena potenza su 8 Ohm
• DF 300 su 8 ohm a 50hz
• Sensibilità 1.4 Vrms per piena potenza
• Risposta in frequenza 20hz – 28Khz +/- 0.05 db / 5hz – 100Khz +/- 3db
• THD vs FR 0.003% @ 1Khz
• Input CMRR > 80 db
• Rapporto segnale rumore >110 db
• Dimensioni 33 x 42 x 21 cm. ( P x L x H )
• Peso 30 kg

CIJENA: 18.750 HRK
*Mogućnost zamjene za jeftiniju komponentu*
