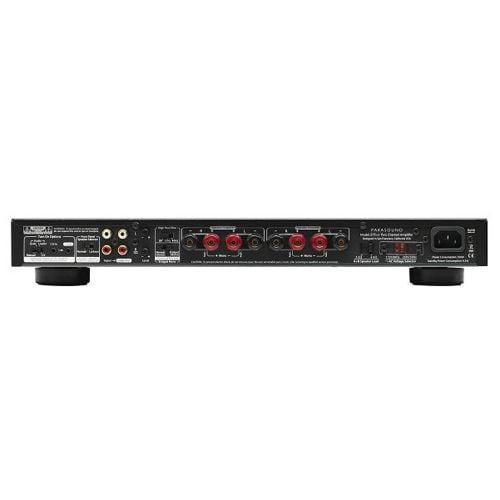

Stereo pojačalo PARASOUND 275 V2

2-kanalno power pojačalo, snaga 90 watts x 2 (8 ohma), 150 watts x 2 (4,2 ohma), bridgeg 200W mono, kapacitet struje 20 amps vršno po kanalu, frekvencijski odziv 20 Hz - 50 kHz.

Specifikacije:

Power Output - (RMS power, 20 Hz - 20 kHz)
All Channels Driven
90 watts x 2, 8?
150 watts x 2, 4?
150 watts x 2, 2? (Load switch set to 2-3?)

Bridged Mono
200 watts x 1, 8?
200 watts x 1, 4? (Load switch set to 2-3?)

Current Capacity
20 amps peak per channel

Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt

Dynamic Headroom - 1.3 dB

Total Harmonic Distortion
0.35% at full rated output
0.025% at average listening levels

IM Distortion - 0.05 %

Transient IM Distortion - Not measurable

S/N Ratio
110 dB at rated output, IHF A-weighted
103 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted

Input Impedance - 33 k ?

Input Sensitivity : 800 mV for full rated output (28dB)

Inter-Channel Crosstalk
80 dB @1 kHz, 72 dB @10 kHz, 65 dB @ 20kHz

Damping Factor - Over 150 at 20Hz

12V Trigger Turn On - DC 9 - 12V, 15 mA

Audio Turn On
Quieter: 1 mV
Louder: 6 mV

AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
25 watts Idle (no audio)
350 watts full output

Dimensions
17-1/4" Wide
16" Deep, with cables connected
2-1/2" High with feet, 1-3/4" panel only (1U)
(437 x 406 x 63mm, 44.1 mm panel only)

Net Weight - 20 lbs (9.1 kg)

Rack Mount Accessory
May be Purchased Separately
RMK11

Više o proizvodu na www.parasound.com
