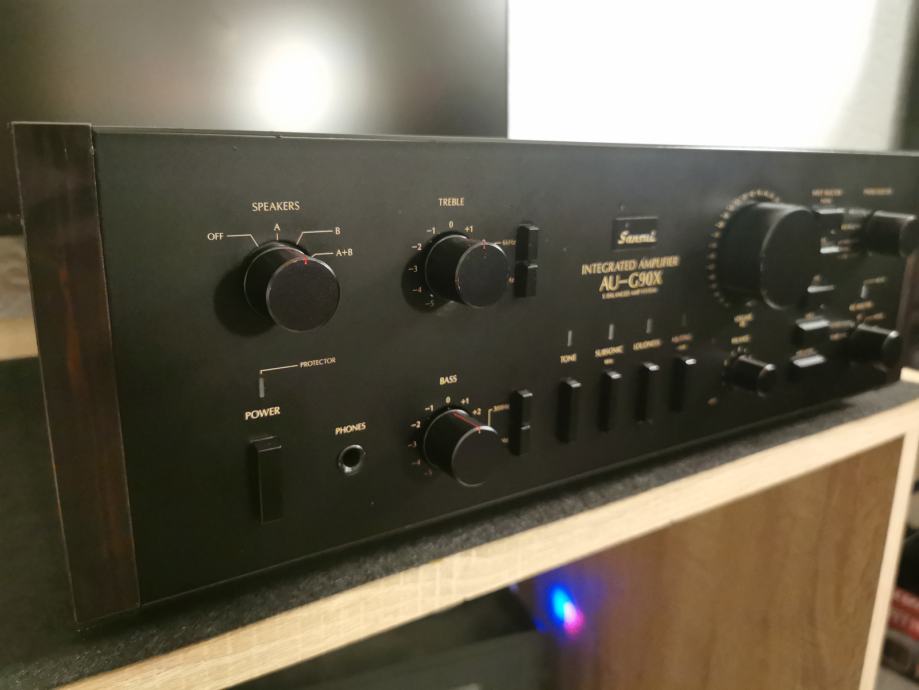

Sansui AU-G90X

očuvan ispravan
proba i preuzimanje Krško
dogovor oko dostave Zaprešič Samobor Jankomir-King Cross
cijena sa dostavom 950€

mobi: 00386 40 528 536

General

Manufacturer: Sansui
Model: AU-G 90 X
Type: Integrated amplifier
Years of manufacture: 1984 - 1986
Made in: Japan
Color: Black
Remote control:
Power consumption: 700 W max.
Dimensions: 466 x 161 x 431 mm (WxHxD)
Weight: 17 kg
Original price approx.: 1'700 DM


Connections

Inputs:
Phono 1, 2 MM: 2.5 mV, 47 kOhm, 300 mV max.
Phono MC Low: 0.07 mV, 3.2 Ohm, 20 mV max.
Phono MC High: 0.25 mV, 40 Ohm, 20 mv max.
Tuner: 150 mV, 47 kOhm
CD: 150 mV, 47 kOhm
Aux: 150 mV, 47 kOhm
Tape Play 1, 2: 150 mV, 47 kOhm
Outputs:
Tape Rec:
Pre Out:
Headphones
2 pairs of speakers


Technical Data

Continuous power (at distortion)
8 Ohm: 130 W (per channel, 10 - 20,000 Hz, both channels operated)
4 Ohm: 150 W
Dynamic power
8 Ohm: 200 W
4 Ohm: 310 W
Total harmonic distortion: 0.003 % at the above continuous output power
Attenuation factor:
Frequency response: 0 - 300,000 Hz (+0, - 3.0 dB).
Signal-to-noise ratio:
Phono: 79 dB

High level: 110 dB

Tone control

Bass: yes, ± 10 dB, 50 Hz treble: yes, ± 10 dB, 10 kHz

Loudness: yes
High Filter:
Low Filter (Subsonic): -3 dB at 16 Hz (6 dB/octave).
Mute: - 20 dB

Special Features

Phono MM/MC
Recording source selector switch
Cold-device socket
