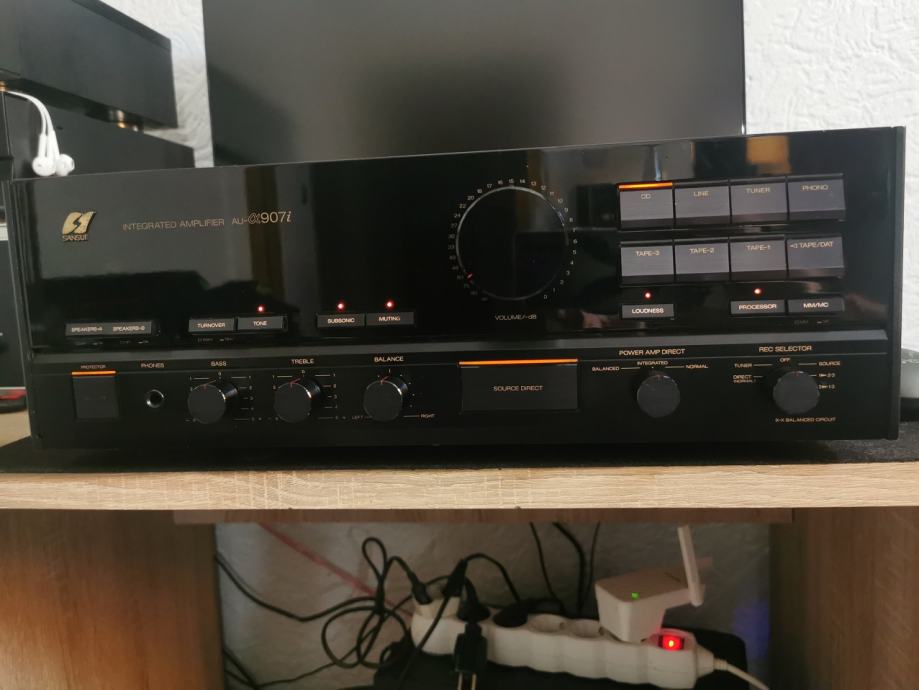

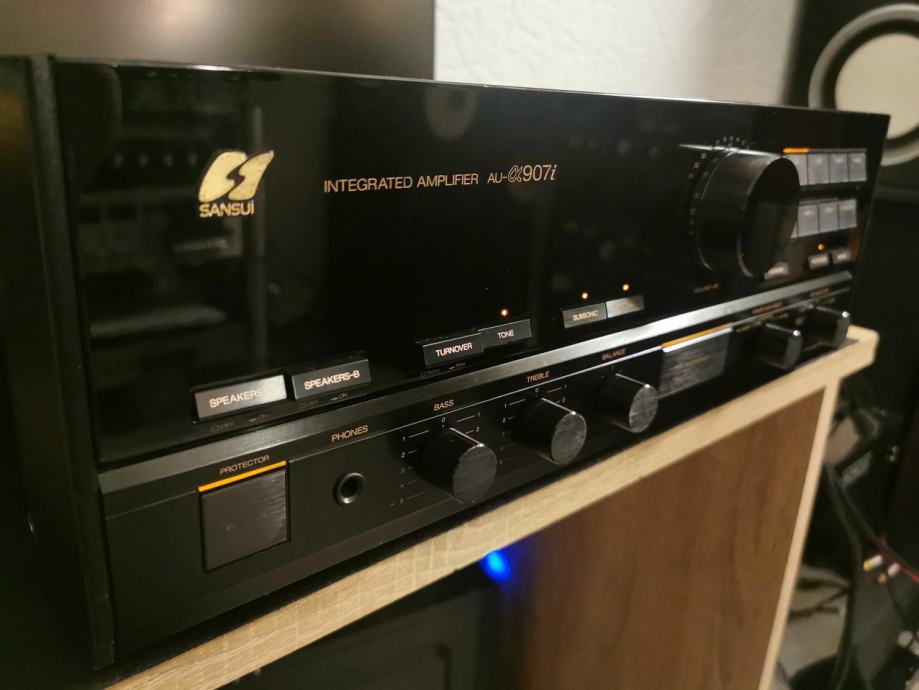

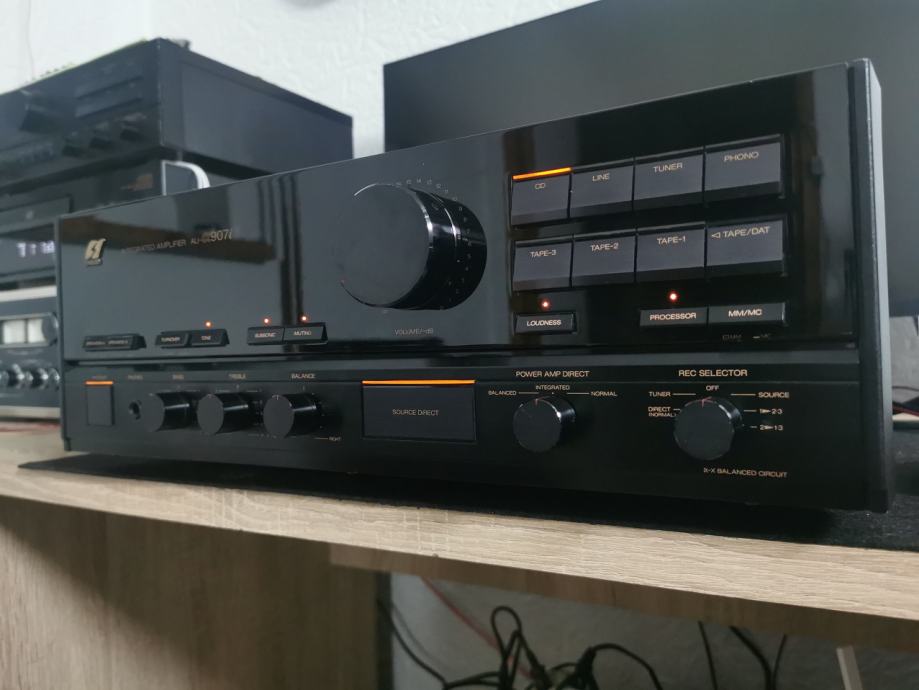

Sansui AU-Alpha 907i

odlično stanje

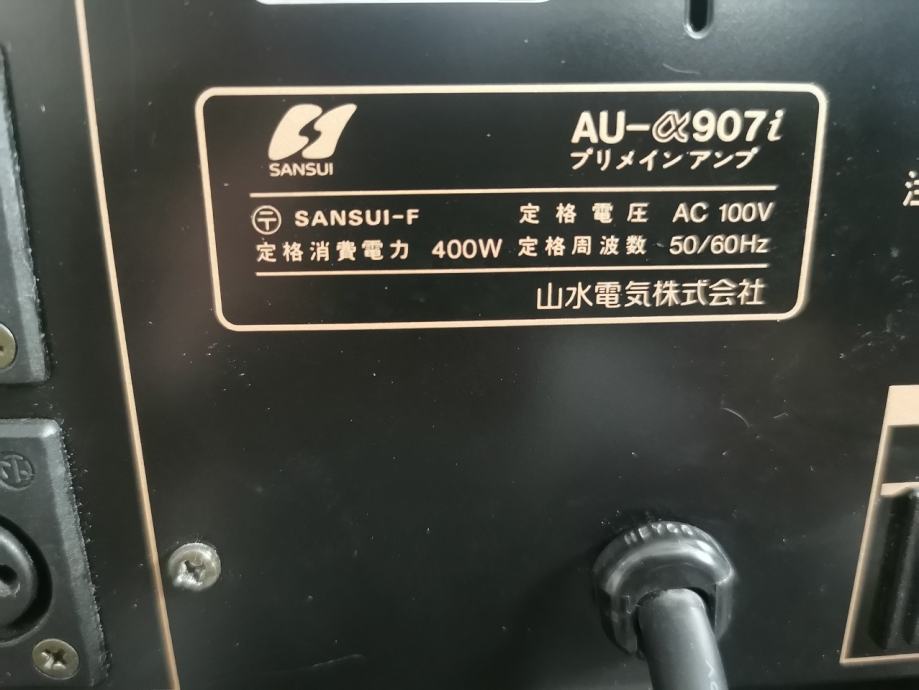

napajanje AC 100V
proba i preuzimanje Krško
dogovor oko dostave Zaprešič Samobor Jankomir-King Cross
cijena sa dostavom 1350€

mobi: 00386 40 528 536

General

Manufacturer: Sansui
Model: AU-α 907 i
Type: Integrated amplifier
Years of manufacture: 1987 - 1990
Color: Black
Remote control: no
Power consumption: 400 W
Dimensions: 448 x 160 x 441 (WxHxD)
Weight: 28 kg
Original price approx.: 198'000 Yen (Japan, 1987), corresponds to about 3'000 DM

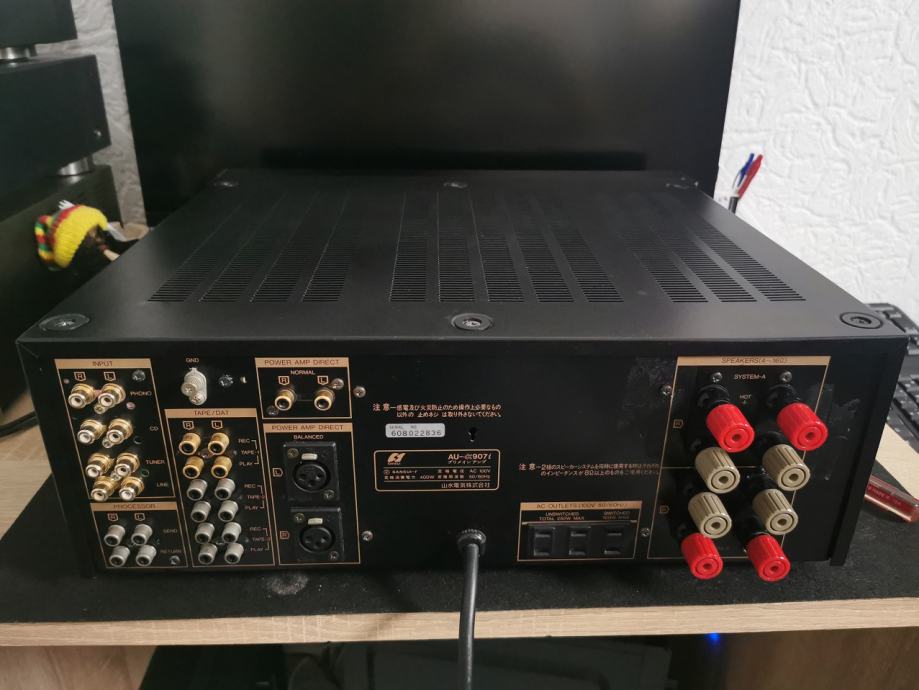

Connections

Number of inputs:
Phono MM: 2 mV, 47 kOhm.
Phono MC: 0,3 mV, 100 Ohm
CD: 150 mV, 47 kOhm
Tuner: 150 mV, 47 kOhm
Line: 150 mV, 47 kOhm
Tape Play 1, 2, 3: 150 mV, 47 kOhm
DAT Play 1, 2, 3: 150 mV, 47 kOhm
Processor In: 150 mV, 47 kOhm
Main In:
Analog: 1 V, 3 kOhm
Digital XLR: 1 V, 3 kOhm
Number of outputs:
Tape Rec 1, 2: 100 mV, 47 kOhm
DAT Rec 1, 2, 3: 100 mV, 47 kOhm
Processor Out: 150 mV, 47 kOhm
Headphones:
2 pairs of speakers


Technical Data

Continuous power (at distortion factor)
8 Ohm: 2 x 160 W (RMS, 20 - 20'000 Hz, 0,003 %)
6 Ohm: 2 x 190 W
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: < 0.003 %
Attenuation factor: 150 at 8 Ohm
Frequency response:
Phono RIAA: 20 - 20'000 Hz, ± 0.2 dB.
High level: DC - 300'000 Hz, + 0 dB, - 3 dB
Signal-to-noise ratio:
Phono: MM 90 dB

Phono: MC 75 dB

High level: 110 dB
Tone control:
Bass: ± 5 dB at 50 Hz
Crossover frequencies: 75 Hz, 150 Hz

Treble: ± 5 dB at 15 kHz

Loudness: + 6 dB at 50 Hz, + 4 dB at 10 kHz
High Filter:
Low Filter (Subsonic): - 3 dB at 16 Hz, 6 dB / octave.

Mute: - 20 dB

Direct/Line-Straight: yes


Special Features

Double-Mono Construction
