Pascall Icepower S-pro2
- Cijena
- 170 €
Šifra oglasa: 47246524
Osnovne informacije
- Lokacija
- Slovenija
- Stanje
- novo
Opis oglasa

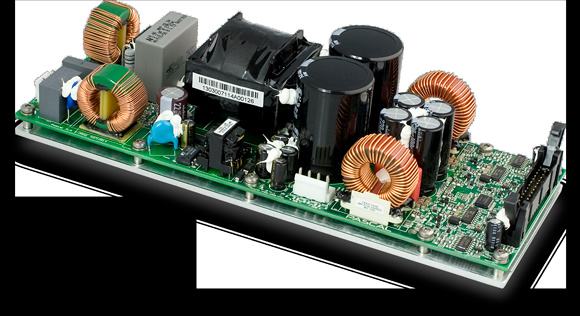

Novi modul izlaznog pojačala,komplet.
S-PRO2 Specifications
Power Ratings (RMS @ 1% THD @ 230Vac) 8 Ω 4 Ω 2.7 Ω 2 Ω
Output power per channel 2 x 250 W 2 x 500 W 2 x 725 W* Load stable
Output power bridge mode 1000 W 1000 W** Load stable Load stable
>
Output Circuitry UMAC™ Class D - full bandwith PWM modulator with ultra low distortion
Output Voltage 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded)
Amplifier Gain 26 dB
Signal To Noise-Ratio > 120 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical) < 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power
Damping Factor > 1000 (8 Ω load, 1 kHz and below)
Protection Circuits Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Readouts for DSP/Network Protect/Disable (mute), Temperature, Clip (for each channel)
Power Supply UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operation Voltage Universal Mains, 85-265V
Aux. Power for DSP ±15 V (100 mA), +7.5 V (500 mA)
Standby Consumption < 0.35 W (Green Energy Star & ErP 1275/2008/EC compliant)
Dimensions 52 x 80 x 215 mm / 2.0 x 3.1 x 8.5 in
Weight
S-PRO2 Specifications
Power Ratings (RMS @ 1% THD @ 230Vac) 8 Ω 4 Ω 2.7 Ω 2 Ω
Output power per channel 2 x 250 W 2 x 500 W 2 x 725 W* Load stable
Output power bridge mode 1000 W 1000 W** Load stable Load stable
>
Output Circuitry UMAC™ Class D - full bandwith PWM modulator with ultra low distortion
Output Voltage 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded)
Amplifier Gain 26 dB
Signal To Noise-Ratio > 120 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical) < 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power
Damping Factor > 1000 (8 Ω load, 1 kHz and below)
Protection Circuits Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Readouts for DSP/Network Protect/Disable (mute), Temperature, Clip (for each channel)
Power Supply UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operation Voltage Universal Mains, 85-265V
Aux. Power for DSP ±15 V (100 mA), +7.5 V (500 mA)
Standby Consumption < 0.35 W (Green Energy Star & ErP 1275/2008/EC compliant)
Dimensions 52 x 80 x 215 mm / 2.0 x 3.1 x 8.5 in
Weight
