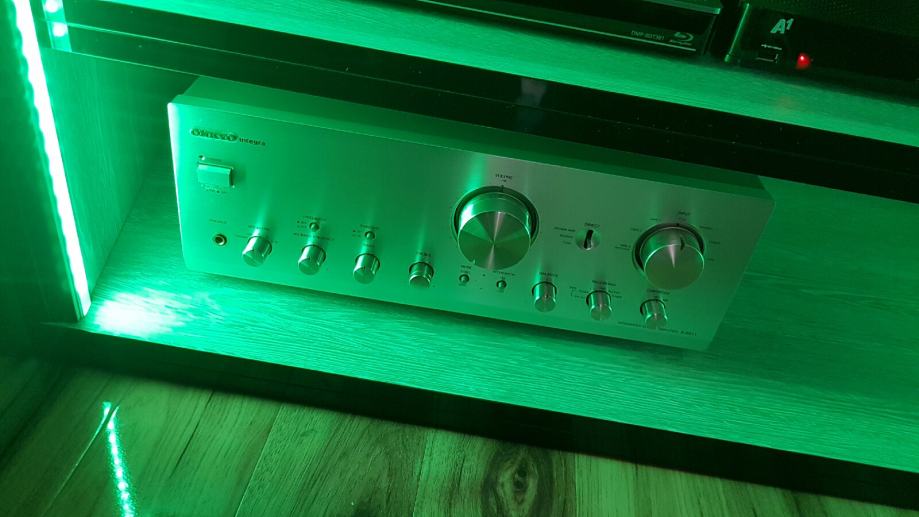

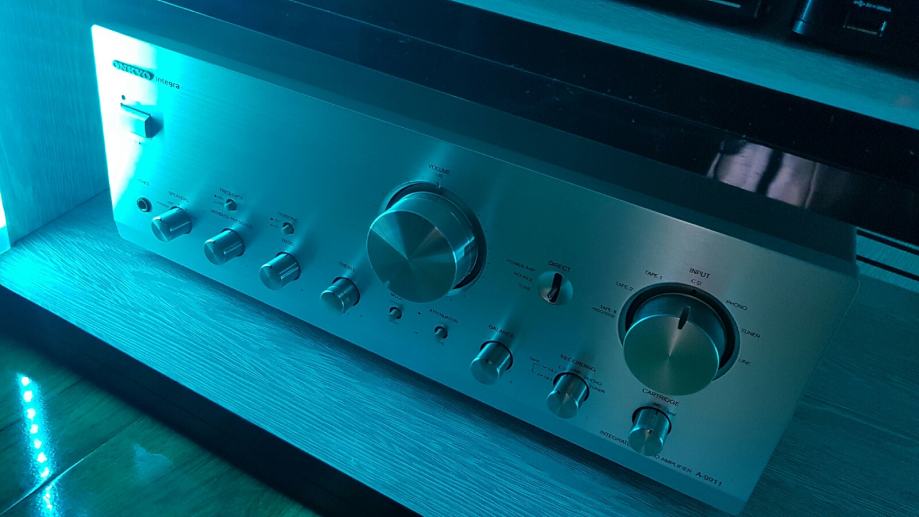

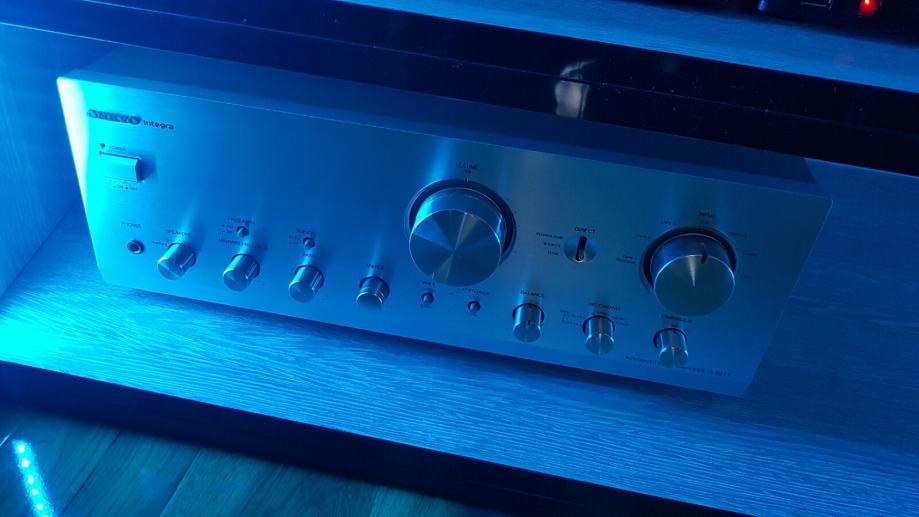

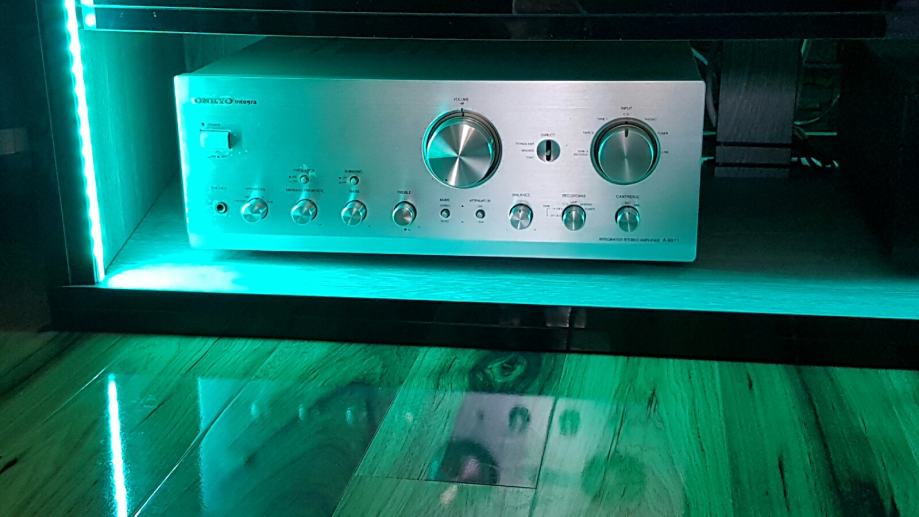

ONKYO Integra a-9911

Prodajem izvrsno integrirano pojačalo poznatog proizvođača ONKYO model Integra a-9911. Pojačalo je u potpunosti i maksimalno očuvanom stanju. 10/10. Obzirom da sam prvi vlasnik u (mint stanju). Ima puno snage na raspolaganju, tako da nije upitno pokretanje i većih zvučnika. Po svojoj zvučnoj slici naginje prema audiofilskom zvuku, malo toplijeg i mekšeg karaktera.

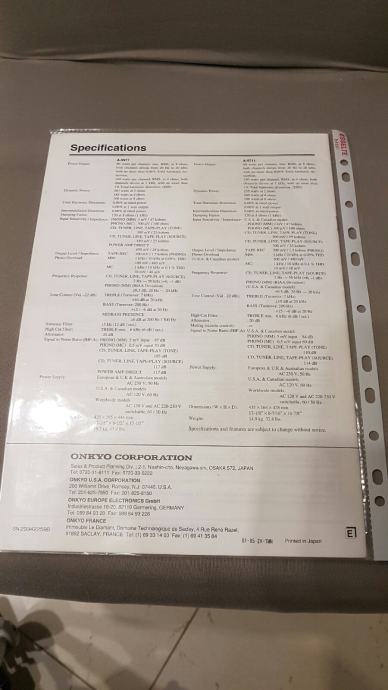

Specifications;

Power output: 2X90 watts per channel min. RMS at 8Ω ohms, both channels driven from 20 Hz to 20 kHz, with no more than 0.06% Total harmonic dirstortion. 2X160 watts per channel, RMS at 4Ω ohms, both channels driven at 1 kHz, with no more than 1% Total harmonic distortion. (DIN)

Dynamic Power:  283 watts at 2Ω ohms
                               185 watts at 4Ω ohms
                               108 watts at 8Ω ohms

Total Harmonic Distortion:

0.06% at rated power

0.06% at 1 watt output

Intermodulation Distortio: 0.06% at rated power

Damping Factor: 130 at 8Ω (1 KHz)

Input Sensitivity / Impedance:

PHONO (MM) 3mV / 47 kohms
PHONO (MC) 300 uV 100 ohms

CD, TUNER, LINE, TAPE- PLAY (TONE)
300 mV 25 kohms

CD, TUNER, LINE, TAPE - PLAY (SOURCE)
450 mV 25 kohms

POWER AMP DIRECT 450 mV 25 kohms

Output Level / Impedance:
TAPE-REC 300 mV / 1.5 kohms (PHONO)

Phono Overload:
MM: 1kHz / 10 kHz at 0.05% THD
         100 mV / 480 mV

MC: 1kHz / 10 kHz at 0.1 % THD
        10 mV / 48 mV

Frequency Response:
CD, TUNER, LINE, TAPE-PLAY (SOURCE)
          2 Hz - 50 kHz (+0, -1 dB)
PHONO (MM) (RIAA Deviation)
          +_03dB, 20 Hz - 20 kHz

Tone Control (Vol -22 dB):

TREBLE (Turnover: 7 kHz) +_10 dB at 20 kHz
BASS     (Turnover: 200 Hz) +15 /-6 dB at 20 Hz
MIDBASS PRESENCE +_6dB at 200 Hz / 300 Hz

Subsonic Filter: 15 Hz (12 dB / oct.)
High Cut Filter: TREBLE min. 6 kHz (6dB / oct.)

Attenuator:  -20dB

Signal to Noise Ratio (IHF-A):
PHONO (MM) 5mV input 87 dB
PHONO (MC) 0.5 mV input 70 bB
CD, TUNER, LINE, TAPE-PLAY (TONE) 105 dB
CD, TUNER, LINE, TAPE-PLAY (SOURCE) 117 d

POWER AMP DIRECT 117 dB

Power Supply: European & U.K & Australian
models AC 230V, 50 Hz

U.S.A. & Canadian models AC 120V, 60 Hz

Worldwide models
AC 120 V and AC 220-230 V
switchable, 60 / 50 Hz

Dimensions ( W X H X D ):
435 X 165 X 444 mm

17-1/8" X 6-1/2" X 17-1/2"

Weight: 19,7 kg, 43.4 lbs.
