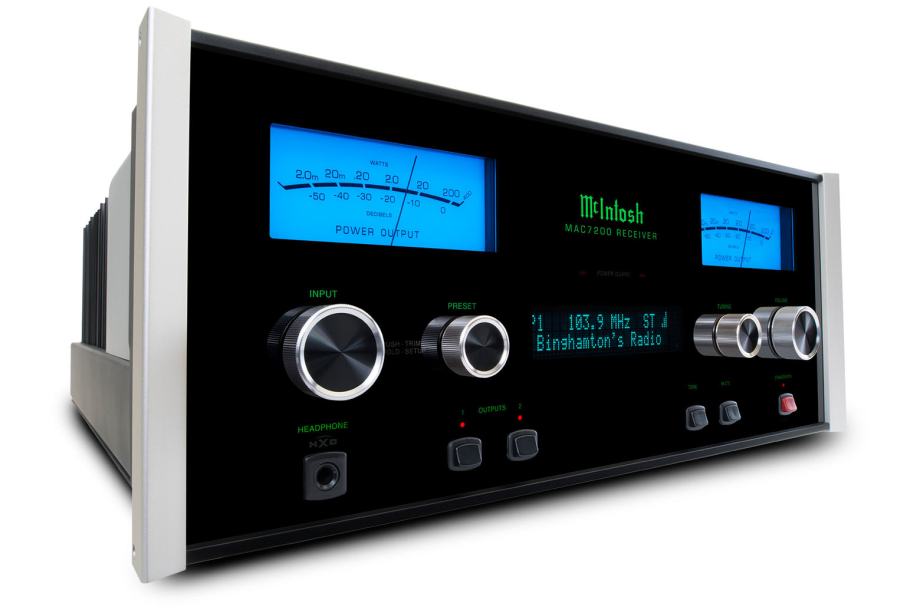

McIntosh MAC 7200

MAC 7200 2-Channel Receiver

Specifications:
ELECTRONIC SPECIFICATIONS
FTC Power Output Rating: 200 W.
Power Output per Channel: 200 W into 2, 4, or 8 ohms.
Number of Channels : 2.
Rated Power Band: 20 Hz to 20 kHz.
Total Harmonic Distortion: 0.005%.
Dynamic Headroom: 2 dB.
Frequency Response +0,-0.5dB: 20Hz to 20kHz.
Frequency Response, +0, -3dB : 10Hz to 100kHz.
Sensitivity Phono (Moving Coil): 0.25mV.
Sensitivity Phono (Moving Magnet) : 2.5mV.
Sensitivity High Level (Balanced / Unbalanced): 0.5V/0.25V.
Sensitivity (Power Amp input): 1.4V.
Signal To Noise Ratio (Moving Coil): 80 dB.
Signal To Noise Ratio (Moving Magnet): 82 dB.
Signal To Noise Ratio (High Level): 95dB.
Signal To Noise Ratio (Power Amp input): 113dB.
Input Impedance (Balanced / Unbalanced): 20K/20K.
Damping Factor: >40.
Maximum Output (Balanced / Unbalanced): 8V Unbalanced.

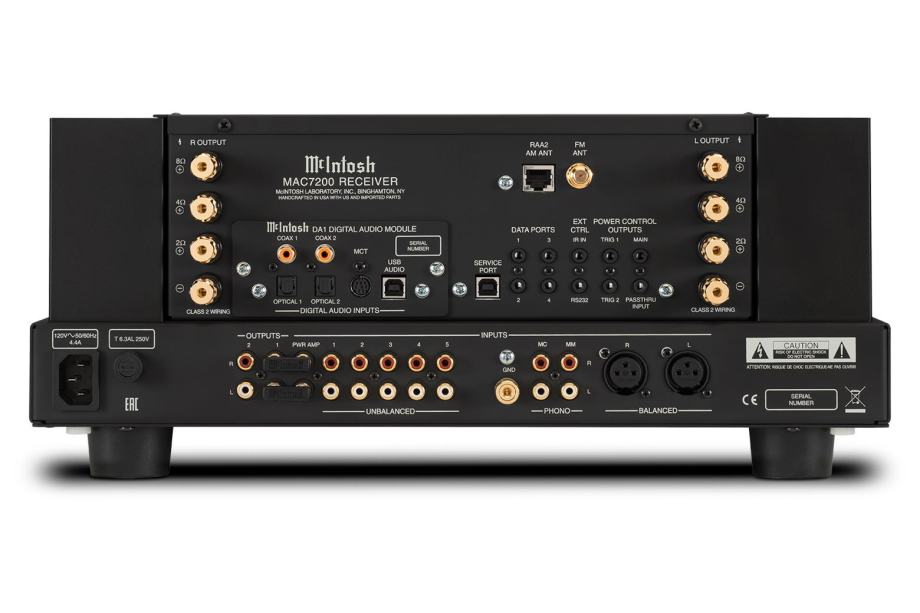

CONNECTIVITY
Balanced Input: 1.
Unbalanced Input: 5.
Phono Input Moving Coil: 1 (adjustable loading)
Phono Input Moving Magnet: 1 (fixed loading).
Upgradeable Digital Audio Module: Yes: DA1
Digital Coaxial Input: 2.
Digital Optical Input. 2.
Digital MCT Input: 1.
Digital USB Input: 1.
Unbalanced Fixed Output: 0.
Unbalanced Variable Output: 2.
Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
AM/FM Tuner option
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type
8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital MCT Input Sample Rate
16-bit/44.1kHz (CD)
DSD64 (SACD)
Digital USB Input Sample Rate
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
FM SPECIFICATIONS
Tuning Range
87.9MHz - 107.9MHz (USA)
87.5MHz - 108.0MHz (Europe)
76MHz - 90MHz (Japan)
Channel Spacing
200kHz (USA)
50kHz (Europe50)
100kHz (Europe100, Japan)
Antenna Input
75 ohms, Type “F” Coax connector
FM ANALOG SPECIFICATIONS
Useable Sensitivity
2.2uV (18.1dBf)
50dB Quieting Sensitivity
1.5uV (14.8dBf)
Signal To Noise Ratio
Mono: 70dB
Stereo: 68dB
Frequency Response
±1dB 20Hz to 15,000Hz
Total Harmonic Distortion
Mono: 0.4%
Stereo: 0.8%
Channel Selectivity
60dB Adjacent Channel
66dB Alternate Channel
Stereo Separation
38dB
AM SPECIFICATIONS
Tuning Range
530kHz - 1720kHz (USA)
522kHz - 1602kHz (Europe)
522kHz - 1611kHz (Japan)
Channel Spacing
10kHz (USA)
9kHz (Europe, Japan)
Antenna Input
Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)
AM ANALOG SPECIFICATIONS
Selectivity
45dB Adjacent Channel
Signal To Noise Ratio
50dB
Frequency Response
0dB, -6dB 50Hz to 3,000Hz
Total Harmonic Distortion
0.5%
Sensitivity
350uV/m
CONTROL
Tone Controls
Bass and Treble
Tone Bypass and Input Assign
Yes
RS232 Control Input
Yes
Power Control Output
1 Main, 2 Trigger
Rear Panel Data Port
4
Rear Panel IR Sensor Input
Yes
Input Level Match
Yes

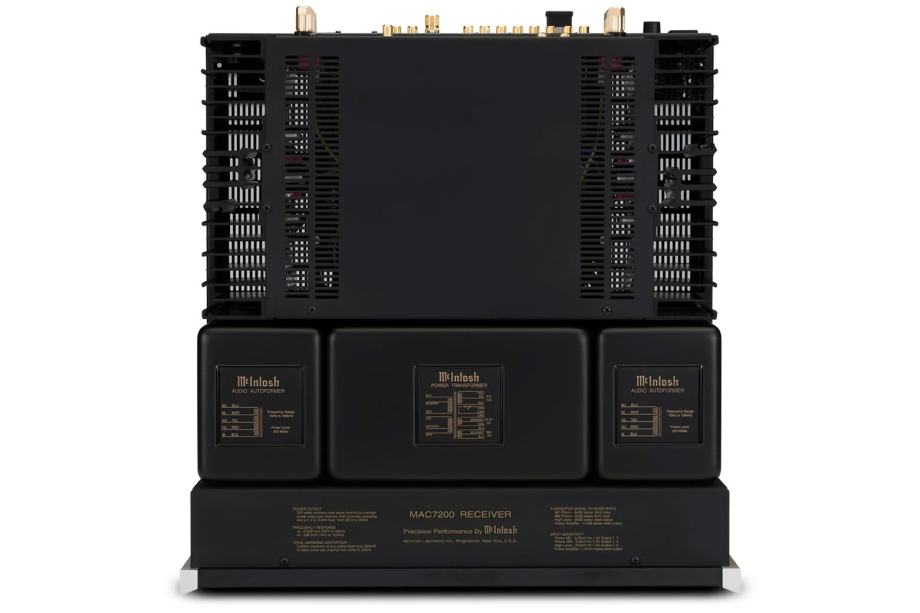

GENERAL SPECIFICATIONS
Vacuum Tube or Solid State
Solid State
Output Type
Autoformer™
Output Meters
Yes
Dual Layer Chassis
Yes
Chassis Finish
Black painted steel
McIntosh Monogrammed Heatsinks™
Yes
Power Requirement
120V 50/60Hz, 4.4 amps
Standby Power Requirement
