Mark Levinson No.585

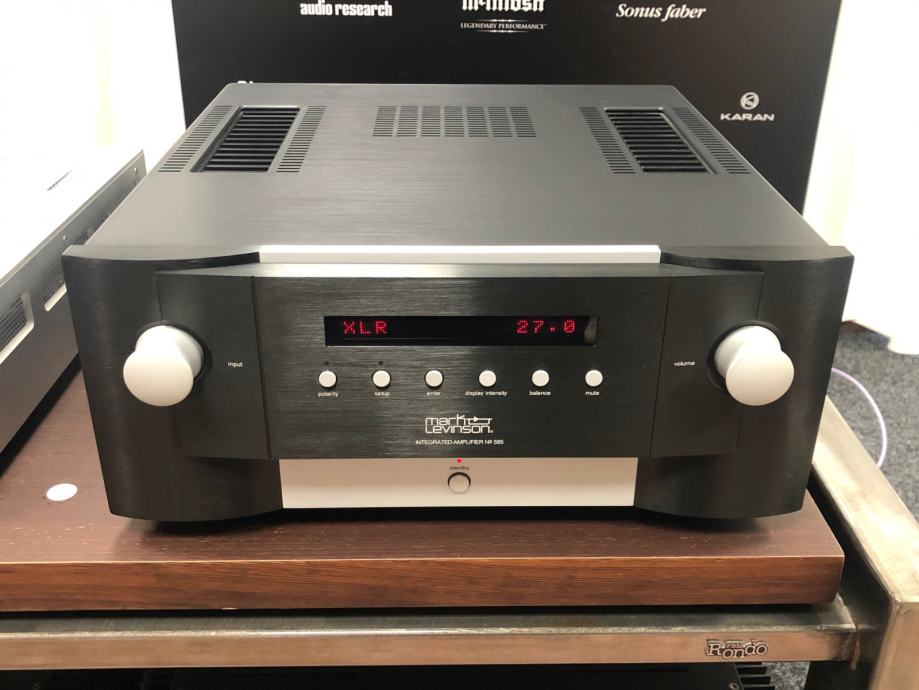

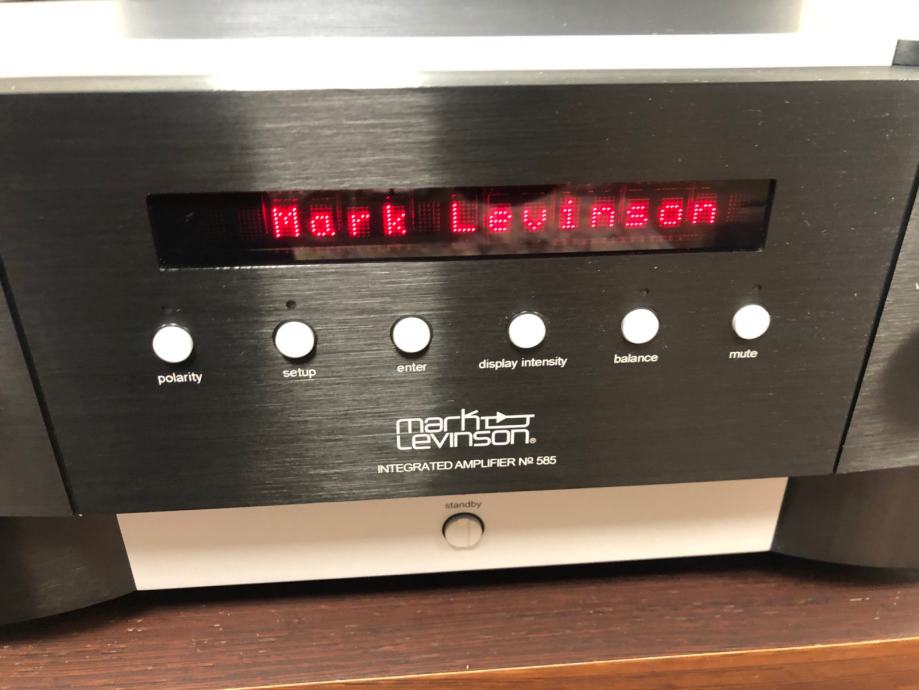

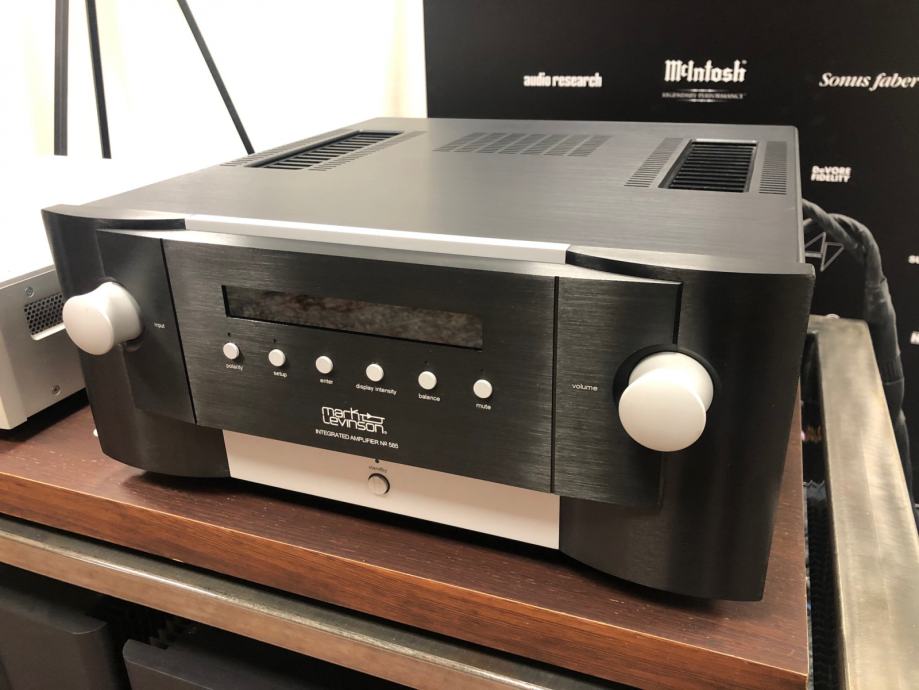

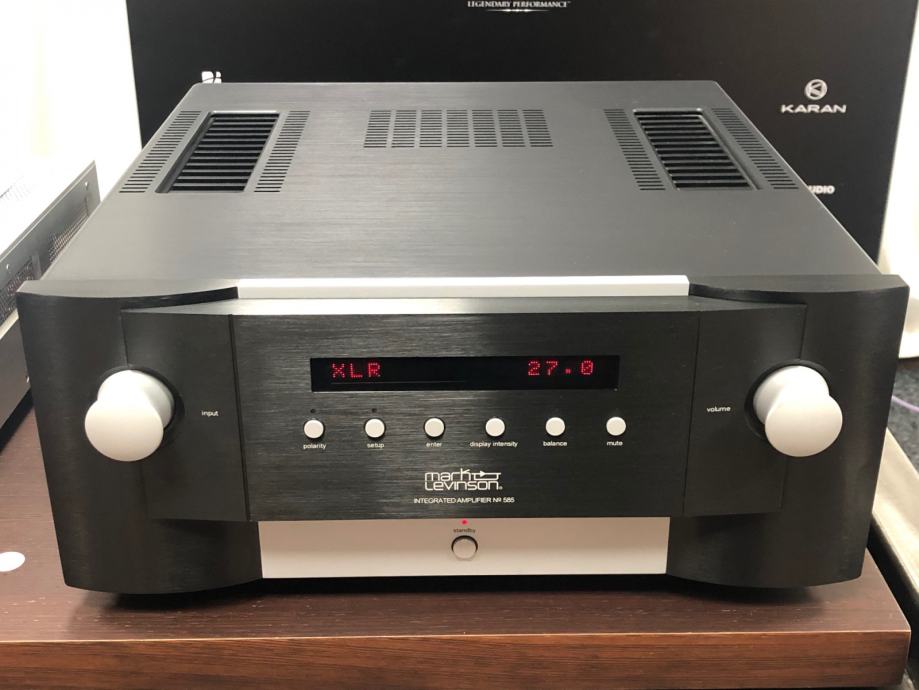

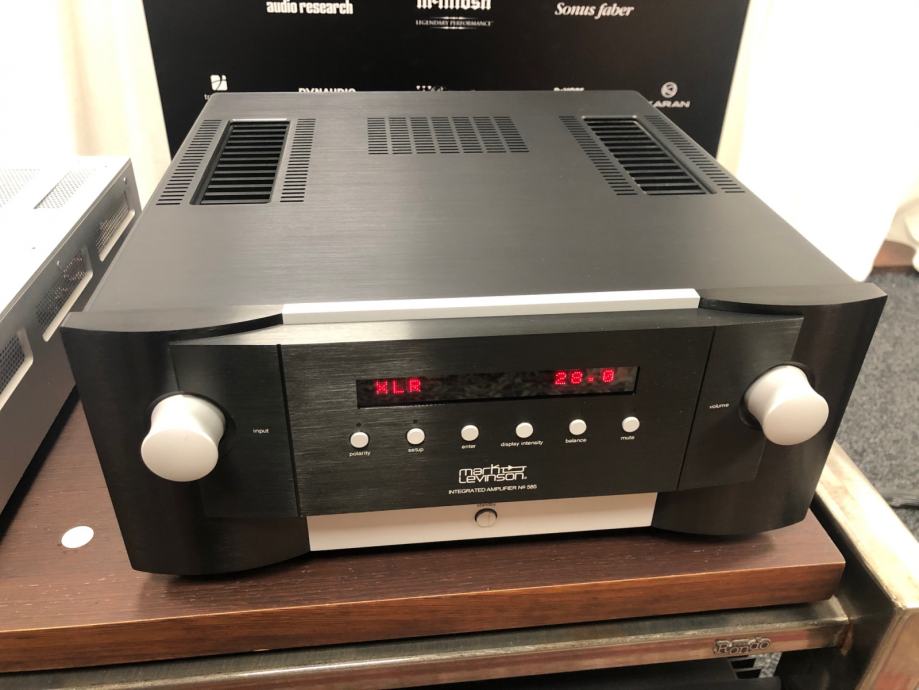

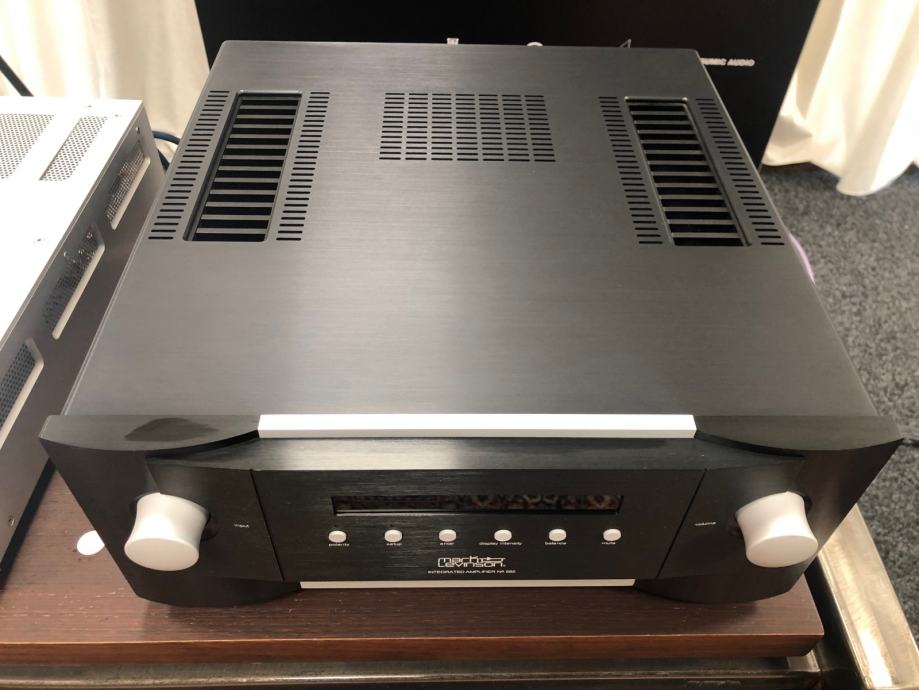

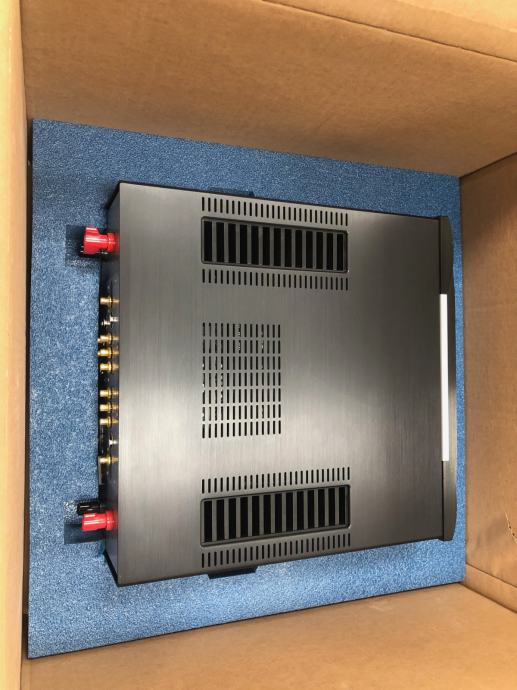

Mark Levinson No.585 integrated amplifier

Specifications:

Solid-state integrated stereo amplifier. Preamplifier section: Analog line-level inputs: 1 pair balanced (XLR), 3 pairs single-ended (RCA) inputs. Analog outputs: 1 pair single-ended (RCA). Input impedance: >45k ohms (RCA, XLR). Input overload: >5.5V RMS (RCA, XLR). Voltage gain, maximum volume setting: 40.7dB. Preamplifier section (digital): Digital audio inputs: 1 balanced AES/EBU (XLR), 2 coaxial S/PDIF (RCA), 2 optical (TosLink), 1 asynchronous (USB-B). Bit depths: up to 32. PCM sampling rates: 32, 44.1, 48, 88.2, 96, 176.4, 192kHz. DSD: Up to DSD256. Amplifier section: Speaker connections: 1 pair banana/spade connectors with hurricane knobs. Output power: 200Wpc into 8 ohms (23dBW), 20Hz–20kHz. THD: 400 at 20kHz into 8 ohms. Mains voltage: 100V, 115V, or 230V AC at 60Hz (set at factory). Power consumption: 1000W maximum (power on) into 8 ohms at rated output. Controller connectors: 1 RS-232 port (RJ-12 connector); 1 IR input (1?8" phone jack); 1 programmable 12V DC trigger output (1?8" phone jack), 100mA maximum; 1 programmable 12V DC trigger input (1?8" phone jack); 1 Ethernet port (RJ-45) connector; 1 USB-A input.
Dimensions: 17.1" (438mm) W by 6.8" (175mm) H without feet or 7.5" (193mm) H with feet by 19.8" (507mm) D. Weight: 71.7 lbs (32.6kg) net, 95.5 lbs (43.4kg) shipping.
Serial number : 1114.
